Overview:

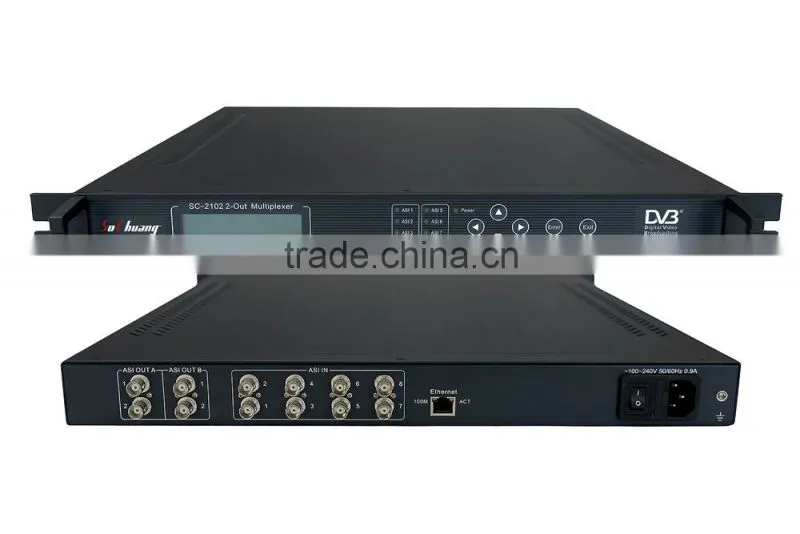

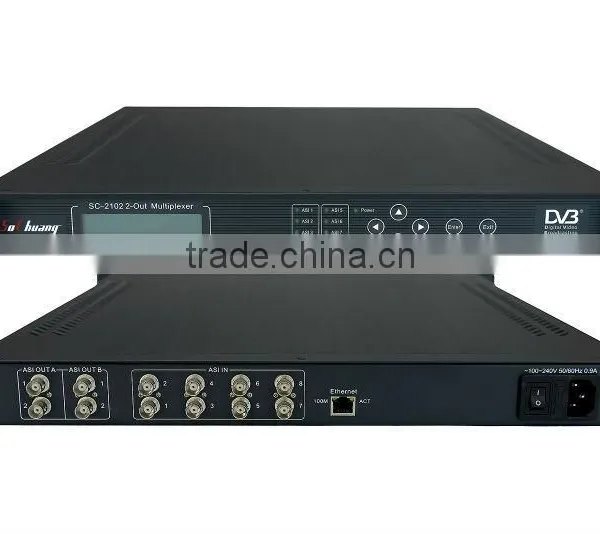

TS multiplexer is a digital broadcasting TV device. It makes multiplexing 8 channel ASI input and output one or two MPTS stream, it also supports PID filter,passthough and supports inserting private IP TS stream.
Features:
. Compliance with ISO13818 and EN300 468 standards;
. Support IP data injection;
. Support program sorting;
. Generate SPI / SI information;
. Support PCR correction and PID auto re-mapping;
. 8M bytes caches, anti-burst stream;
. Support PSI editing;
. Each channel support up to 128 PID;
. Alarm function;
. Support cascading devices;
. LCD display, easy and flexible to operate;
. High reliability design, stability.
Technical Specification:
Input |
ASI |
8 BNC |
|
Packet Format |
188/204,Automatic detection |
||
Re-multiplexing |
MPEG-2 stream re-multiplexing |
||
PID Passthrough | |||
PID Filter | |||
PCR Correction | |||
PSI/SI Edit | |||
Control |
NMS(Ethernet Port,RJ-45), Keyboard+LCD |
||
Backplane Bandwidth |
800mbps |
||
Output |
ASI |
4 BNC (two separate MPTS) |
|
ASI Monitor |
Program quantity, bit-rate, lock status |
||
PID |
PID Range |
0000-1FFF |
|
arbitrary PID VPN |
Can realize an arbitrary PID VPN and mapping |
||
Max PID/channel |
128 |
||
General Features |
Size |
44mm*482mm*410mm |
|
Environment |
0~45(Operating);-20~80(Storage) |
||
Power |
100-240VAC±10%,50Hz,25W |
||
Network Management :
P1: Multiplexing
P2: Edit NIT table
P3: Output setting
P4: PID filter
P5: Edit PSI table
P6: ASI bitrate monitor
3 years warranty, lifetime maintenance, repair, technical support, OEM,ODM.
