Overview:

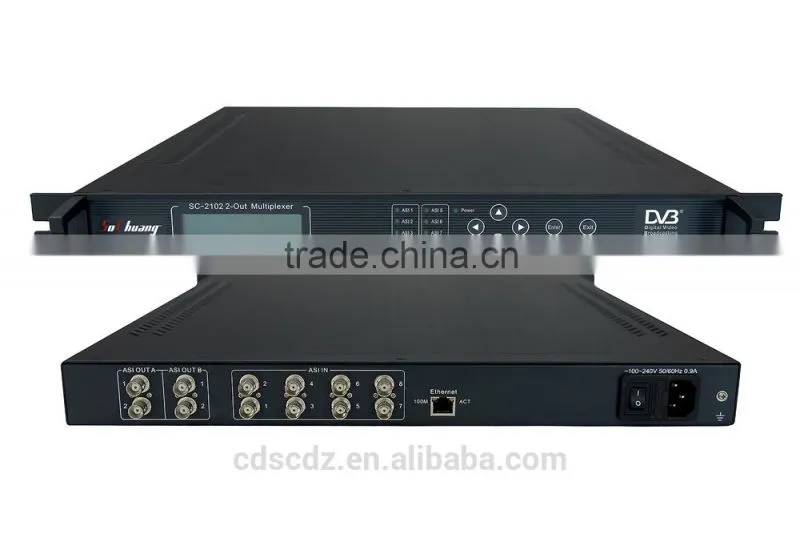

2-OUT TS multiplexer is a digital broadcasting TS stream re-multiplexer. It muxplex 8 channel input ASI programs and output two separated MPTS TS stream, and user can select or filter the programs PIDs, or passthrough the special PIDs.
Features:
. Comply with ISO13818 and EN300 468 standards;
. Support IP data injection;
. Support program sorting;
. Generate SPI / SI information;
. Support PCR correction and PID re-mapping;
. 8M bytes caches, anti-burst stream;
. Support PSI editing functions;
. Each channel can choose 128 PID;
. Can insert data, reuse and transmission a variety of data;
. Alarm function;
. Support cascading among multiple devices;
. Enables centralized network management, support network remote upgrade feature;
. LCD display in Chinese and English, easy and flexible to operate;
. High reliability design, stable operation.
. 2 separate ASI output (two different MPTS stream).
Technical Specification:
Input |
ASI |
8 BNC |
|
Packet Format |
188/204,Automatic detection |
||
Re-multiplexing |
MPEG-2 stream re-multiplexing |
||
PID Passthrough | |||
PID Filter | |||
PCR Correction | |||
PSI/SI Edit | |||
Control |
NMS(Ethernet Port,RJ-45), Keyboard+LCD |
||
Backplane Bandwidth |
800mbps |
||
Output |
ASI |
4 BNC (two separate MPTS) |
|
ASI Monitor |
Program quantity, bit-rate, lock status |
||
PID |
PID Range |
0000-1FFF |
|
arbitrary PID VPN |
Can realize an arbitrary PID VPN and mapping |
||
Max PID/channel |
128 |
||
General Features |
Size |
44mm*482mm*410mm |
|
Environment |
0~45(Operating);-20~80(Storage) |
||
Power |
100-240VAC±10%,50Hz,25W |
||
3 years warranty, life time maintanence, technical support, OEM.
Chengdu Sochuang Electronics Co.,Ltd. welcome to visit our website:
Any question, please add me Skype ID: jackpeng2000.
