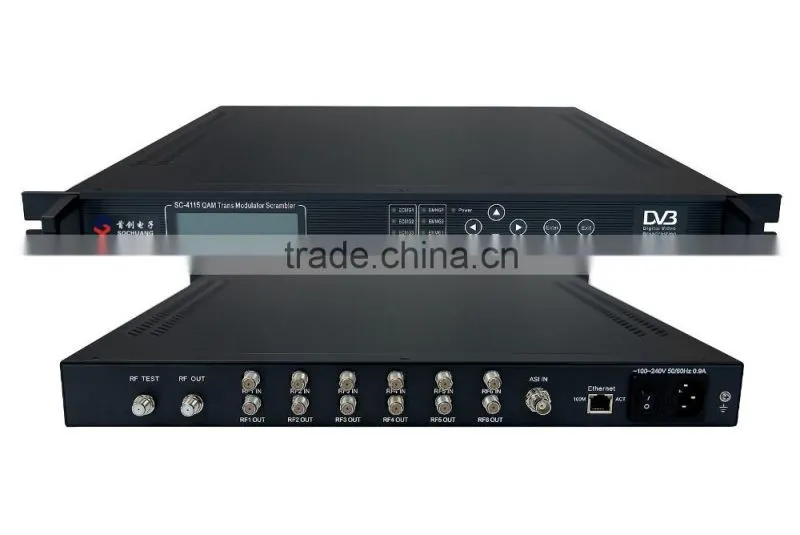

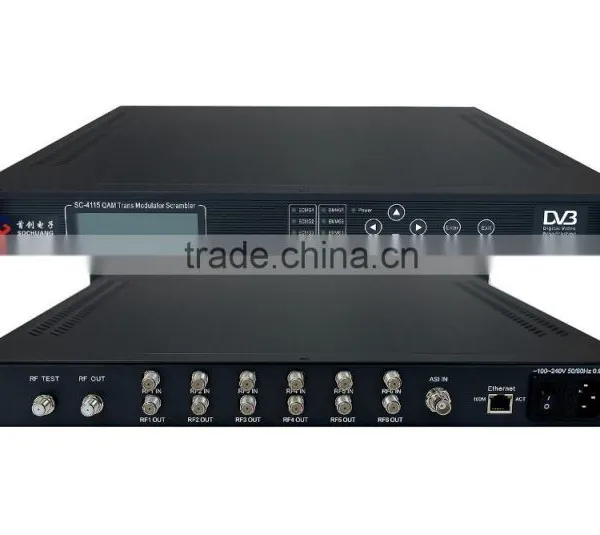

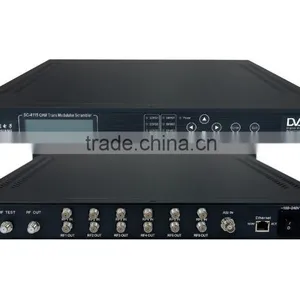

SC-4115 dvb-s to dvb-c converter/6tuenr to 4qam
Overview
SC-4115 dvb-s2 to dvb-c transmodulator qpsk qam can receive digital programs from 6 QPSK/8PSK transponders, demodulate, multiplex and output the selected programs in 4QAM-RF channels. It provides a cost-effective yet scalable solution for TV operators to re-distribute its content via HFC network. (CATV Headend DVB-S2 to DVB-C QAM Transmodulator)
Features
- Complying DVB standard signal channel coding
- Input 6 *QPSK/8PSK - RF channels
- Output 4 QAM- RF channels
- 100Base-TX, RJ45 for monitoring

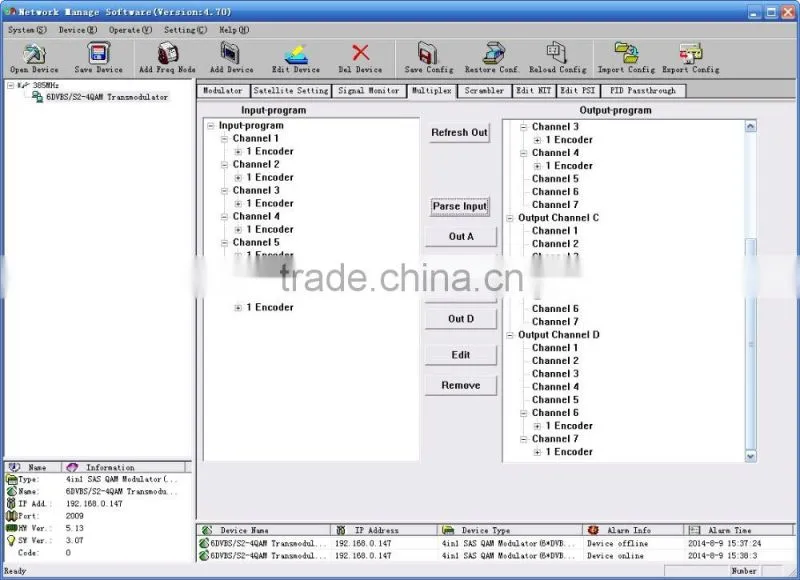

- Support cherry picking and program remultiplexing
Input |
RF |
6×tuner (DVB-S/S2) |
ASI |
1×ASI (BNC) |
|
Frequency Range |
950~2150 MHz |
|
Symbol Rate |
1~45 Msps |
|
Output |
Interface |
F-head |
Impedance |
75Ω |
|
Frequency Range |
47~870Mhz, 1Khz step |
|
Constellation |
16, 32, 64, 128, 256 QAM |
|
Standard |
EN300429/ITU-T J.83A |
|
Symbol Rate |
5.0~9.0Msps, 1ksps step |
|
Error-Correcting Codes |
RS code188/204 |
|
MER |
≥40dB |
|
BER |
0 |
|
Output Level |
90~110dBuV |
|
Level Attenuation Range |
-20dBm~0dBm (per carrier), 0.5dB step |
|
Scrambler |

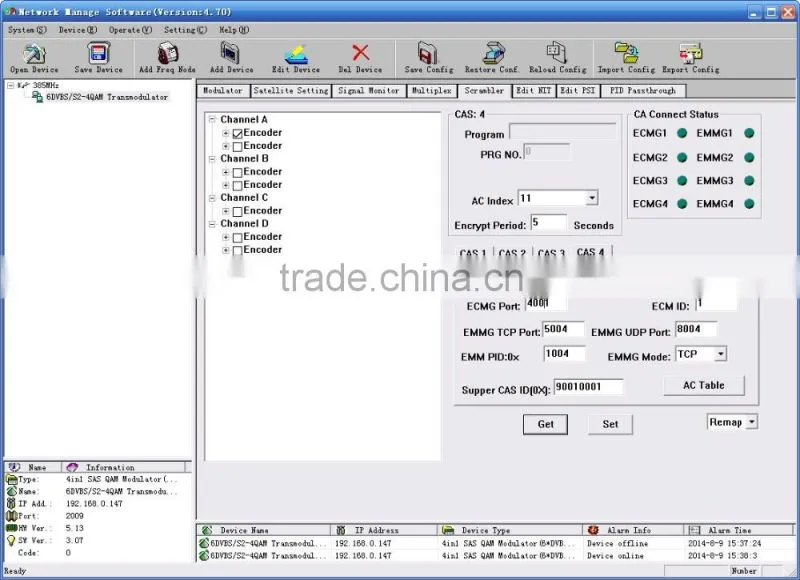

support 4×CAS/SMS; head-end implementation of DVB simulcrypt (ETSI TS 103 197 V1.4.1) |
|
Control |

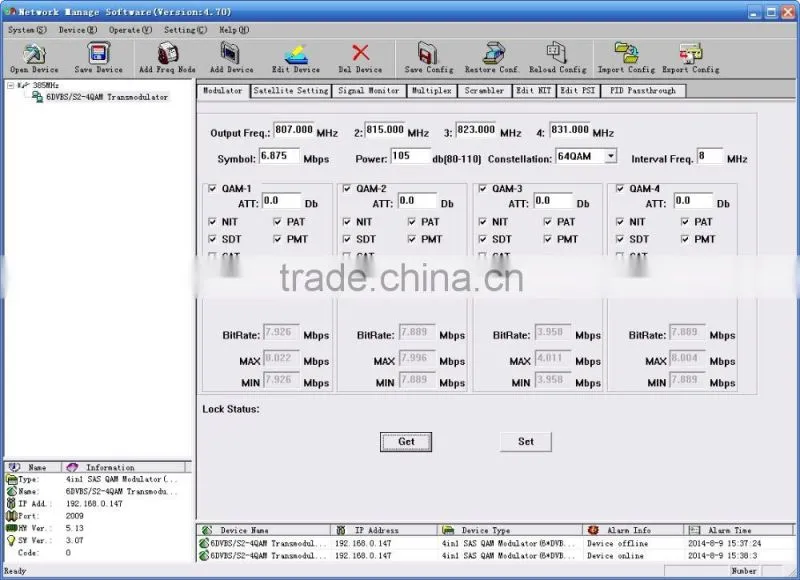

LCD/Keyboard, network management |
|

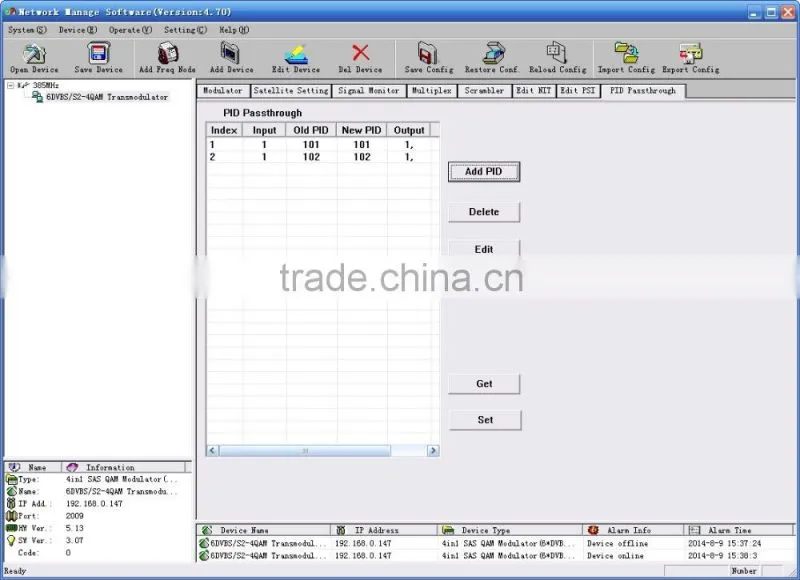

Ethernet software upgrade | ||
General Features |
Size |
482mm×410mm×44mm |
Temperature Range |
0~45°C(Operation); -20~80°C(Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
