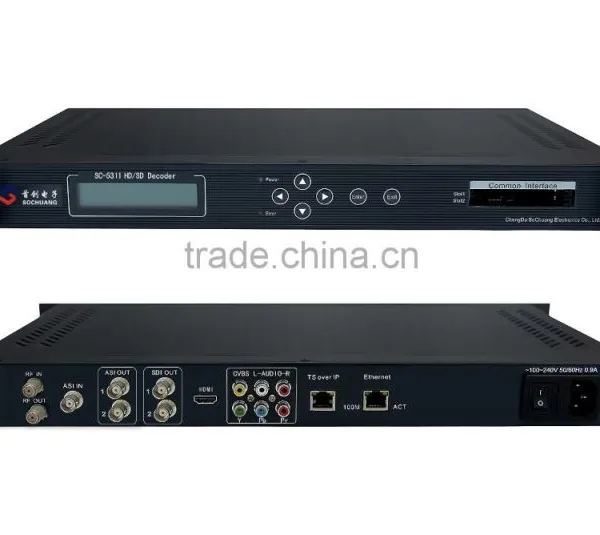

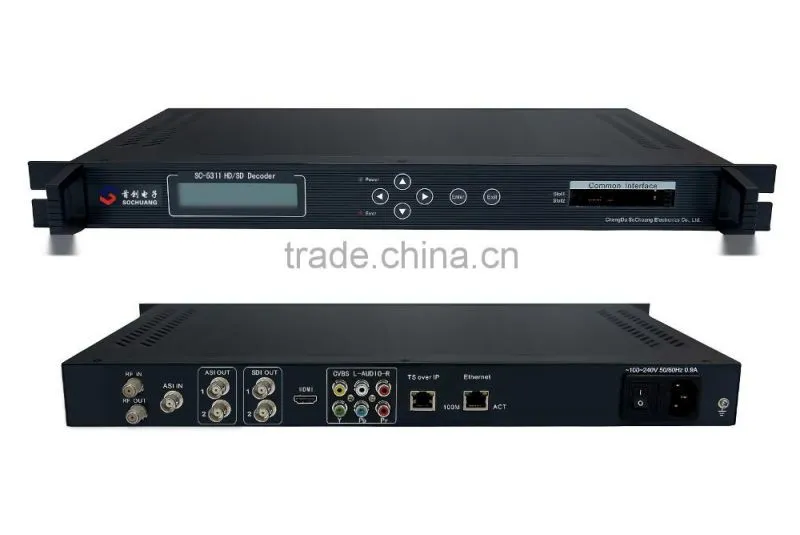

SC-5311 UDP/IP DVB-T2 Decoder/Satellite Receiver
Overview
SD/HD satellite decoder with CI slot has 1×DVB-T/T2 RF and 1×ASI and IP input interfaces and supports MPEG4 AVC/H.264 and MPEG2 video encoding. The input DVB satellite signal will be demodulated to TS stream and output by AV, ASI, SDI, HDMI, YPbPr, or IP interface. It has 2 CI slots, supporting 2 CAM cards. It provides powerful signal receiving, descrambling and decoding, which meets a variety of application requirements. It’s one of the main digital head-end equipments for receiving and encrypted satellite programs.
Feature
u Support DVB-T/T2 or ASI or IP input
u Support 2 CI slots
u Support AV, ASI, SDI, HDMI, YPbPr, IP output
u Real-time monitoring of input and output signal

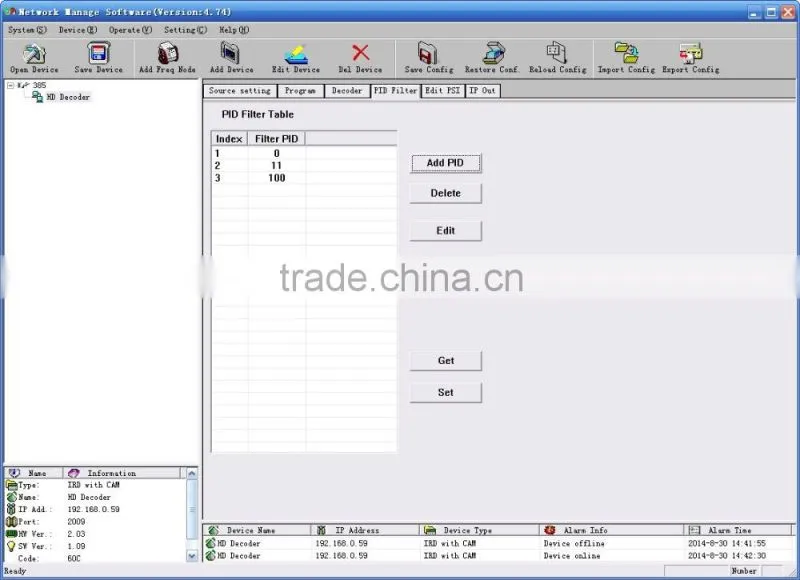

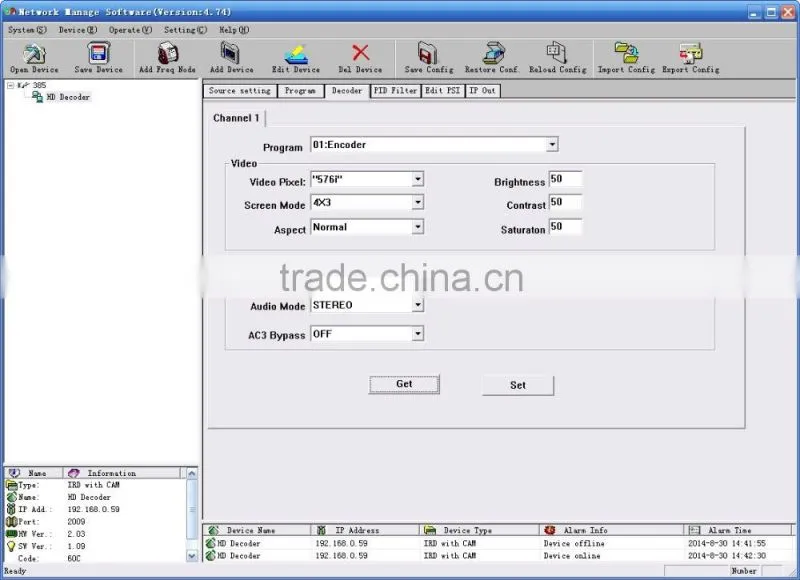

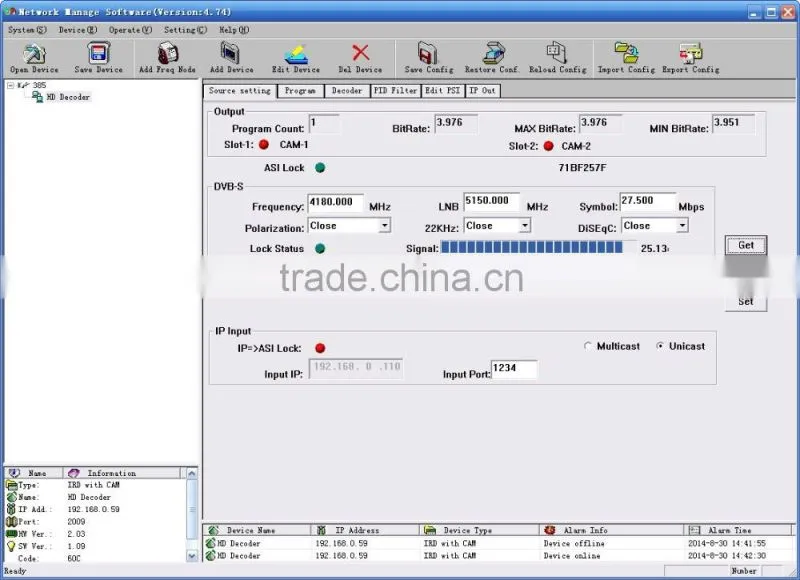

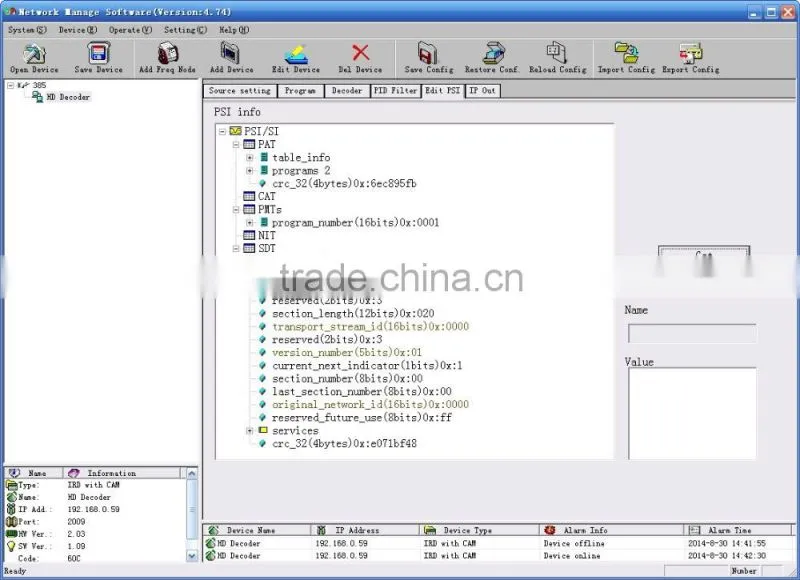

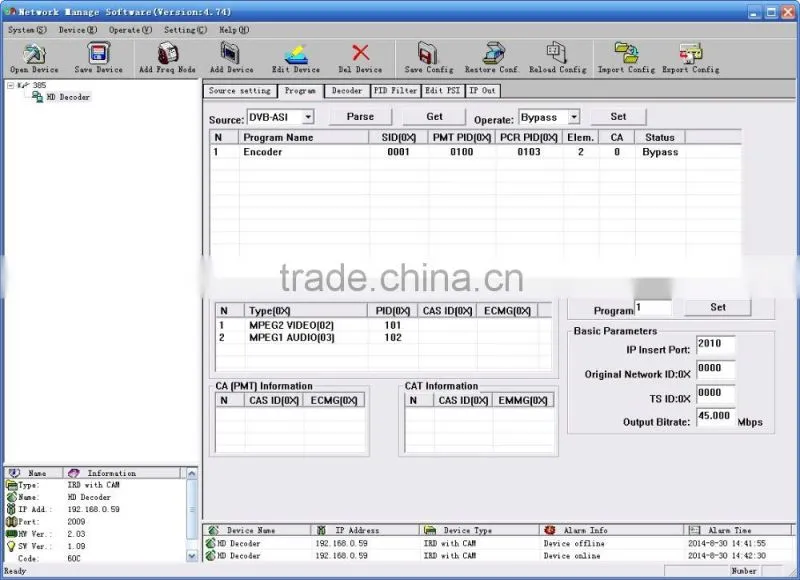

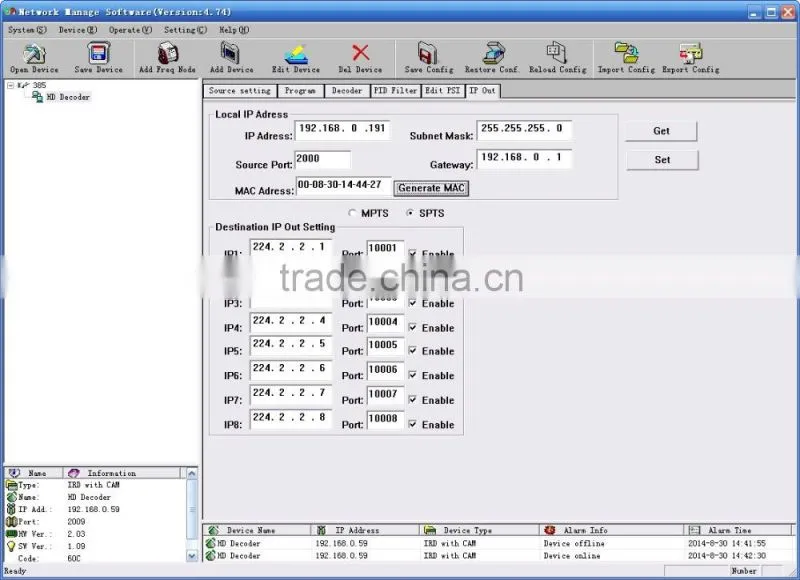

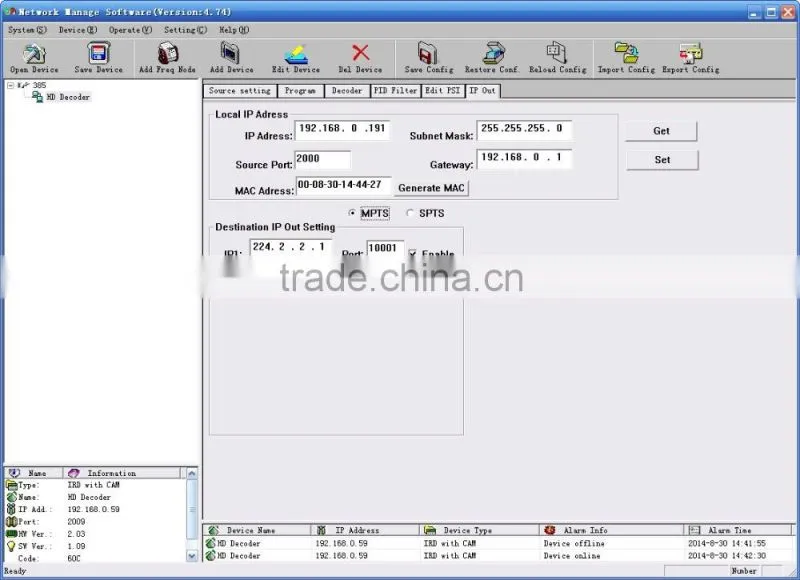

u LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
Input |
RF |
DVB-T/T2 (36-900MHz), F-head |
ASI |
DVB standard, BNC interface |
|
IP |
100mbps RJ45, TS over IP/UDP |
|
Output |
ASI |
2×ASI (1 as mirror), DVB standard, BNC interface |
SD CVBS |
BNC interface |
|
Audio |
1 pair of unbalanced audio, BNC interface |
|
SDI |
DVB standard, BNC interface |
|
HDMI |
1×HDMI 1.3 |
|
YPbPr |
DVB standard, BNC interface |
|
IP |
100mbps RJ45, TS over IP/UDP |
|
Video Decoding |
Decode Mode |
SD: MPEG-2 SD 4:2:0 MP/ML |
SD: MPEG-4 AVC SD MP/L4 | ||
HD: MPEG-4 AVC HD MP/L5.0/HP/5.0 | ||
Video Format |
PAL/ NTSC |
|
Audio Decoding |
Decode Mode |
MPEG-1 layer2/MP3 |
Dolby Digital (AC-3); Dolby Digital Plus (E-AC-3) | ||
MPEG-4 AAC /AAC Plus (HE-AAC v1/2) | ||
General Features |
Size |
482mm×280mm×44mm |
Temperature Range |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
