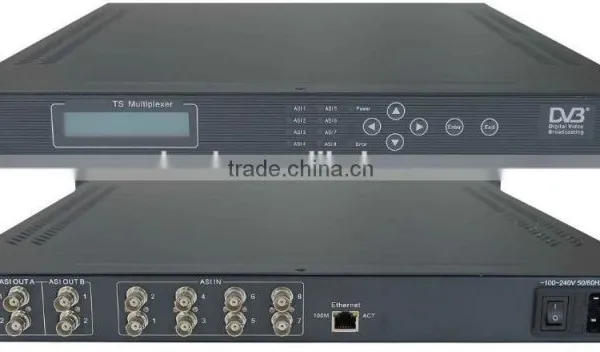

tdt tot EPG Multiplexer (8 ASI IN and ASI OUT)

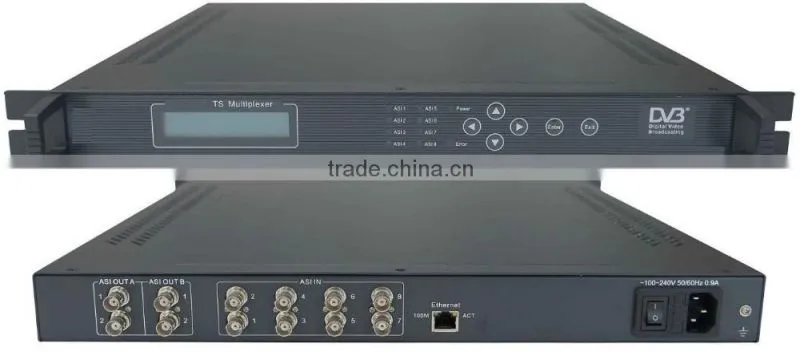

8*ASI TS Multiplexer
Overview
8*ASI Multiplexer is an ASI/TS (transport stream) re-multiplexer, supporting 8*ASI input (reach up to 270Mbps), and ASI output (bitrate can reach up to 160Mbps).
Technical Specification
Input |
ASI |
8×BNC interface,75ohm |
Packet Format |
188/204 automatic detection |
|
Output |
ASI |
one multiplexing output (4×ASI, 3 as mirror) |
Output bit rate |
0.1 to 160mbps |
|
PID Range |
0000-1FFF |
|
Re-Multiplexing |
SPTS MPTSMPEG-2 transport stream re-multiplexing |
|
PCR correction and PID re-mapping (auto or manual) | ||
automatically generate PSI/SI tables | ||
PSI edit, NIT insert, | ||
Control |
IP remote |
NMS (Ethernet Port, RJ-45), 10/100m base-TX, |
Front panel |
Keyboard + LCD |
|
General Features |
Size |
482mm×280mm×44mm |
Temperature |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
100-240VAC, 50/60Hz, 25W |
Order Guide
2101 |
ASI/TS Multiplexer (8×ASI in, ASI(4 BNC Port) out) |
2102 |
2-Output ASI/TS Multiplexer (8×ASI in, 2×Group (each 2×ASI) out) |
3106 |
ASI Scrambler Multiplexer(8*ASI in,ASI out) |
Network Management Software

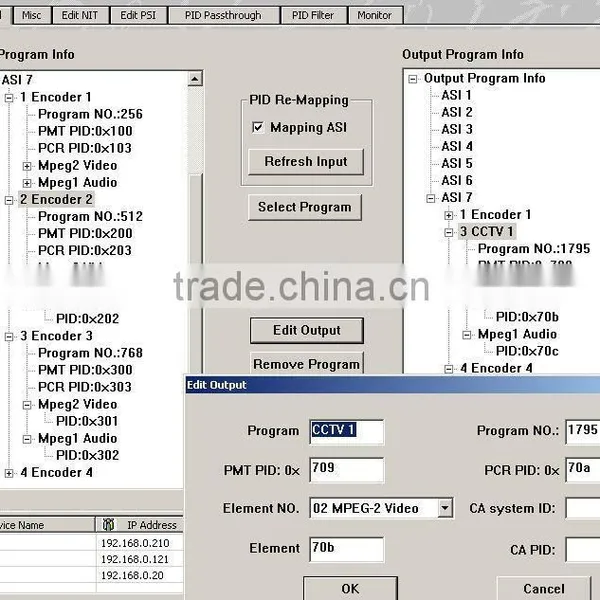

programs multiplexer:

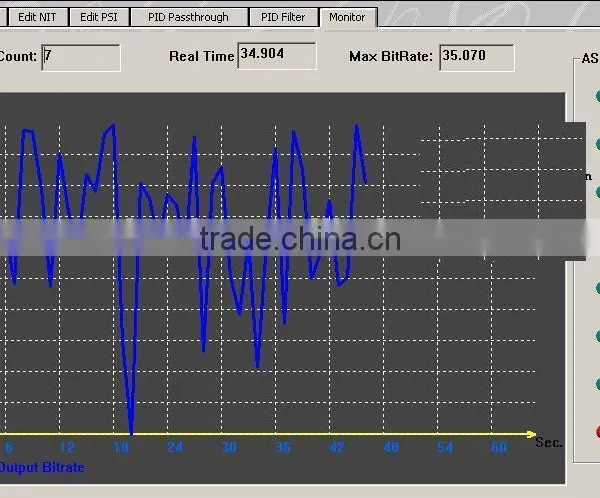

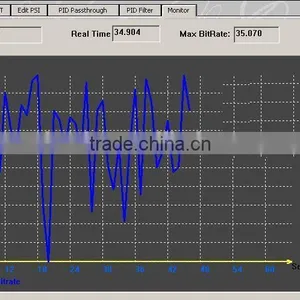

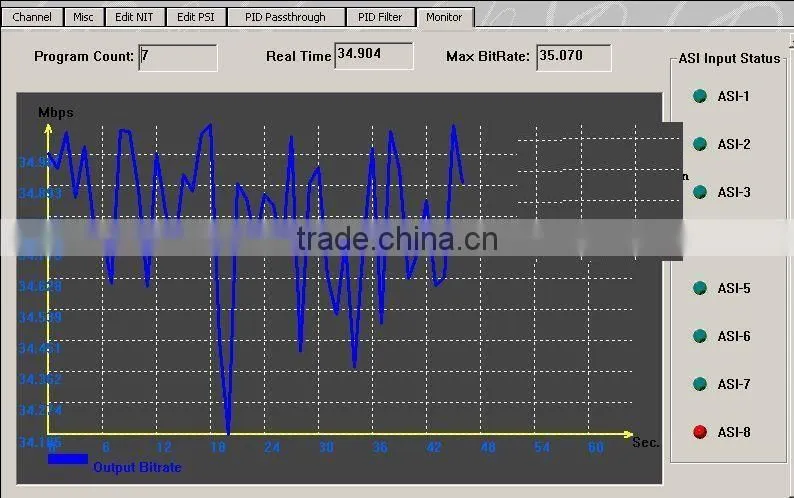

signal monitor:
output setting:

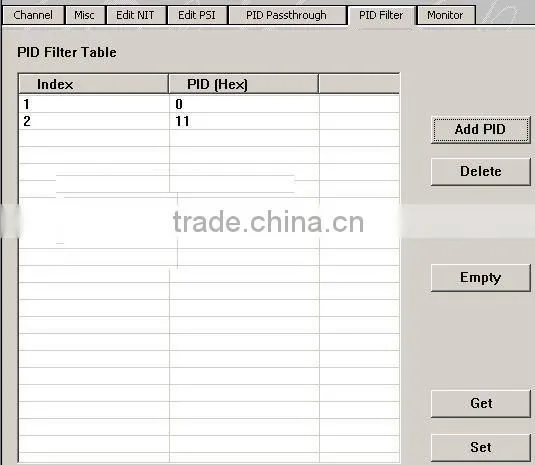

PID filter:

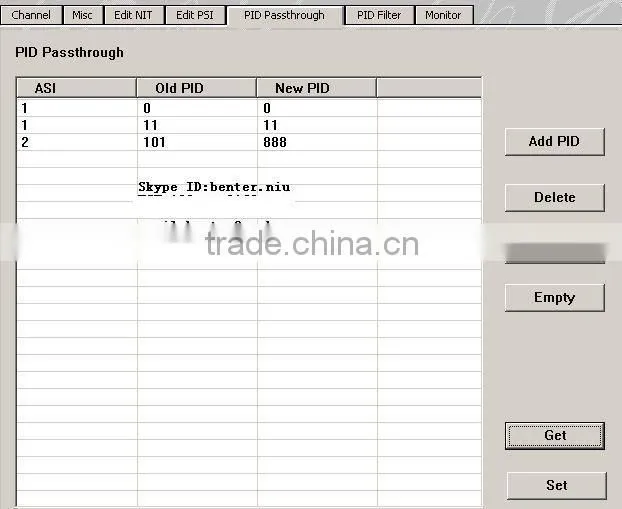

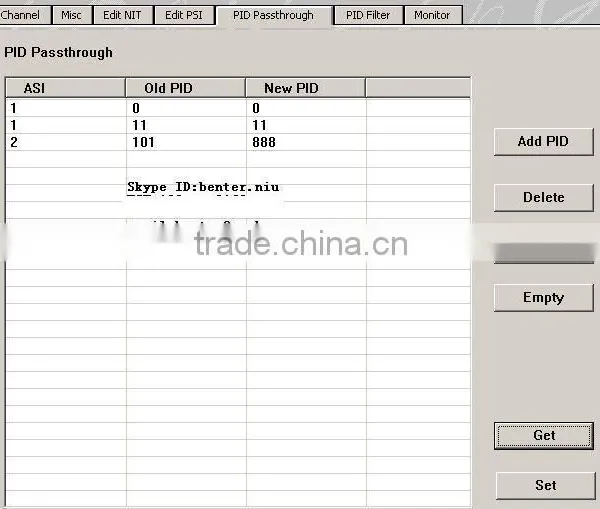

PID passthrough:

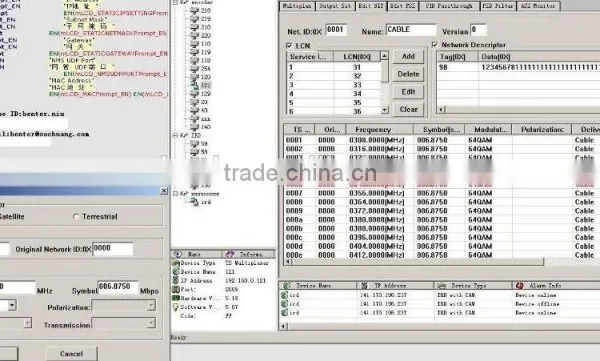

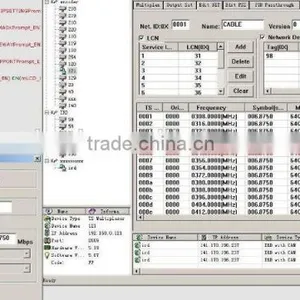

NIT edit:

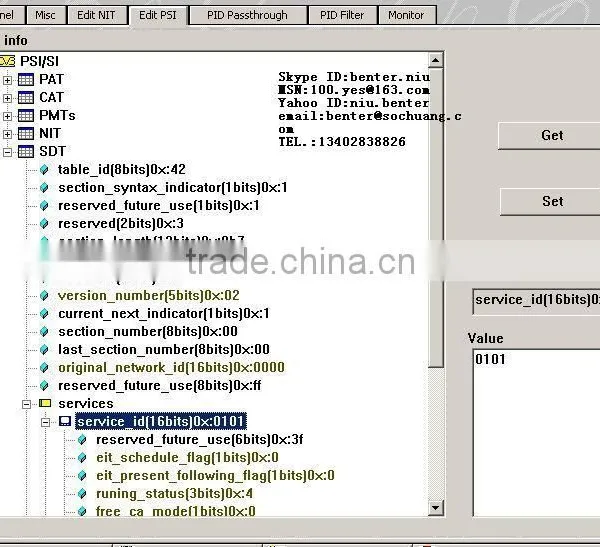

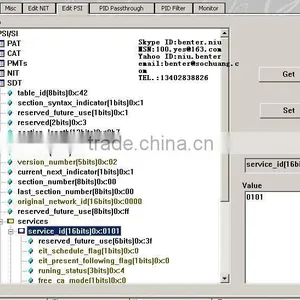

PSI edit:
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
