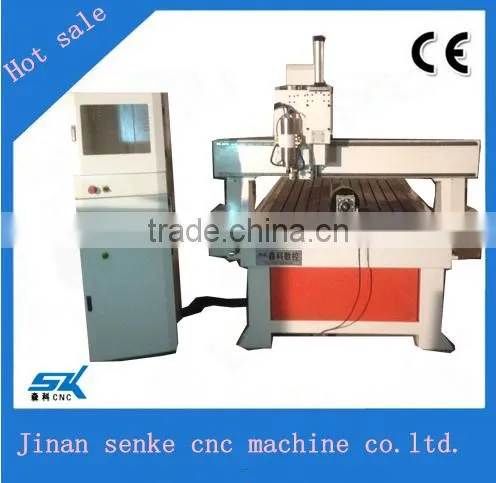

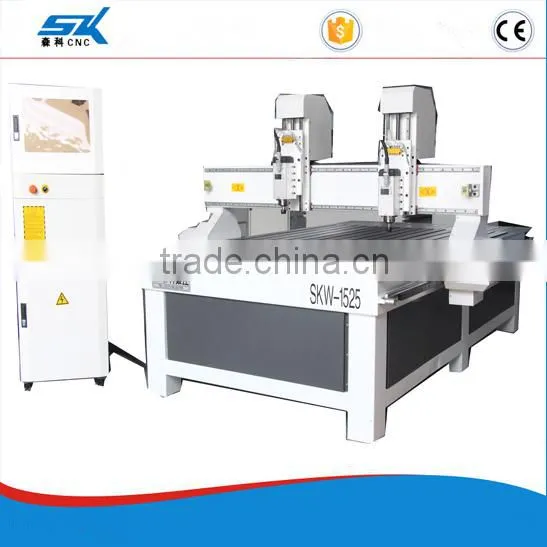

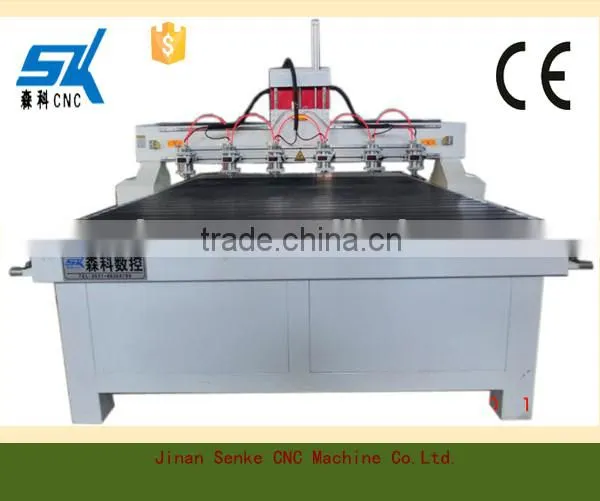

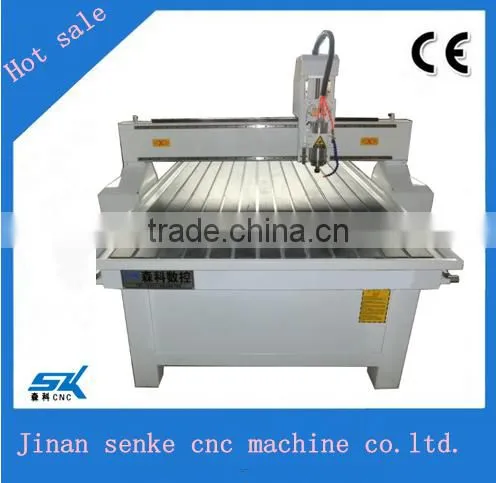

2016 new businese idea wood cnc with multi spindle for wood furniture carving machine multi spindle 3d cnc router
Features:
1.All of the spindles can work together to save your time and costs.
2.We can supply 2-8 spindles for a machine.The number and power of the spindle are to be adjusted by the consumer's needs.
3.You can adjust the distance between two spindles to satisfy your requirments.
4.The solid and permanent structure plus unique design make the machine with long service lite performs well.
Discription |
Parameter |
|||
SKW-1325DL |
SKW-1530DL |
SKW-2040DL |
Option |
|
Working Area (X*Y*Zmm) |
1300*2500*200mm |
1500*3000*200mm |
2000*4000*200mm |
customized |
Body structure |
Steel wedding |
|||
X, Y Structure |
rack and pinion drive |
|||
Z Structure |
Ball Screw/option gear-wheel |
|||
X, Y Resolution |
<0.01mm |
|||
Max Moving Speed |
42000mm/min |
|||
Max Engraving Speed |
20000mm/min |
|||
Spindle power |
3kw/4.5kw/5.5KW/6KW(can be choices) |
|||
Spindle Speed |
6000-24,000rpmrpm |
|||
Table style |
Fixture/option vacuum table |
|||
Dust collection |
Can add or not |
|||
Voltage |
AC220V/50Hz |
|||
Drive type |
Stepper/Option:servo |
|||
Working Dictate |
G Code ,HPGL |
|||
Operating system |
NC-Studio/Dsp System/option syntec or LNC |
|||
Interface |
USB |
|||
Flash memory |
128M(U Disk) |
|||
Software Compatability |
Type3/Ucancam Artcam |
|||
Running Enviroment |
Temperature: 0-45 |
|||
Applicable industry
Woodworking industry:Classical funitures' processing.
Advertising industry
Advertising signs,logo marking,acrylic cutting,plastic molding,advertising decorative products of different materials.
Other industries: Carving series,relievo series,widly used in handicraft industry

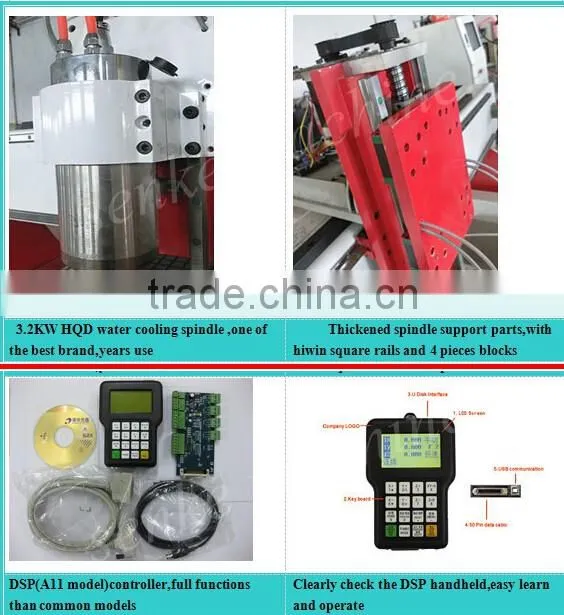

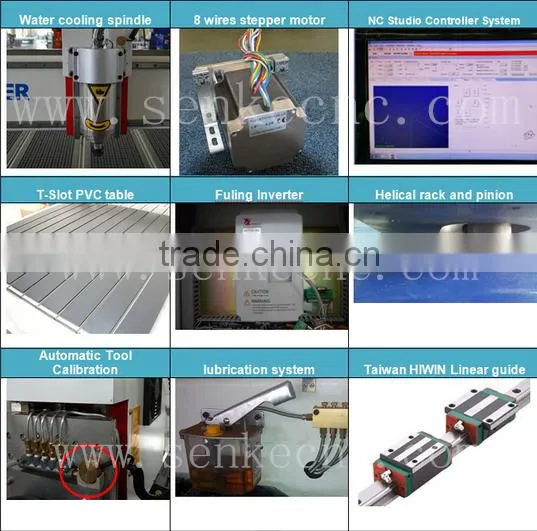

PARTS SHOW
Samples
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router/laser machine ,then let us give you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
We will send video and english manual with the machine.If you still have some doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.While we also supply free after-service forever
Operation
all senke machine sending with software CD,software manual,teaching video,machine operate manual,packing list,if you want view first,please kindly contacted we seller directly,we send by email
Videos
if you want check,how the machine work,please kindly contact we seller,we will send to you senke router working video.
Training
we senke team was constituted by skilled staff,anyone of them with years experience,can operate all style control system machine skilled and adept,if you needed,we engineer oversea services available,detailed charges please contacted we seller,also if you like,welcome to us,in we factory,the training service itself free.
.
|
