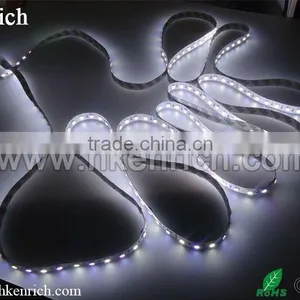

Help CenterDC24V RGBW Strip LED Light
Related Products
-
CE RoHS Led Strip Light SMD3528US$ 2 - 8MOQ: 50 Meters -
IP67 Silicone Cased Led Strip LightUS$ 2 - 8MOQ: 50 Meters
-
Pink Color Led Strip Light Double Line Leds 120pcsUS$ 2 - 8MOQ: 50 Meters
-
110V LED Strip Light 6mm With White PCBUS$ 2 - 8MOQ: 100 Meters
-
SMD2835 LED Strip Light Waterproof IP65US$ 2 - 8MOQ: 100 Meters
Specifications
Strip LED Light-Non-waterproof
-DC24V
-60 leds/m, 72 leds/m, 120 leds/m, 240 leds/m
CE, ROHS
Bicolor LED Strip, Double color LED Strip
Features:
- Available in 24V DC maximum.
- Very bright & low power consumption.
- LED Type: SMD 5050
- LED Qty: 72 LED/meter
- Operating temperature: -20~50°C.
- Long life span LED lights, more than 50,000 hours +.
- Water-proof, IP20

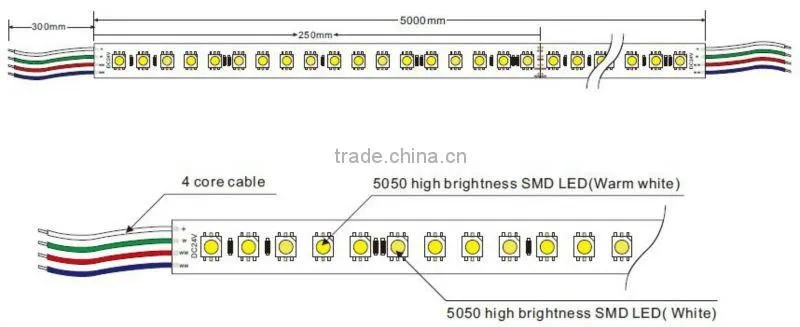

Assembly drawing
Top View:
Section:

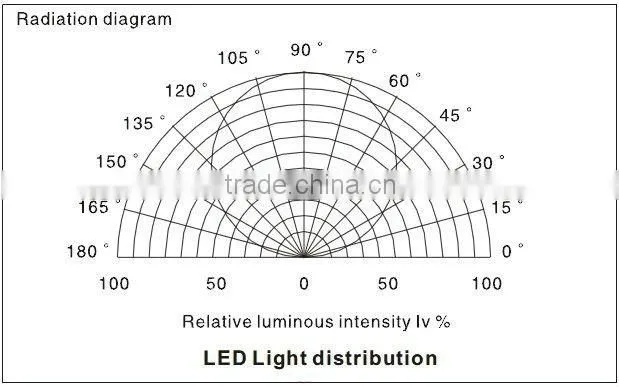

View Angle:120 degrees.
Operation Temperature: -20~50°C.
Store Temperature: -30~80°C.

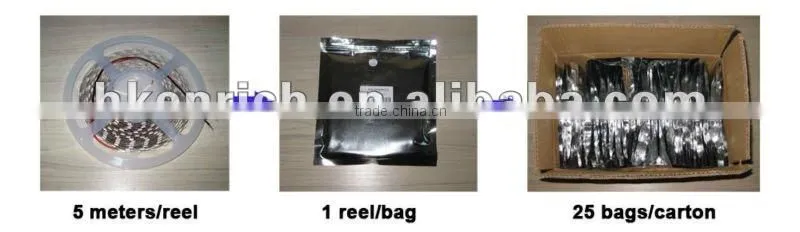

Package: 5 meter strip in one reel, one reel in one anti-static bag, 25 bags put into one carton.
5050 Ribbon series: SMD 5050 60 LED/meter
Common cathode
This flexible strip is made of 5050 SMD LED

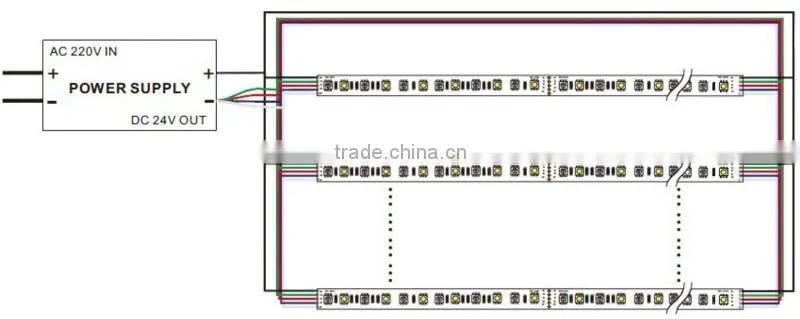

How to connect flexible strip
Below shows you how to connect the flexible strip to power supplies.
Note:
Please notice that, the LED strips should not be used in sealed or hot place, to make sure the heat emitting is good for the LEDs.

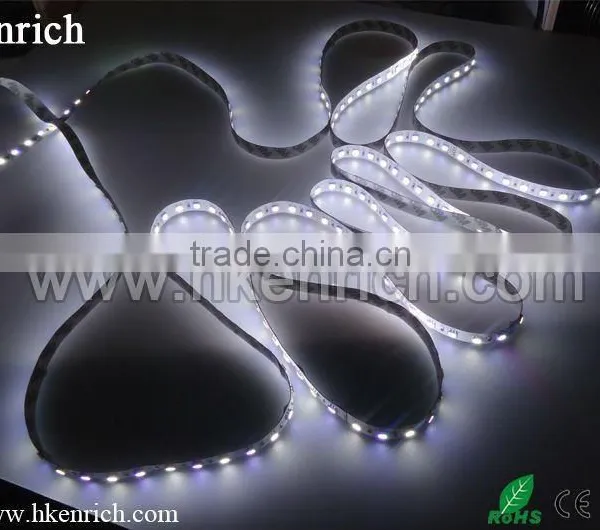

Picture:
