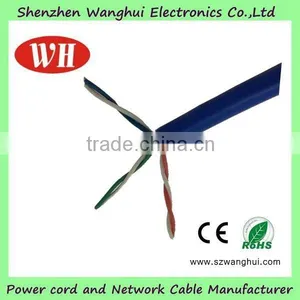

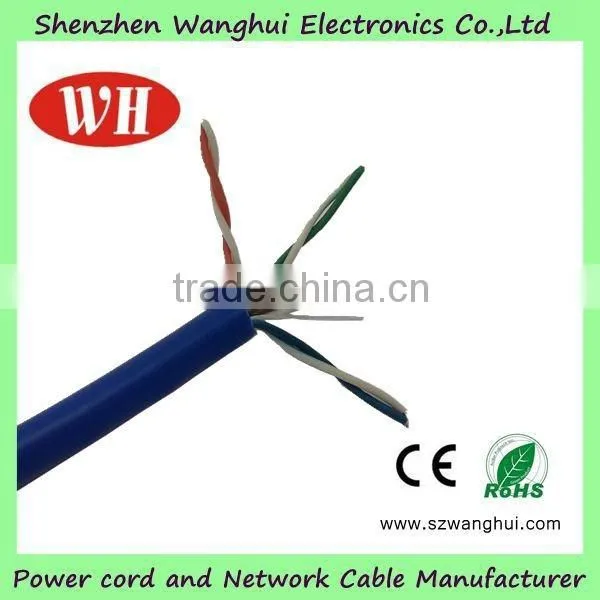

Good quality&hot sales stranded cat5e utp lan cable
Introduction
A Cat 5e (Category 5e) Cable is an Ethernet network cable standard that consists of four twisted pairs of copper wire terminated by RJ45 connectors. It is based on the EIA/TIA 568 Commercial Building Telecommunications Wiring Standard developed by the Electronics Industries Association.
Cable Structure Details
1.Conductor:
Material: solid BC,CCA,CCS,CCAM
Numbers of pairs: 4 pairs (8 wires )
AWG:24AWG
Conductor diameter: 0.51mm+/-0.02mm
2.Insulation:
Material: PE or HDPE
Diameter: 0.91mm+/- 0.02mm
Average thickness: 0.212mm
Minimum thickness: 0.2095mm
3.Sheath:
Material: PVC
Diameter: 5.2mm+/-0.2mm
Electrical Specifications
Dielectric strength |
2.5KV dc-2seconds |
Conductor resistance |
Max 9.38ohm/100M at 20°C |
Max. ring resistance |
16.8 ohm/100M at 20°C |
Max. mutual capacitance |
560 pf/100M |
Max. capacity unbalance |
330 pf/100M |
Standard impedance |
100±15 ohm between 1Mhz and 100Mhz |
Minimum bending radius |
60mm |
Working temperatures |
-20~60°C |
DTX1800 Fluke Link test |
100% pass 90meters Link test |
Network Analyzer |
100% pass 305meters network analyzer test |
Your Satisfaction is Our Pursuit! If There is Any Question About Utp cat5e cable , Please Do Not Hesitate to Contact Me:
Skype: Nancy-cai07
Other productors for reference:
1. 305M/roll/Easy pull box, 2 boxes/carton
2. Delievery time: 6-10days after receiving the deposit.
Shenzhen Wanghui Electorics co., LTd into start at 2000 and have trade in 2005. We are a formed professional design, independent production and sales for the intergration of diversified private enterprice. The main products of our company are Powers cord, LAN cables and pther computer peripherals wire, all our products are widly used in household appliances.
If you are interested in the lan cable for networking , please feel free to contact me!
Nancy
Tel: +86 15112672883
Skype: nancy-cai07
1. Over 10 years of manufacturing experiences so cxan keep good quality contral for you.
2. IQC, IPQC, FQC and OQC are all strictly implemented by trained staff.
3. We have professional R&D team. They can solve all technical problems and provide perfect solutions for you.
4. Shipment: For big order, we usually ship by container, or LCL. For small orders, we usually ship by Fedex, DHL, UPS etc to make sure the goods arrive on time
5. All products are complied with CE, ROHS standards.
