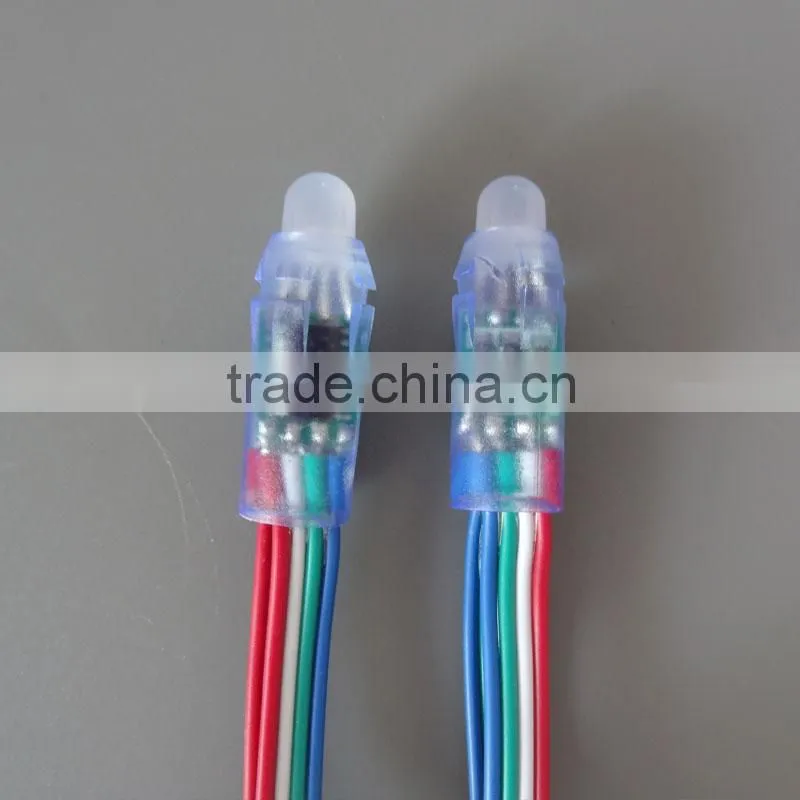

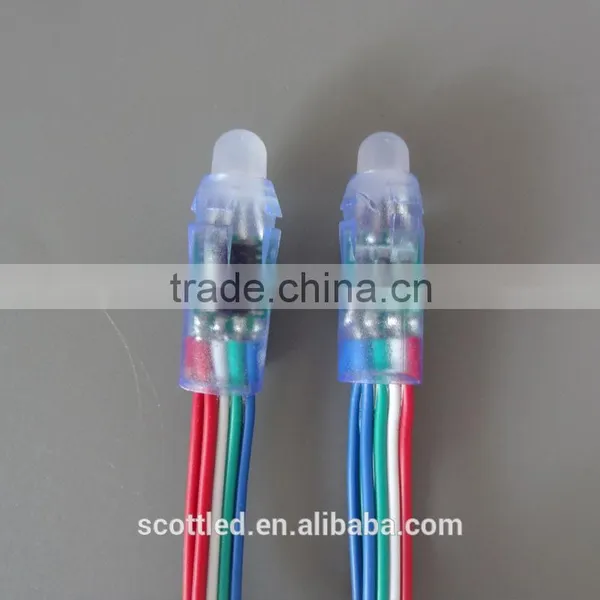

12mm LPD6803 Pixel Module String,LED Pixel Module light,Waterproof IP66;DC5V input; full color;50pcs a string,Round Shape
1.Voltage: DC5V
2.current:60mA
3.Rated Power: 0.3W/pcs
4.LED amount:30 F8 LED lights beads
5.luminance:9Lm
6.Available colors:Full-color 256 Gray level
7.Beam Angle:110°-180°
8.Dimensions:34mm*12mm
9.Grade of Protection:IP66

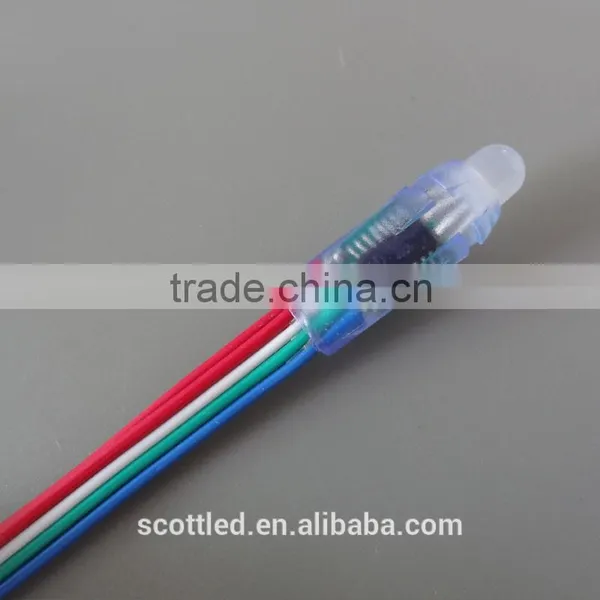

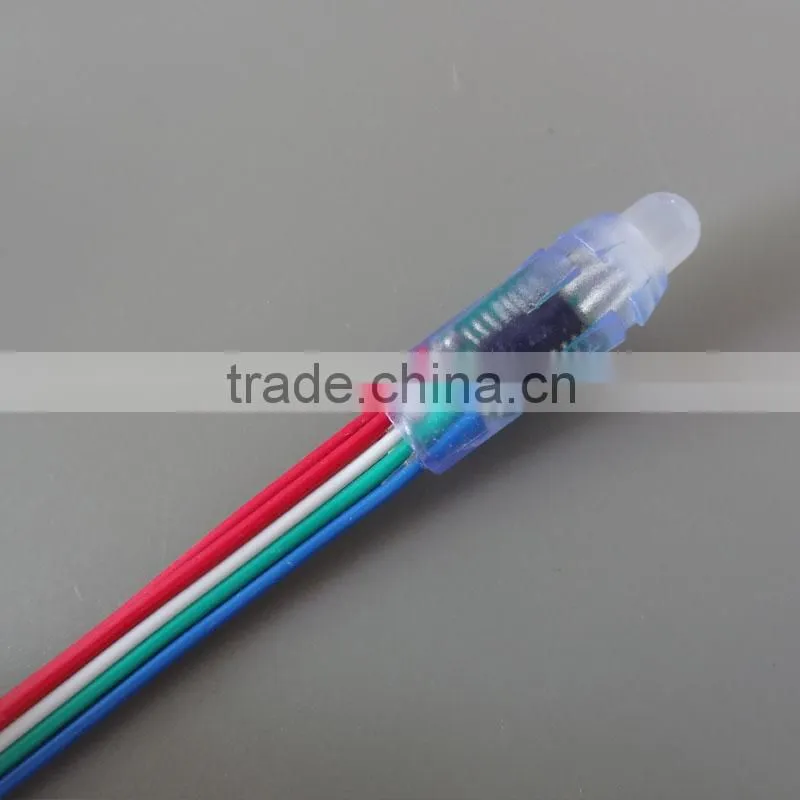

RED WIRE: DC5V input +
yellow wire:DATA
greem wire: clock
blue: Ground
input side: is the side with IC
RGB Pixels are digitally-controllable lights you can set to any color, or animate. Each RGB LED and controller chip is molded into a 'dot' of silicone. The dots are waterproof and rugged. There are four flanges molded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick. They're typically used to make outdoor signs
The pixels use 8mm diffused RGB LEDs, with a 120 degree beam width. The total max brightness of all LEDs is about 1600mcd but with the light more evenly distributed & mixed than a clear LED
12mm diameter (0.45") 75mm deep (1.5")
100mm

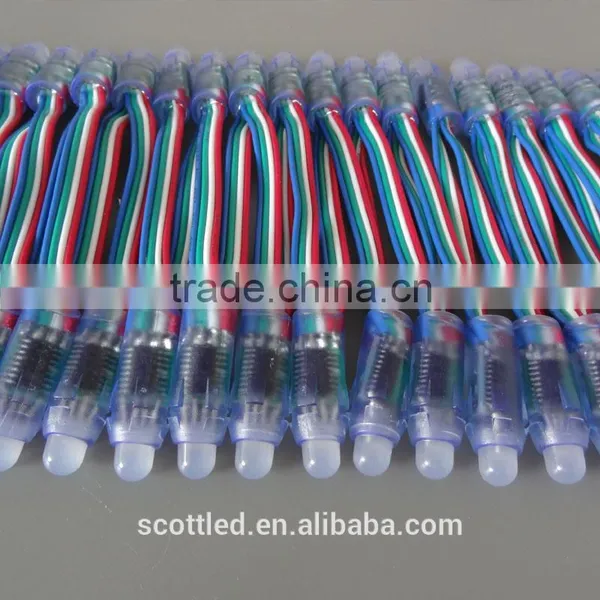

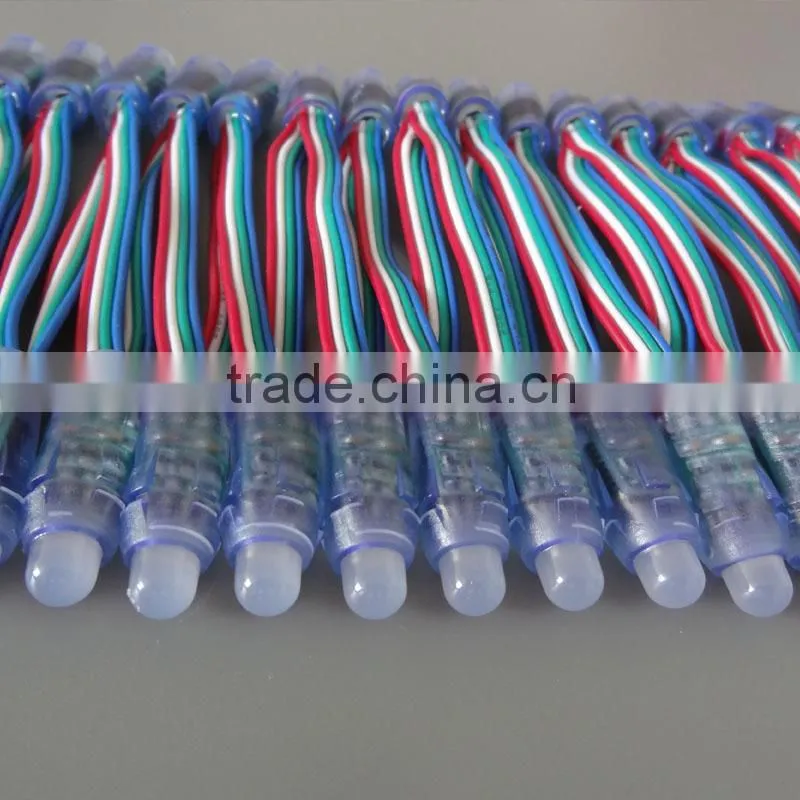

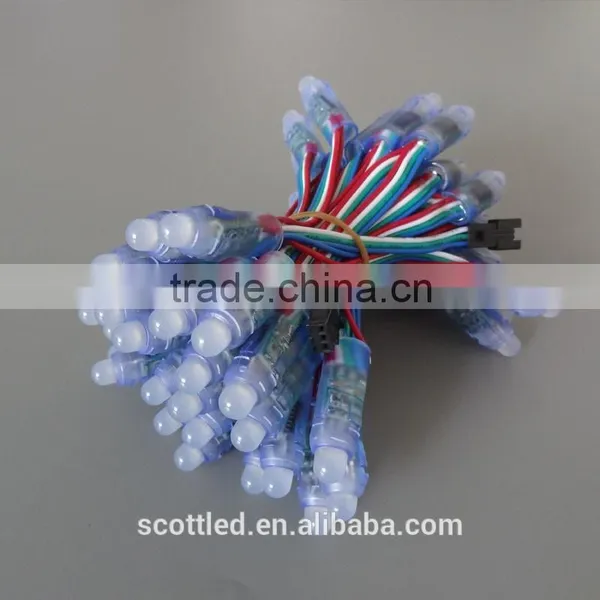

50 pieces per strand
These pixels use a LPD6803 chip for full 24 bit color
5V power, 60mA maximum per pixel (LED on full white)
2-pin SPI-like protocol
LPD6803 Datasheet for the chip inside each pixel
Brightness: Red = 3.3 Lumens/300 mcd, Green = 10 Lumens/1000 mcd, Blue = 2.7 Lumens/300 mcd (mcd calculation based on full 120 degree beam)
