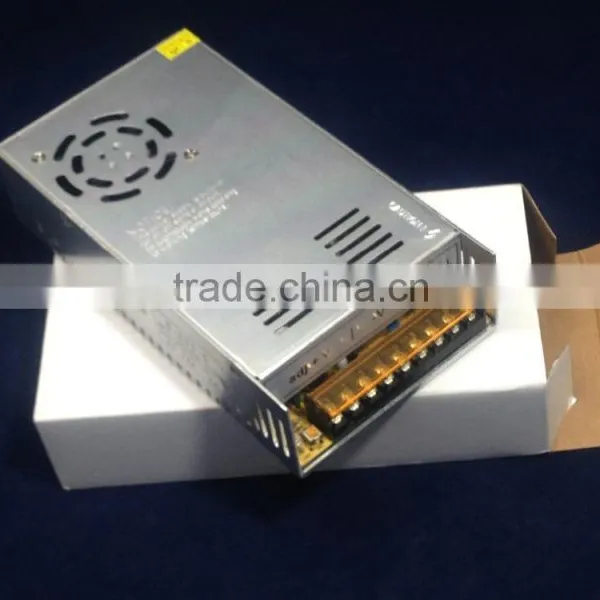

5V/350W Switching Power Supply, LED Power Driver

Name: 5V/350W Switching Power Supply, LED Power Driver
Brand: SCOTT
SKU: 116322585

US$ 16.70 - 16.70 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SCOTT

Model Number:

SC-BX-350-5-70

Shenzhen Scott Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shen Zhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SCOTT

Model Number SC-BX-350-5-70

Output Power 301 - 400W

Output Type Triple

Input Voltage Other, 110-220V

Output Voltage 5V

Output Frequency 50/60Hz

Output Current 70A

5V/350W switching power supply, LED power driver

Specification:

Model	HS-350-5	HS-350-12	HS-350-15	HS-350-24	HS-350-27	HS-350-31
Specification
DC output voltage	5V	12V	15V	24V	27V	31V
Output voltage tolerance(Note:2)	±2%	±1%	±1%	±1%	±1%	±1%
Rated output current	70A	29A	23.2A	14.6A	13A	11.3A
Output current rage	0-70A	0-29A	0-23.2A	0-14.6A	0-13A	0-11.3A
Wave and noise(Note :3)	150mVp-p	150mVp-p	150mVp-p	150mVp-p	1500mVp-p	200mVp-p
Inlet stability(Note :4)	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stablity (Note :5)	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	78%	80%	80%	82%	82%	84%
Adjustable range for DC voltage	4.5-5.6V	10-13.2V	13.5-18V	20-26.4V	26-32V	41-56V

Note: 1.The testing condition for the parameter above is :230VAC input,rated load,25°C70% RH.Humidity. 2.Tolerance include the setting tolerance,line stability and load stability.(Note:5). 3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. 4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. 5.Load stability test:the load is from 0% to 100%.
