Home > Packaging & Printing > Packing Machinery > Vacuum Packing Machine > YS-ZDZK-420 Full Auto Continous Stretch Vacuum

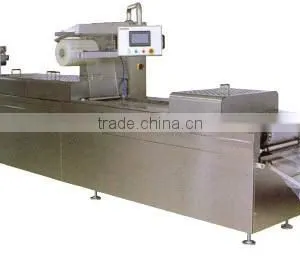

YS-ZDZK-420 Full Auto Continous Stretch Vacuum
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Bags, Barrel, Belt, Bottles, Cans, Capsule, Film, Foil, Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type
Bags, Barrel, Belt, Bottles, Cans, Capsule, Film, Foil, Pouch
Packaging Material
Plastic
Automatic Grade
Semi-Automatic
Driven Type
Electric
Specifications
Length |
4910mm |
|
Width |
1128mm |
|
Height |
1910mm |
|
Loading area |
1000-2000mm |
|
Upper film width |
390mm |
|
Lower film width |
420mm |
|
Max forming depth |
60mm |
|
Lower film reel diameter |
400mm |
|
Upper film reel diameter |
300mm |
|
Reel core diameter |
76mm |
|
Maximum pitch |
350mm |
|
Max pitch with pre-heating station |
350mm |
|
Working efficiency |
3-7cycles/min |
|
Total power |
13KW |
|
Main motor power |
0.75KW |
|
Heating total power |
7KW |
|
Installed power supply (pump excluded) |
9KW |
|
Compressed air pressure |
0.6-0.8MPa |
|
Compressed air consumption |
1.2m3/min |
|
Water consumption |
90L/h |
|
Power supply |
380V, 50HZ, 3PH |
|
Vacuum pump |
Germany BUSCH, 160m3/h |
|
Main electrical equipments |
Germany SIMENS, France Schneider |
|
Weight |
1600kg |
|
Options | ||
1 |
Color film cursor location system |
|
2 |
Automatic coding, ink-jet printing system |
|
3 |
Mould cooling system |
|
4 |
Outfeed conveyor belt |
|
5 |
Modified atmosphere packaging(MAP) |
|
Application scope: Suitable for foods, bean products, meat products, seafood, fruits, vegetables, pickles, medicine products and metal components vacuum packaging
