High Pressure Regulators
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Maharashtra, India
Brand Name:
Sole Safe
Model Number:
SSS-WCE-SSHPR-HPR270
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gas Pressure RegulatorsNegotiableMOQ: 1 -
Loto ProductsNegotiableMOQ: 1
-
Portable Welding Machine ( SUP-WCE-PWM-1602-1 )US$ 10 - 1,700MOQ: 1 Piece
-
Portable Arc Welding Machine ( SUP-WCE-PWM-1602-2 )US$ 10 - 1,700MOQ: 1 Piece
-
AC TIG Welding System ( SUP-WCE-ACTWS-1634A-1 )US$ 10 - 1,700MOQ: 1 Piece
Place of Origin
Maharashtra, India
Brand Name
Sole Safe
Model Number
SSS-WCE-SSHPR-HPR270
Specifications

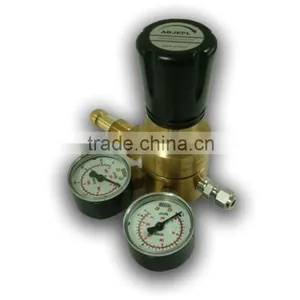

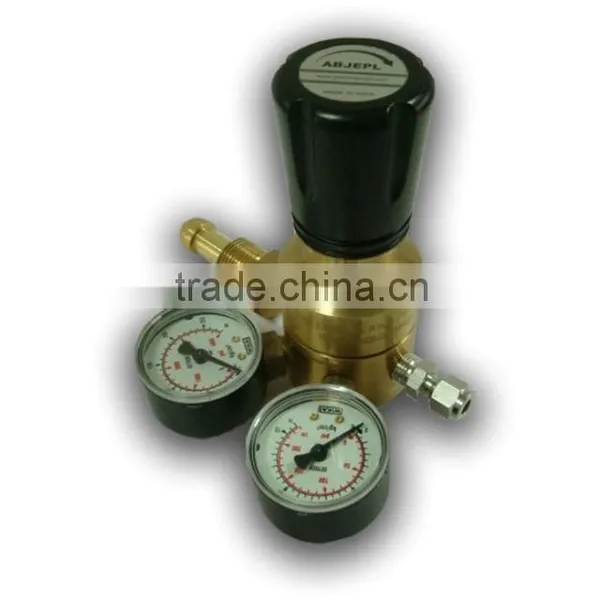

High Pressure RegulatorsSingle Stage High Pressure Regulator
HPR 270 Series is cost effective product equivalent to Concoa 402 series, Tescom 44-2200 series, Go Regulator PR-2 series, Swagelok KPR series.
The HPR -270 series is a brass single stage pressure regulator recommended for use with high purity non-corrosive gases and gas mixtures which would be affected by the absorption and desorption of contaminants from a regulator with a non metallic diaphragm. It is suitable for all such application up to a maximum inlet pressure of 210 bar. Internal surface finish of body is better than 1.6µm with chrome plating as option which allows easier cleaning and lesser particle contamination.
FEATURES & SPECIFICATIONS
- Stainless Steel Diaphragm
- Standard 10µm stainless steel filter at inlet of main valve assembly
- 1.6µm internal surface finish as standard
- Cleaned for Oxygen service
- Bubble tight shut-off
- Inlet pressure:210 bar (3000 psi)
- Outlet range: 0 to 35 bar (500 psi)
- Flow Coefficient: Cv 0.06
- Design Pressure: 1.5 times working pr.
- All connections: 1/4” NPT (F)
- Seat : PTFE / PCTFE
- Max. Operating Temperature
- PTFE – 66° C
- PCTFE – 80° C
- Inlet end connection: 1/4” NPT (F)
- Outlet end connection: 1/4” NPT (F)
