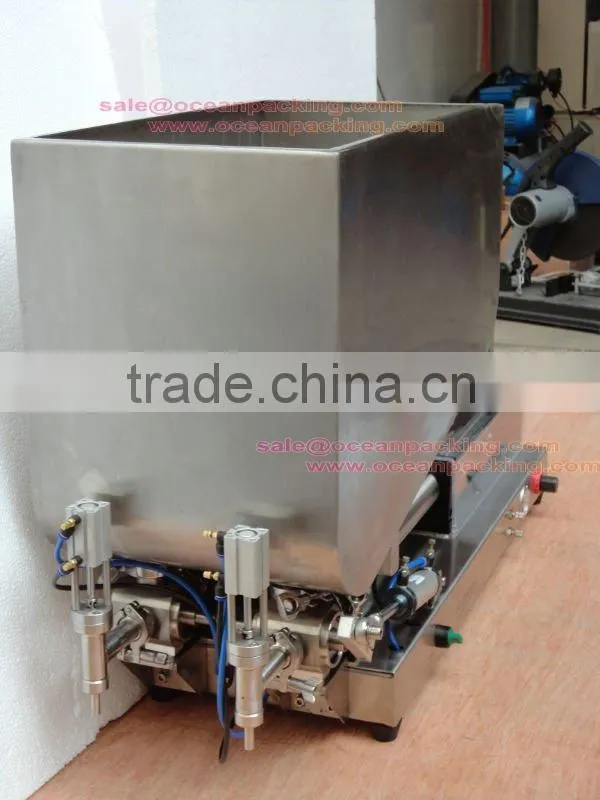

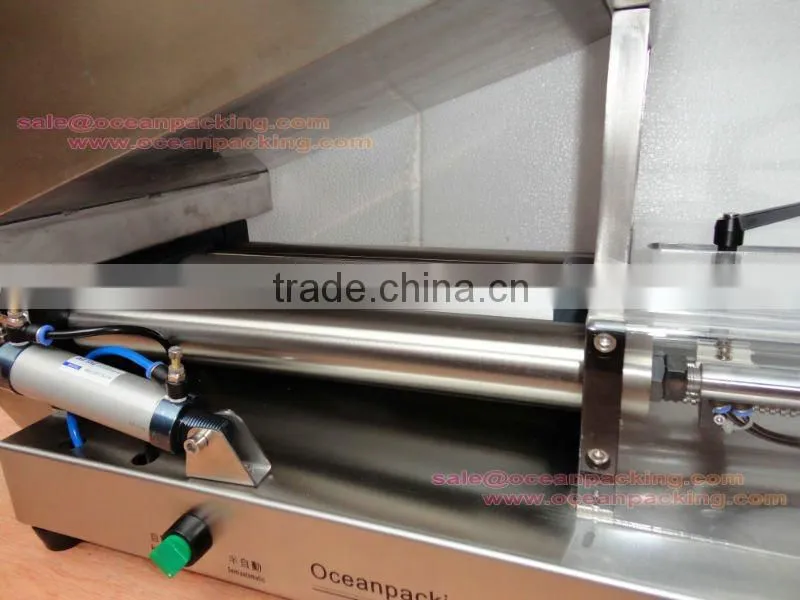

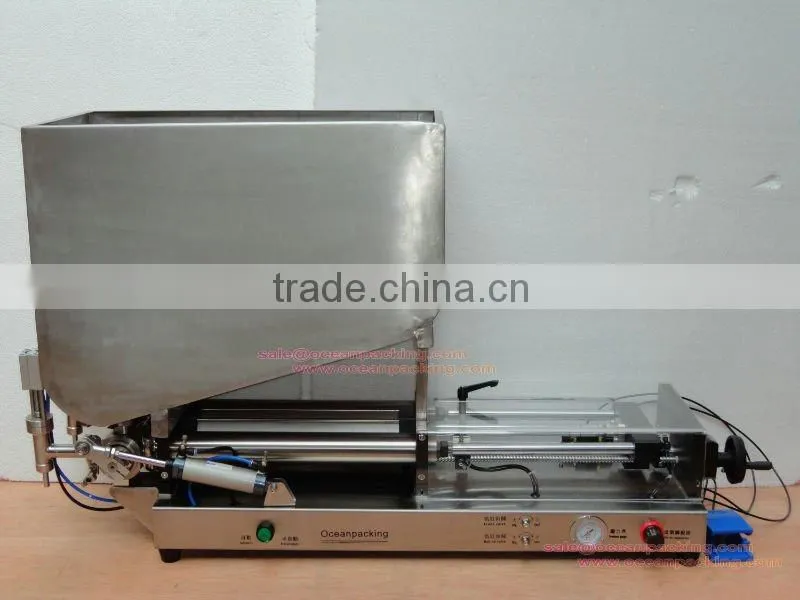

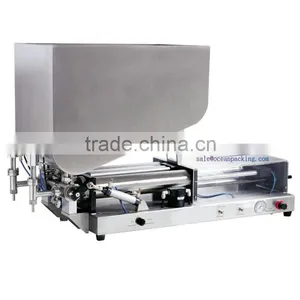

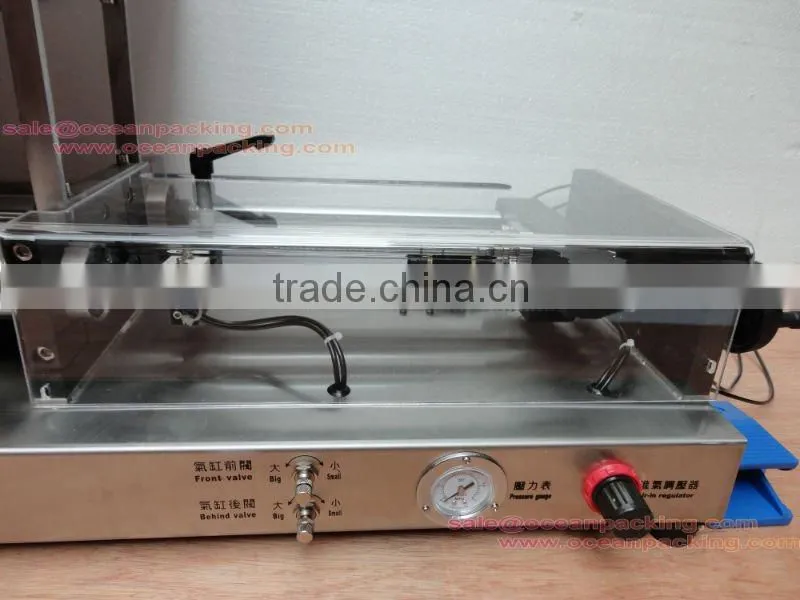

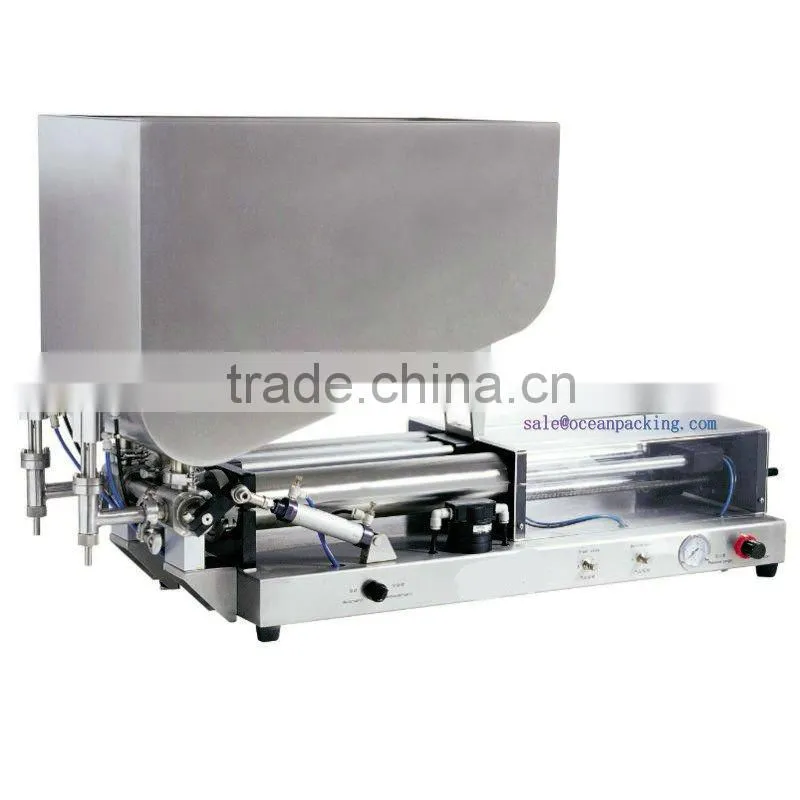

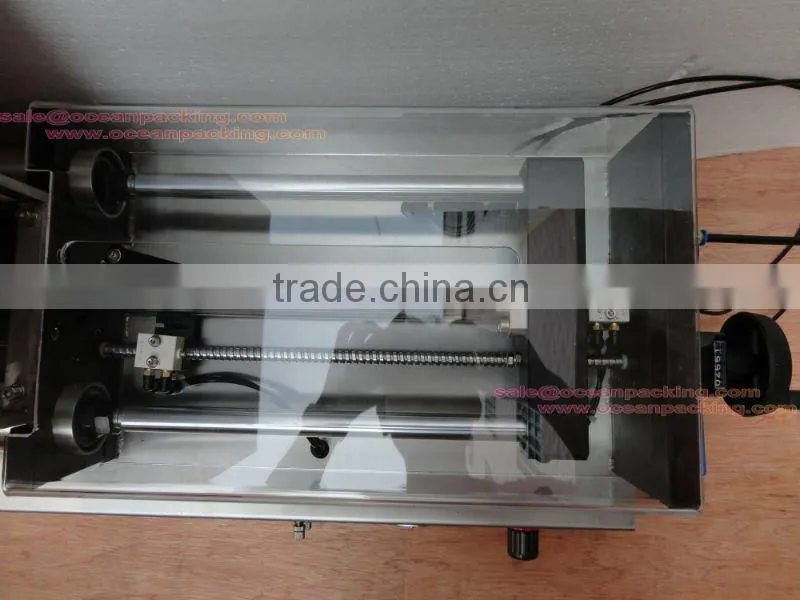

OPFP-2 Pneumatic Semi-automatic Paste Filling Machinery With Two Heads Series:
Feature:
1. suitable for filling viscosity liquid like sauce, jam, shampoo, lotion, perfume, etc with soft
particulate
2. can fill all kind of containers such as bottles, cans, cups, etc
3. Full pneumatic control, easy to operate, remove and clean; ideal equipment for filling
inflammable, explosive materials
4. liquid contacted material use 316L stainless steel, other metals are made of 304 stainless
steel with surface finishing and special treatment which guarantee you very good quality
5. equipped with Airtac cylinder, high filling precision
6. equipped with double filling heads, high filling speed
Technical Data:
MODEL |
OPFP-60-2 |
OPFP-120-2 |
OPFP-250-2 |
OPFP-500-2 |
Filling range |
5-60ml |
10-120ml |
25-250ml |
50-500ml |
Air pressure |
4-6kg/cm2 |
4-6kg/cm2 |
4-6kg/cm2 |
5-8kg/m2 |
Filling speed |
30-60bpm |
30-60bpm |
30-60bpm |
30-60bpm |
Filling precision |
1% |
1% |
1% |
1% |
|
|
|
|
|
MODEL |
OPFP-1000-2 |
OPFP-2500-2 |
OPFP-5000-2 |
|
Filling range |
100-1000ml |
250-2500ml |
500-5000ml |
|
Air pressure |
5-8kg/m2 |
5-8kg/m2 |
5-8kg/m2 |
|
Filling speed |
30-60bpm |
20-50bpm |
10-30bpm |
|
Filling precision |
1% |
1% |
1% |
|
Application:
1) can fill paste, cream, jam, sauce, gel, shampoo, lotion, oil, juice, perfume, ink, water, etc for all containers such as bottles, jars, cans, etc
2) Widely used in cosmetic, drinks, chemical, medical, food industry etc, which
can highly improve productivity and product quality.

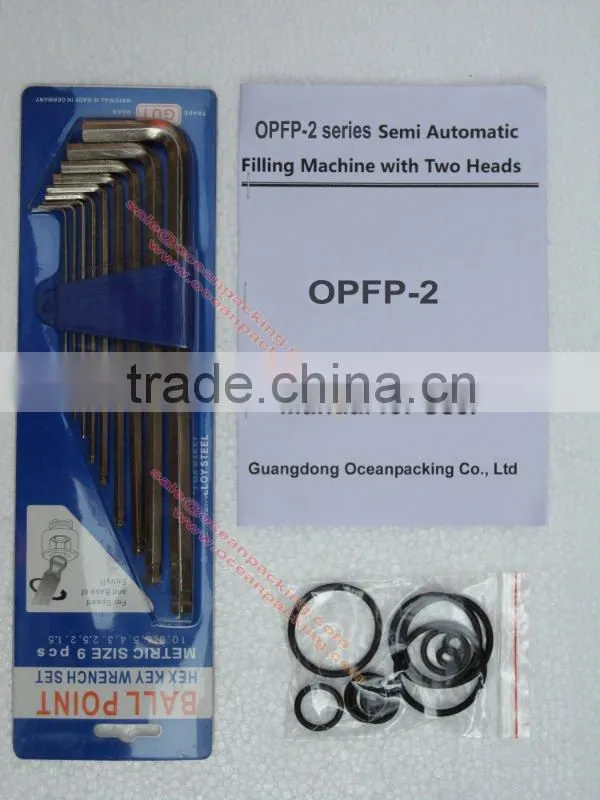

Packaging including:
main machine x 1pcs
hopper x 1pcs
fuse x 3pcs
user manual x 1pcs
quality card x 1pcs
Others:
Lead time: within 5 days
Warranty: one year for whole machine, life time technical support
Packaging: wooden case and foam
Video for this OPFP-2 filling machinery is ready to send, please do not hesitate to contact us!
Other models of this series:
Our main business/products:
1) aluminum foil induction sealing machine
2) liquid/paste filling machine
3) self adhesive labeling machine
4) plastic lids capping machine
Our factory:
