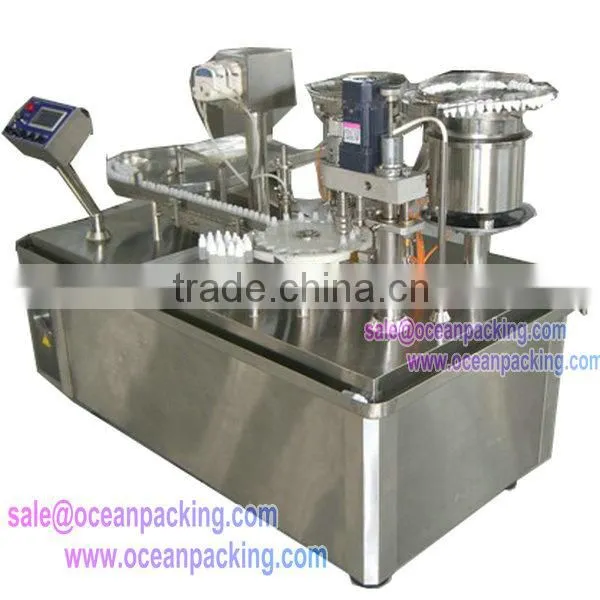

automatic e-liquid filling, plugging and capping machine all in one
Technical Data:
Filling volume |
5-30ml |
Filling head/nozzle |
2 |
Production capacity |
20-50 bottles/min |
Filling accuracy |
≤ ±1% |
Capping rate |
≥99% |
Voltage |
AC220V/50Hz |
Power |
1.5KW |
Air requirement |
50L |
Machine dimension |
1200mm×1200mm×1400mm |
Feature:
1. Filling, plugging, capping all in one, full automatic, high speed.
2. filling machine equips with 316L stainless steel plunger pump, suitable to fill
liquid with various viscosity
3. Pump can be easily removed, easy to clean and sterilize.
4. The pump material will be changeable according to the filling material and industry, such as silicon rubber, TFE, ceramic, or other materials
5. PLC control system, frequency conversion speed controller, full automatic and high speed
6. Flexible filling volume adjustment, can adjust each nozzle separately or all nozzles wholly
7. suitable to fill & cap different bottles with various specification, easy to change bottles in very short time
8. designs according to GMP standard
9. Widely used in cosmetic, drinks, chemical, medical, food industry etc, which
can highly improve productivity and product quality.
Application:
1) can fill various liquids/paste such as shampoo, jam, lotion, gel, oil, juice, perfume, ink, water, etc for bottles, jars, cans, etc
2) Widely used in cosmetic, drinks, chemical, medical, food industry etc, which
can highly improve productivity and product quality.
Packaging including:
main machine x 1pc
fuse x 3pcs
user manual x 1pc
quality card x 1pc
tooling set x 1pc
Others:
Lead time: 30 working days
Warranty: one year for whole machine, life time technical support
packaging: strengthen carton or wooden case
Our main business/products:
1) aluminum foil induction sealing machine including manual sealing machine for small business/home business, tabletop continuous sealing machine medium factory, automatic sealing machine for production line. Our sealers are with high sealing quality which are widely used to seal PET bottles, PP bottles, PVC bottles, PE bottles, HDPE bottles, plastic bottles, glass bottles, etc in cosmetic, drinks, chemical, medical, food industry etc
2) liquid/paste filling machine such as gear pump liquid filling machine, pneumatic semi automatic paste filling machine, automatic filling machine. They are suitable to fill water, beverage, oil, ink, lotion, shampoo, sauce, jam, gel, cream, etc in the field of cosmetic, drinks, chemical, medical, food, etc
3) self adhesive labeling machine like semi automatic labeling machine and full automatic labeling machine which can label all round objects such as bottles, jars, cans, etc and all plane surfaces such as box, bottles, cards, etc. in cosmetic, drinks, chemical, medical, food industry etc
4) plastic lids capping machine including semi automatic capping machine and full automatic labeling machine which can highly improve the productivity and product quality in capping bottles, jars, atomizers etc in the area of cosmetic, drinks, chemical, medical, food etc.
Why choose us:
Guangdong Oceanpacking Co., Ltd is a leading factory in packing machines industry. We produce various packing machines including filling machine, labeling machine, sealing machine, capping machine, conveyor and aluminum foil sealing material etc. Relying on professional technologies, satisfactory services, innovative concept and practical attitude, we specialize in producing and marketing of all kinds of packing machines, as well as management & cooperation. More about us and our products please do not hesitate to contact us.
