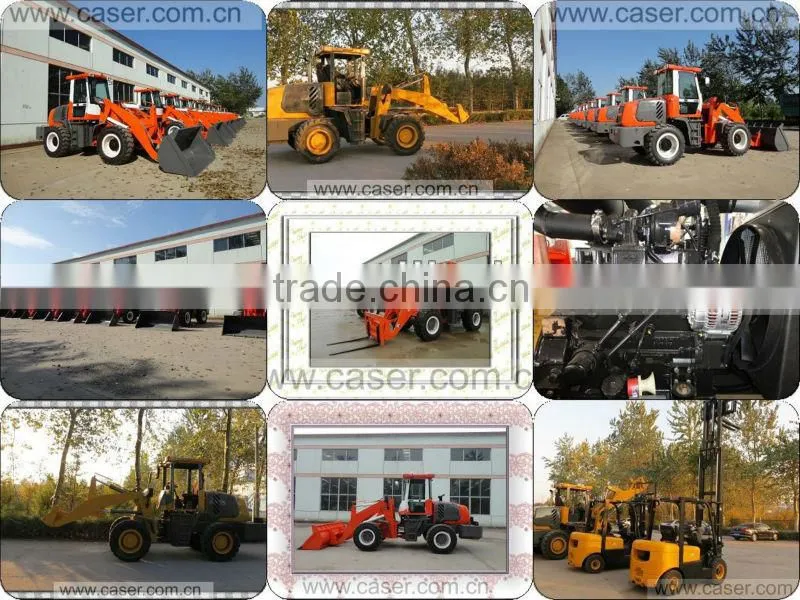

ZL20F Wheel Loader

Name: ZL20F Wheel Loader
Brand: CASER
SKU: 116433669

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

CASER

Model Number:

ZL20F

Qingzhou Caser Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QingDao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name CASER

Model Number ZL20F

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4480*1400*2200

Certification CE

Warranty One Year

Qingzhou Caser Trading Co.,LTD

ZL20F wheel loader parameter:

Model: ZL20F
	Item	Parameters
Performance	1 .Rated Load	2000 kg
	2. Total Weight	6800 kg
	3. Rated Bucket Capacity	1.0 -1.7 m³
	4. Max. Tractive Force	50.8 KN
	5. Max. Breakout Force	≥ 60.8 KN
	6. Max. Gradeability	38°
	7. Dumping Height	3300 mm
	8. Dumping Reach	1300 mm
	9. Raising Time	≤ 6.0 s
	10. Total Cycle Time	≤ 11.5 s
	11. Overall Dimensions (L x W x H)	540019502850 mm
	12. Min. Turning Radius	3300 mm
Engine	13. Model	WEICHAI HUAFENG 4NRSG3/DONGFANGHONG YT4B2-24 /YUCHAI 4105
	14. Type	Four-cylinder, Inline, Water-cooled, Four-stroke Engine
	15. Rated Power	60 kW/60 kW/62 kW
	16. Rated Speed	2400 rpm
	17. Min. Fuel Consumption Ratio	≤ 251.6 g/kW·h
Transmission	18. Hydraulic Torque Converter	ZL280 Integrated Torque Converter
	19. Gear Shift	1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
	20. Max. Speed	25 km/h
Drive Axle	21. Model of Axle	ZL20 Hub Reduction Axle (big)
	22. Wheel Tread	1600 mm
	23. Wheel Base	2440 mm
Drive	24. Mode	4-wheel Drive
Hydraulic System	25. System Working Pressure	20 Pa
Hydraulic System	26. Fuel Tank Capacity	93 L
Brake System	27. Service Brake	Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
Brake System	28. Parking Brake	Flexible Shaft Controlled Disc Brake
Tyre	29. Type Specification	16/70-20
	30. Front Tyre Pressure	0.40 Mpa
	31. Rear Tyre Pressure	0.35 Mpa
