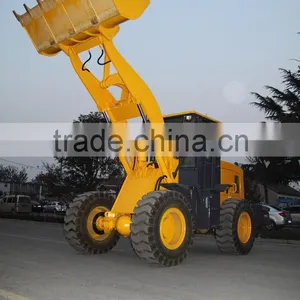

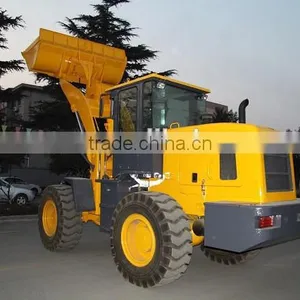

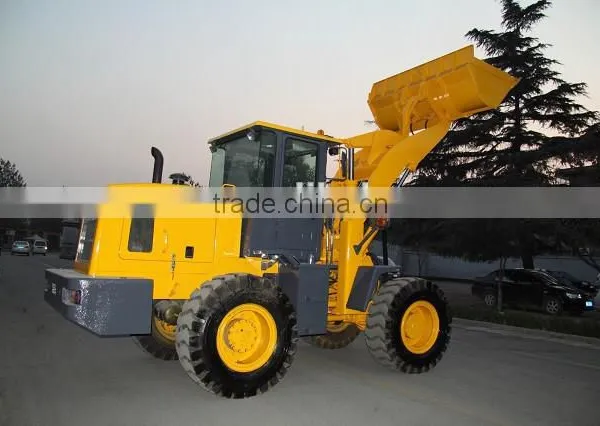

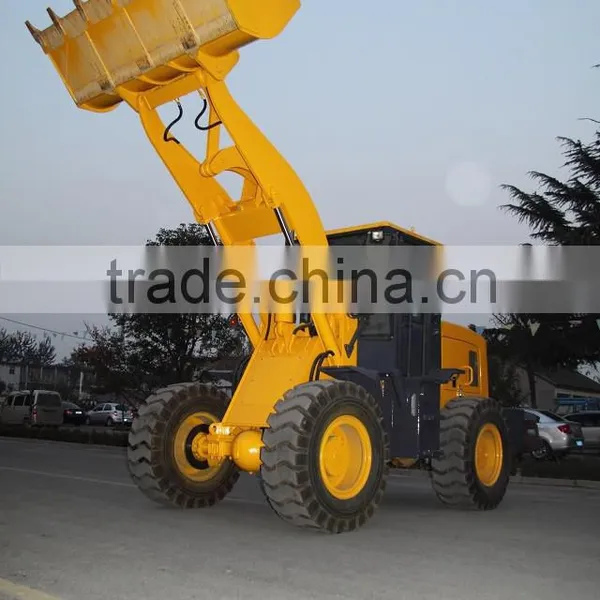

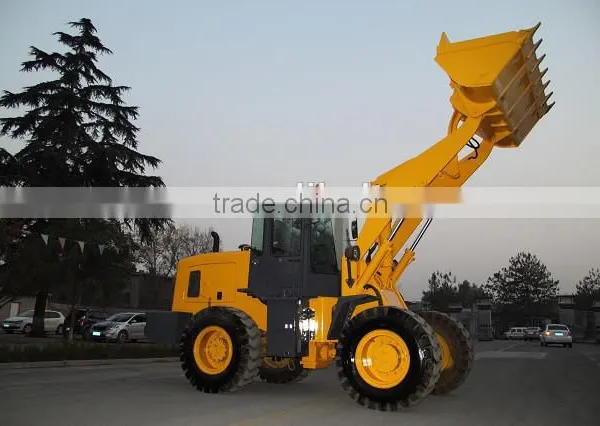

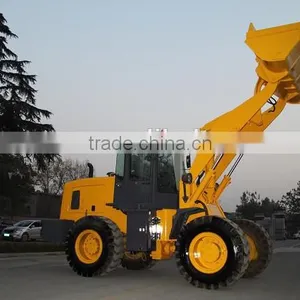

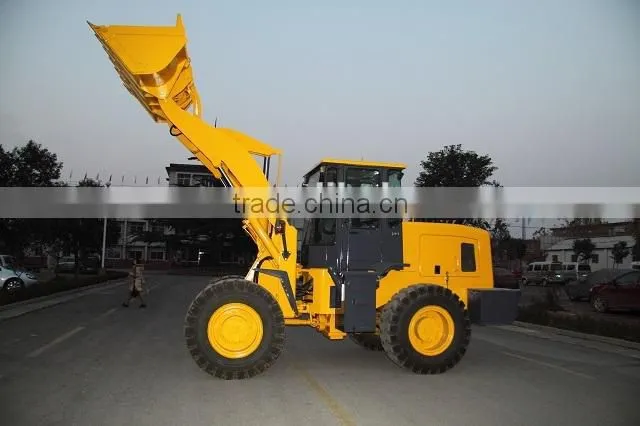

High Quality Mini Wheel Loader ZL30F for Sale With ceUS$ 20,000 - 21,000MOQ: 1 Set -
CASESR WHEEL LOADER ZL30F/3000KG WITH CEUS$ 22,000 - 25,000MOQ: 1 Unit
-
CASESR WHEEL LOADER ZL30F/3000KG WITH CEUS$ 22,000 - 25,000MOQ: 1 Unit
-
CASESR WHEEL LOADER ZL30F/3000KG WITH CEUS$ 22,000 - 25,000MOQ: 1 Unit
-
CASESR WHEEL LOADER ZL30F/3000KG WITH CEUS$ 22,000 - 25,000MOQ: 1 Unit
|
THE TECHNICAL PARAMETERS OF ZL30F CE CERTIFICATE MINI WHEEL LOADER | |||||
Bucket Capacity (m3) |
1.7m³ |
Operating Weight (kg) |
10000kg |
||
Bucket width(mm) |
2600 |
Brake mode |
Four Wheel drive hydraulic discbrake |
||
Rated Load (kg) |
3000kg |
Driving mode |
Four-wheel drive |
||
Max. Breakout Force (KN) |
138 |
Overall Dimensions (mm) |
L:7050xW:2430xH:3120 |
||
Forward Speed 1st (km/h) |
0-12 |
Full Bucket Lifting Time (s) |
5s |
||
Forward Speed 2nd (km/h) |
0-35 |
Total Hydraulic Cycle Time (s) |
11s |
||
Reverse Speed (km/h) |
0-35 |
Tread Width (mm) |
1800 |
||
Max. Dumping Height (mm) |
3200 |
Wheel Base (mm) |
2760 |
||
Max. Dumping Reach (mm) |
1200 |
Min. Clearance Over Ground (mm) |
400 |
||
Min. Turning Radius (mm) |
5700 |
MAX.tilt angel(°) |
40 |
||
Diesel Engine |
Brand |
WEICHAI WP6G125E22 or CUMMINS 6BT5.9-C125 |
Steering System |
Working Pressure (MPa) |
27.5MPa |
Type |
In-line arrangement,water cooled,four-cycle diesel engine |
Max. Steering Angle (°) |
35 |
||
Rated Output (kw) |
92kw |
Working Hydraulic System |
Working Pump Type |
CBGV2100 |
|
Rated Speed (rpm) |
2200rpm |
||||
Engine starting mode |
Electric |
Working Pressure (MPa) |
27.5mpa |
||
Transmission |
Type |
Fixed-spindle Power shift with converter |
Transaxle & Tire |
Rear Axle Oscillation |
Center oscillation |
Rated Input Speed (rpm) |
2200 |
Oscillating Angle Of Rear Axle (°) |
20 |
||
| Packaging Detail: | 1 units in 1' 40HQ,2 units in 1'40HQ and 1'20GP |
| Delivery Detail: | 20 days after receipt of the deposit |
Guaranteed pre-sale, on-sale, after-sale service is our motto, and this kind of service is becoming a basic demand from our customers. We will continue working on our management and rising staff's service image as well as other actions in order to make every customers feel our service slogan—"consider your need,serve by heart".And we have also established a strong web of sale and service and developed a perfect research system of product research and internet operation to ensure that all the new products and services reach market and customers timely and thoroughly
Qingzhou Caser Trading Co., Ltd.
A professional supplier of agricultural and construction machinery, is located in Qingzhou City, China. We are involved in export business of a wide range of Wheel loaders, Forklifts, Excavators, Backhoe loaders, Tractors, Bulldozers and Road rollers and their implements. Our quality products have been exported to over 30 counties in the world and gain good reputations from the clients.
