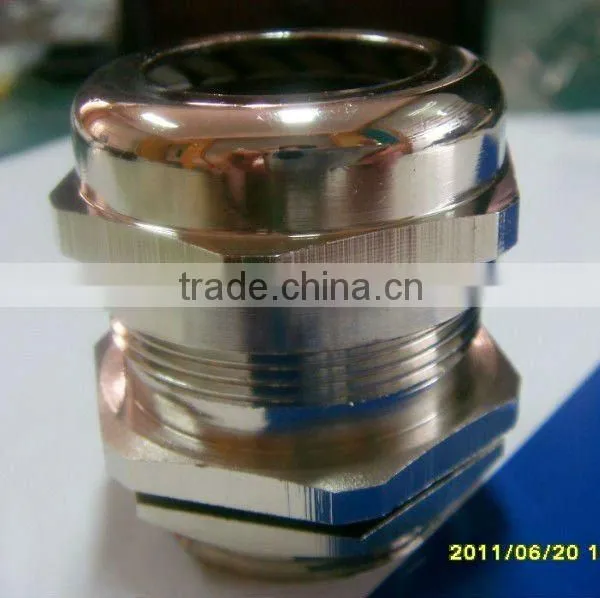

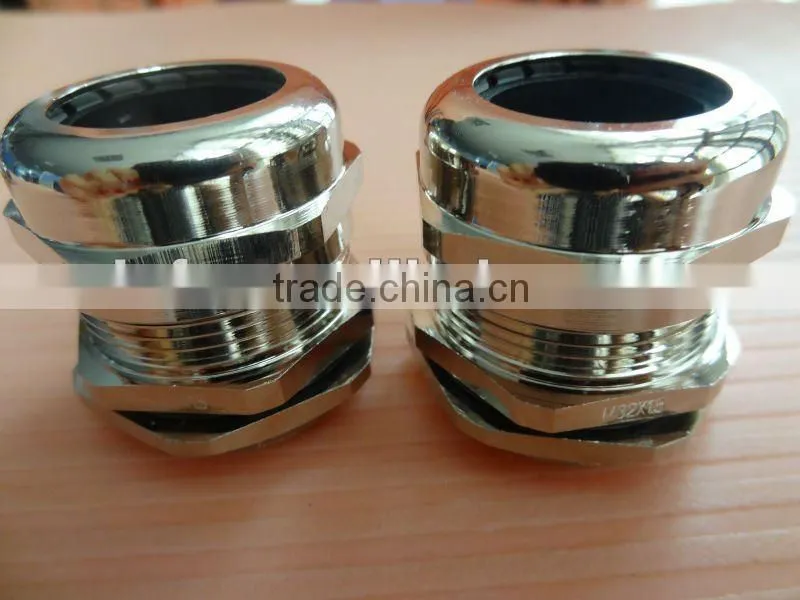

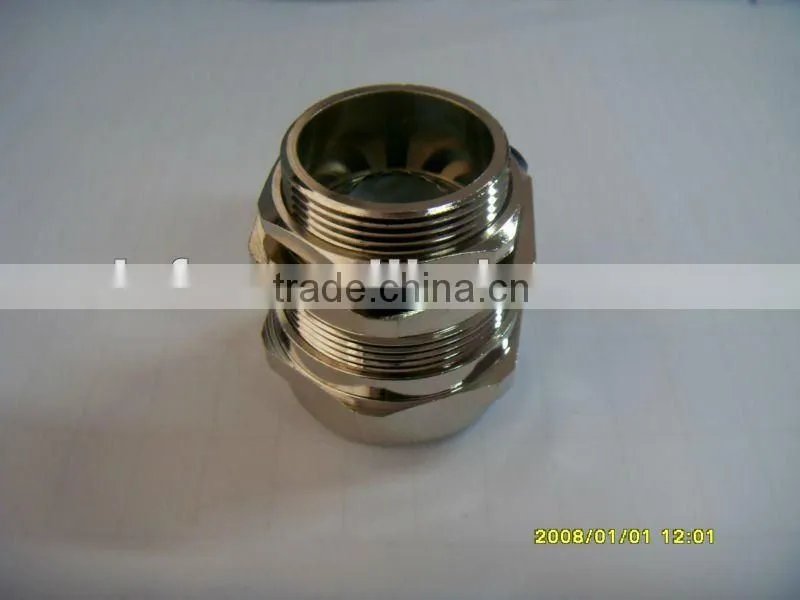

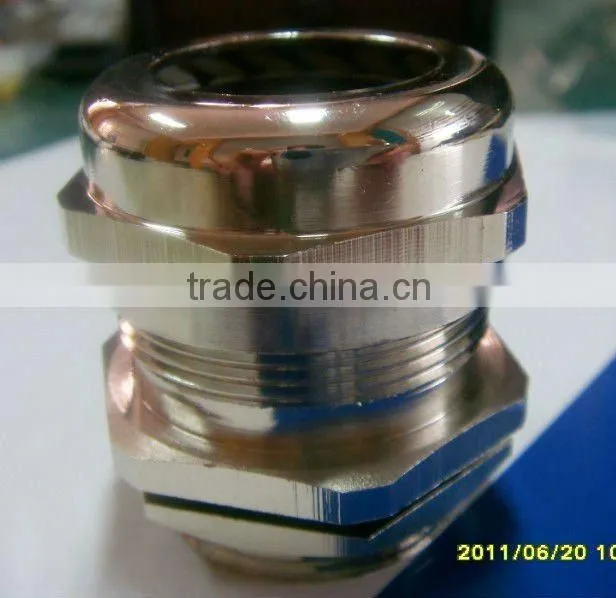

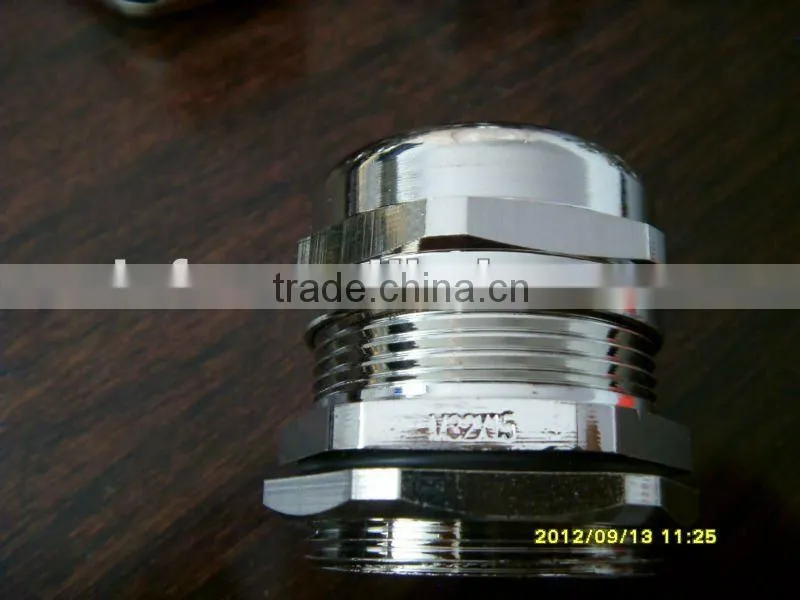

Help CenterEMC Types Metal Cable Gland M63
US$ 0.25 - 38.99
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
INFA
Model Number:
YF
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EMC Types Metal Cable Glands M63 PG13.5US$ 0.25 - 38.99MOQ: 500 Pieces -
IP68 Waterproof Cable Connector PG7 to PG63US$ 0.25 - 38.99MOQ: 500 Pieces
-
IP68 Waterproof Brass Tube ConnectorsUS$ 0.25 - 38.99MOQ: 500 Pieces
-
M8 Cable Glands With IP68US$ 0.25 - 38.99MOQ: 500 Pieces
-
IP68 Brass Cable Cland Lock NutsUS$ 0.25 - 38.99MOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
INFA
Model Number
YF
Type
Other, Cable Gland
Material
Other, Brass, Brass
Nickel Plated Brass Cable Glands
1.Material:Body:nickel-plated brass Seal:Polyamide 66,Sealing:NBR
2.Protection degree: With the Clamping range,its protection degree can reach IP68.
3.Properties:pass ROHS
4.Temperature Range: Stat: Min. -40C,Max. 100C,Short-term 120C
Dyn:Min. -20C,Max. 80C,Short-term 100C
| THREAD | Spec. | Cable Range (mm) |
GL (mm) |
Wrench Size (mm) |
| Metric | M12*1.5 | 3-7 | 6 | 14 |
| M14*1.5 | 3-7 | 6 | 16 | |
| M16*1.5 | 4-8 | 7 | 18 | |
| M18*1.5 | 6-10 | 7 | 20 | |
| M20*1.5 | 8-12 | 8 | 22 | |
| M22*1.5 | 10-14 | 8 | 24 | |
| M24*1.5 | 10-14 | 8 | 27 | |
| M25*1.5 | 10-14 | 8 | 27 | |
| M27*1.5(2) | 13-18 | 9 | 30 | |
| M30*1.5(2) | 13-18 | 9 | 32 | |
| M32*1.5(2) | 15-22 | 9 | 34 | |
| M33*1.5(2) | 15-22 | 9 | 36 | |
| M36*1.5(2) | 18-25 | 10 | 40 | |
| M40*1.5(2) | 22-28 | 10 | 45 | |
| M42*1.5(2) | 22-28 | 10 | 45 | |
| M48*1.5(2) | 25-32 | 10 | 52 | |
| M50*1.5(2) | 25-32 | 10 | 55 | |
| M54*1.5(2) | 32-38 | 12 | 58 | |
| M56*1.5(2) | 32-38 | 12 | 58 | |
| M60*1.5(2) | 37-44 | 12 | 64 | |
| M63*1.5(2) | 37-44 | 12 | 68 | |
| M64*1.5(2) | 37-44 | 12 | 68 | |
| M72*1.5(2) | 42-52 | 15 | 78 | |
| M75*1.5(2) | 42-52 | 15 | 78 | |
| M80*1.5(2) | 55-60 | 17 | 88 | |
| M88*1.5(2) | 65-70 | 18 | 98 | |
| M100*1.5(2) | 75-84 | 22 | 110 | |
| PG | PG7 | 3-7 | 6 | 14 |
| PG9 | 4-8 | 7 | 18 | |
| PG11 | 6-10 | 7 | 20 | |
| PG13.5 | 8-12 | 8 | 22 | |
| PG16 | 10-14 | 8 | 24 | |
| PG21 | 13-18 | 9 | 30 | |
| PG29 | 18-25 | 10 | 40 | |
| PG36 | 25-32 | 10 | 50 | |
| PG42 | 32-38 | 12 | 58 | |
| PG48 | 37-44 | 12 | 64 | |
| PG63 | 43-52 | 15 | 78 | |
| G | G1/4" (NPT1/4") | 3-7 | 6 | 14 |
| G3/8" (NPT3/8") | 4-8 | 7 | 18 | |
| G1/2" (NPT1/2") | 8-12 | 8 | 22 | |
| G3/4" (NPT3/4") | 13-18 | 9 | 30 | |
| G1" (NPT1") | 15-22 | 9 | 36 | |
| G1-1/4"(NPT1-1/4") | 22-28 | 10 | 45 | |
| G1-1/2"(NPT1-1/2") | 25-32 | 10 | 50 | |
| G2" (NPT2") | 37-44 | 12 | 64 | |
| G2-1/2"(NPT2-1/2") | 42-52 | 15 | 78 | |
| G3" (WDT3") | 65-70 | 18 | 98 | |
| Non-Standard | M16*1.5 PG9 G3/8 | 6-10 | 7 | 20 |
| PG13.5 | 6-10 | 7 | 22 | |
| M20*1.5 | 6-10 | 7 | 22 | |
| M20*1.5 PG13.5 G1/2 | 10-14 | 7 | 24 | |
| PG16 | 8-12 | 8 | 24 | |
| M22*1.5 | 8-12 | 8 | 24 | |
| M25*1.5 | 13-18 | 7 | 30 | |
| M32*1.5(2) | 18-25 | 9 | 40 | |
| M40*1.5(2) | 22-32 | 9 | 50 | |
| M50*1.5(2) | 32-38 | 12 | 58 | |
| M63*1.5(2) | 42-53 | 15 | 78 |
...
