Specifications
carbon powder extruder with high quality1. stable performance
2. energy saving
3. high productivity
carbon powder extruder with high quality
1.Principle of Work
Carbon powder extruder can make the powder of carbon to different shapes. The working principle is: The motor transmits power to transmission through the V-belt. At the same time, the transmission output shaft transmits power to propeller through the floating coupling, and the thruster of propeller push forward carbon through forming die to produce the ideal high-pressure carbon-stick.

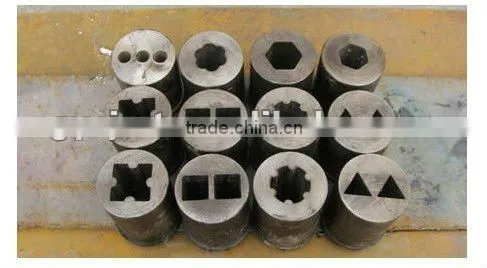

This machine is an perfect equipment which has a good strength to compress the coal into the target shape. The final shapes are flexible, can be hexagonal, round, triangular, square, etc. We can customize them for you. The finished products have different shapes, they can be used as shisha charcoal, BBQ etc.
2.The Main Technical Data and Outsourcing Standard Parts
Type Item |
MBJ140 |
MBJ180 |
MBJ210 |
MBJ300 |
MBJ400 |
|
Capacity |
500kg/h |
1000kg/h |
1500kg/h |
2000kg/h |
3000kg/h |
|
Dimension of final products |
Diameter 20-40mm |
diameter 20-60mm |
diameter 20-80mm |
diameter 20-80mm |
diameter 20-80mm |
|
Spindle Speed |
46-60 rev/min |
39-60 rev/min |
35-60 rev/min |
35-60 rev/min |
35-60 rev/min |
|
Motor |
Y160m-4 11kw |
Y180m-4 18.5kw |
Y200L-4 30kw |
Y225s-4 37kw |
Y315m-4 160kw |
|
Y160L-4 15kw |
Y180L-4 22kw |
Y225s-4 37kw |
Y225m-4 45kw |
|||
Speed reducer |
ZQ350 |
ZQ400 |
ZQ500 |
ZQ650-750 |
ZQ850 |
|
Bearing |
7511,211,210,1305 |
7614,314,313,1206 |
7619,319,318,1206 |
32320,320,319,1207 |
32322,322,321 |
|
Note |
This is the minimum speed of spindle. It can be adjusted on the basis of the current intensity, load and output. |
|||||
The spare parts for extruder machine
