Help CenterChina High Quality Crawler Blast Hole Drilling Rig Machine
Related Products
-
2014 New Hydraulic Mobile Drilling Rigs for SaleUS$ 20,000 - 50,000MOQ: 1 Set -
KY125 Portable Diamond Core Drill MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
2014 New Wagon Diamond Drill RigUS$ 20,000 - 50,000MOQ: 1 Set
-
2014 New Hydraulic Mobile Drilling Machine for SaleUS$ 20,000 - 50,000MOQ: 1 Set
-
China Hydraulic Small Rotary Drilling RigUS$ 10,000 - 60,000MOQ: 1 Set
Specifications
Blast Hole Drilling Rig Machine1. down-the-hole drilling rig
2. open-air drilling rig
3.for blasting rock
Brief introduction of Blast Hole Drilling Rig Machine
Blast hole drilling rig machine are used for two main purposes, exploration drilling which aims to identify the location and quality of a mineral, and production drilling, used in the production-cycle for mining. Drilling rigs used for rock blasting for surface mines vary in size dependent on the size of the hole desired, and is typically classified into smaller pre-split and larger production holes. Underground mining (hard rock) uses a variety of drill rigs dependent on the desired purpose, such as production, bolting, cabling, and tunnelling.
Specification of Blast Hole Drilling Rig Machine
KY100 Blast Hole Drilling Rig Machine:
Model |
KY100 |
Rock rigidity |
f=6-20 |
Dia.of hole |
80-105mm |
Optimum drilling depth |
25m |
Working pressure |
5-12 bar |
Air consumption |
≥10 m3/min |
Rotation speed |
0-65 rpm |
Torque |
983N•M |
Lift power |
15KN |
Dimensions |
4100*2030*2020 mm |
Weight |
3200KG |
Drive system |
YC2108 Engine 33KW Motor |
Recommended air compressor |
LGCY-12/10 |
KY120 Blast Hole Drilling Rig Machine:
Model |
KY120 |
Rock rigidity |
f=6-20 |
Dia.of hole |
80-115mm |
Optimum drilling depth |
25m |
Working pressure |
1.0-1.4Mpa |
Air consumption |
≥13 m3/min |
Rotation speed |
0-65 rpm |
Torque |
1400N•M |
Lift power |
17KN |
Dimensions |
5100*2030*2020 mm |
Weight |
3300KG |
Drive system |
YC2108 Engine 33KW Motor |
Recommended air compressor |
LGCY-13/13 |
KY125:
Model |
KY125 |
Rock rigidity |
f=6-20 |
Dia.of hole |
80-115mm |
Optimum drilling depth |
25m |
Working pressure |
7-17bar |
Air consumption |
≥13 m3/min |
Rotation speed |
0-67 rpm |
Torque |
1400N•M |
Lift power |
17KN |
Dimensions |
4400*2200*2050 mm |
Weight |
3660KG |
Drive system |
YC2108 Engine |
Recommended air compressor |
LGCY-15/13 LGCY-13/13 LGCY-13/17 |
KY130:
Model |
KY130 |
Rock rigidity |
f=6-20 |
Dia.of hole |
105-127mm |
Optimum drilling depth |
25m |
Working pressure |
10-24bar |
Air consumption |
≥15 m3/min |
Rotation speed |
0-70 rpm |
Torque |
2800N•M |
Lift power |
18KN |
Dimensions |
5400*2340*2550 mm |
Weight |
6000KG |
Drive system |
498BG-8 Engine |
Recommended air compressor |
LGCY-15/13 LGCY-18/17 |
…
Any other models ,please contact us!!!!Thanks

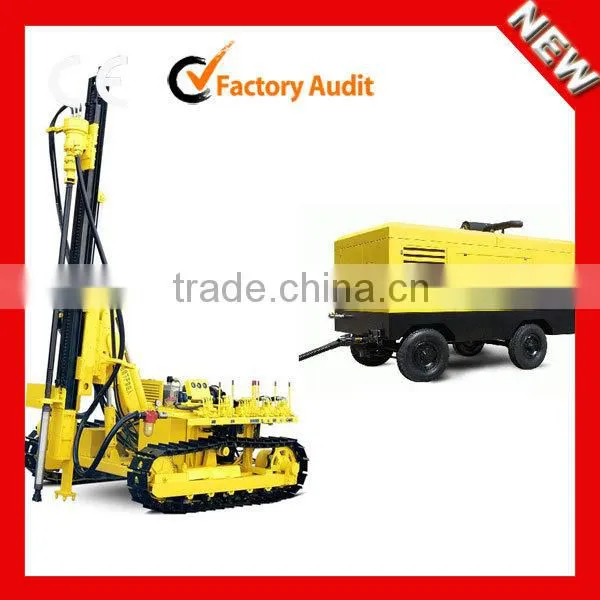

Photos of Blast Hole Drilling Rig Machine
Photo of Rod
Photo of Bit
Photo of air compressor:
Photos of our workshop
Packaging: Standard Container, Nude Packs or in Bulk.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
After sales service of drill rig machie
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
Zhengzhou Zoonyee mining machinery Co.,Ltd has been specialized in this field of mine equipment for decade years.We have many experts and professional technical personnels.We also do technical communication and cooperation with large construction waste treatment equipment manufacturers in Europe.The company insists to innovate and continues to develop products with international leading technology and independent intellectual property rights.Zoonyee company pays attention to the development of new products and new technology,so far the company has won more than 10 invention patents and new national utility patents.
Besides expansion on domestic market,our products have also been exported to Canada, Russia, India,Mongolia,South Africa,Central Asia,Western Asia and other countries and regions.
Our eternal objective is to create the biggest value for our customers.
Any other questions ,please tell us freely.
