Help CenterMv-105 Power Cable 8Kv 3/C Cu/Epr/Cts/CPE ICEA S-93-639/NEMA WC71/UL 1072
Related Products
-
Mv-105 Power Cable 25Kv 3/C Cu/Epr/Cts/CPE ICEA S-93-639/NEMA WC71/UL 1072US$ 1 - 5MOQ: 500 Inches -
NA2XSY, Power Cable, 6/10 KV, Al/XLPE/CWS/CTS/PVC (HD 620/VDE 0276-620)US$ 0.5 - 10MOQ: 500 Meters
-
N2XSEY, Power Cable, 8.7/15 KV, 3/C, Cu/XLPE/Cws/PVC (DIN VDE 0276-620)US$ 9 - 55MOQ: 100 Meters
-
N2XSEY, Power Cable, 12/20 KV, 3/C, Cu/XLPE/Cws/PVC (DIN VDE 0276-620)US$ 9 - 64MOQ: 150 Meters
-
N2XSEY, Power Cable, 18/30 KV, 3/C, Cu/XLPE/Cws/PVC (DIN VDE 0276-620)US$ 12 - 66MOQ: 150 Meters
Features UL Listed as MV-105. True Triple extrusion system and closed handling raw materials system, to eliminate any contact with ambient, until extrusion process ends.
Application Primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried as permitted by NEC.
Standards UL 1072: Medium Voltage Power Cables. ICEA S-93-639/NEMA WC74: 5 kV - 46 kV Shielded Power Cables. ICEA S-97-682: Standard for Utility Shielded Power Cables Rated 5 kV - 46 kV. AEIC CS8: Specification for Extruded Dielectric, Shielded Power Cables Rated 5 kV- 46 kV.
Specifications Maximum operating voltage: 5 kV to 25 kV 100% and 133% IL Maximum conductor operation temperatures: Wet and dry locations, Normal: 105°C, Emergency: 140°C, Short Circuit: 250°C

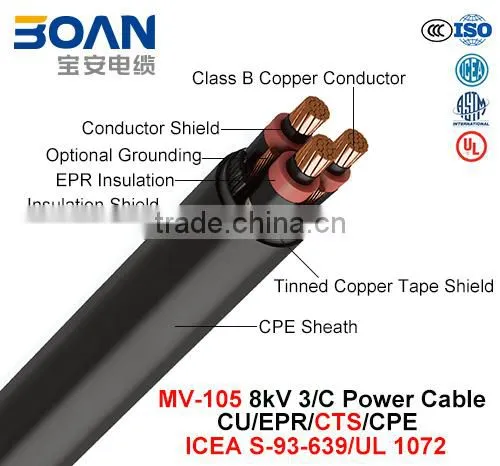

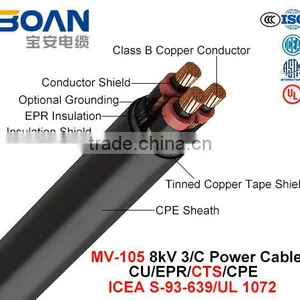

Engineering Information 1. Conductor: Soft annealed uncoated copper compacted Class B per ASTM B496 or hard drawn Aluminum-1350 compacted Class B per ASTM B400. 2. Conductor Shield: Semi conducting cross-linked polyethylene (XLPE). 3. Insulation: Thermoset ethylene propylene rubber (EPR). On request, Amorphous EPR. 4. Insulation Shield: Semi conducting cross-linked polyethylene (XLPE). 5. Metallic Shield: Soft annealed tinned copper tape, 5 mil thick, 25% minimum overlap. 6. Grounding (Optional): One or three tinned copper or covered conductors cabled with phase conductors. 7. Assembly: Conductors cabled with non-hygroscopic fillers, as required and binder tape. 8. Jacket: Black sunlight resistance and flame retardant chlorinated polyethylene (CPE) compound.
| 100% Insulation Levels (115 mil) | 133% Insulation Levels (140 mil) | |||||||||
| Size | Number of Strands | Conductor Nominal | Jacket Thickness | Approximate Outside Diameter | Approximate Net Weight | Jacket Thickness | Approximate Outside Diameter | Approximate Net Weight | ||
| Copper | Aluminum | Copper | Aluminum | |||||||
| AWG of kcmil | in | mil | in | lb/kft | mil | in | lb/kft | |||
| 6 | 7 | 0.17 | 80 | 1.39 | 1108 | 174 | 80 | 1.50 | 1235 | 1061 |
| 4 | 7 | 0.21 | 80 | 1.48 | 1343 | 277 | 80 | 1.59 | 1477 | 1200 |
| 2 | 7 | 0.27 | 80 | 1.6 | 1690 | 441 | 80 | 1.71 | 1833 | 1393 |
| 1 | 19 | 0.30 | 80 | 1.67 | 1955 | 555 | 110 | 1.85 | 2229 | 1674 |
| 1/0 | 19 | 0.34 | 110 | 1.82 | 2364 | 701 | 110 | 1.93 | 2526 | 1824 |
| 2/0 | 19 | 0.38 | 110 | 1.9 | 2717 | 884 | 110 | 2.02 | 2886 | 2002 |
| 3/0 | 19 | 0.42 | 110 | 2 | 3185 | 1115 | 110 | 2.12 | 3361 | 2246 |
| 4/0 | 19 | 0.48 | 110 | 2.12 | 3724 | 1404 | 110 | 2.23 | 3909 | 2505 |
| 250 | 37 | 0.52 | 110 | 2.24 | 4258 | 1661 | 110 | 2.35 | 4452 | 2791 |
| 300 | 37 | 0.57 | 110 | 2.35 | 4851 | 1991 | 110 | 2.46 | 5054 | 3063 |
| 350 | 37 | 0.62 | 110 | 2.44 | 5445 | 2326 | 110 | 2.56 | 5655 | 3330 |
| 400 | 37 | 0.66 | 110 | 2.54 | 6070 | 2656 | 110 | 2.70 | 6384 | 3728 |
| 500 | 37 | 0.74 | 140 | 2.82 | 7510 | 3320 | ||||
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?

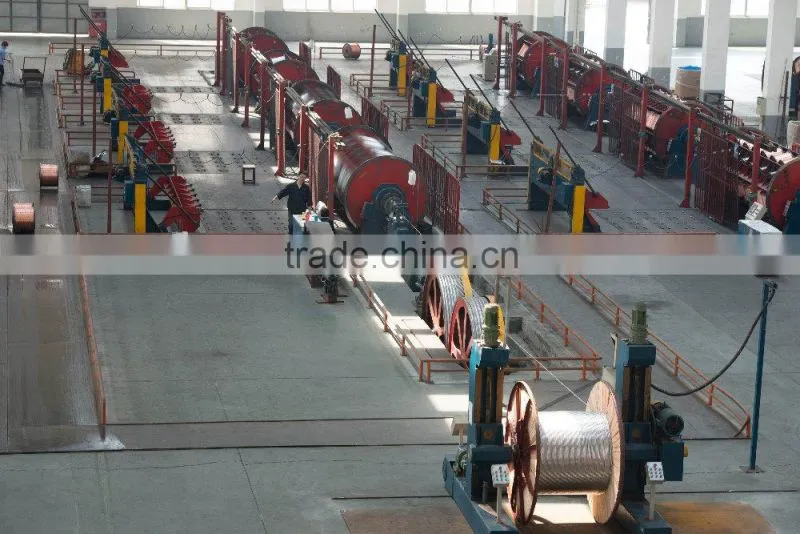

Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
4. How can I get samples?
Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.
5.What is your waranty terms?
The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
