Epoxy Cast Resin Transformer

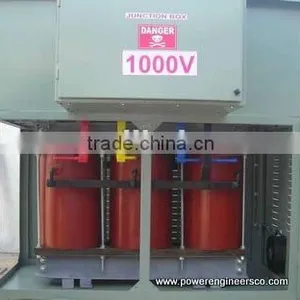

Epoxy Cast Resin Transformer thumbnail-1
Epoxy Cast Resin Transformer photo-1
US$ 1,000 - 100,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Gujarat, India
Brand Name:
PEC
Model Number:
5000
Contact Supplier Request Quote Chat Now
Power Engineers Company
Payment & Shipping
Payment Methods:
Port of Shipment:
mumbai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Gujarat, India
Brand Name PEC
Model Number 5000

Specifications

epoxy cast resin transformer
input 1000 volts
out put 400 volts or as per requirement
capacity 500 kva

EPOXY CAST RESIN TRANSFORMER



Moisture Proof: Complete encapsulation of primary and secondary winding in epoxy resin prevents penetration of moisture into windings. The cast resin offers very good protection against adverse ambient conditions. These transformers can work without disruption of service at 100% humidity.

No leakage or Pilferage of Oil: As cast resin transformers are solidly cast, problem associated with oil filled transformers like oil leakage and pilferage of oil is completely avoided.

Hardly inflammable and self extinguishing: Due to high quality insulation material the transformer is practically non-inflammable by an electrical arc, special fire protection measures are not required.

Impulse Strength : Contrary to the conventional dry type transformers the cast coil transformers are better in respect of impulse voltage withstand strength.

Resistant against temperature Fluctuation: The insulation material used is glass fibre reinforced with epoxy resin of class 'F' which can withstand wide temperature variation.



Free of partial discharge's  No  partial discharges can occur during operation.





 Special Purpose Transformers
The special purpose transformers found their application in areas where the voltage requirement of the machines available differ significantly from the standard voltage. Our special purpose transformers are at the forefront in the industry. We strictly adhere to the international quality standards while manufacturing these transformers. We also entertain custom requirements up to 5000 kva.



POWER is an ISO 9001:2000, DUN BRADSTREET (862376458),   IEC, FGI, DIC, EEPC & NSIC registered company. Having five manufacturing plants in all over India. We are engaged in the manufacture of Industrial Transformers up to  10 MVA (Epoxy Cast Resin Construction, Dry Type, Oil Cooled) low and medium voltage, Industrial Automatic Voltage Stabilizer ranging up to 7000 KVA capacity (U.K. based Brentford type), Variable voltage supply (0 – 33000 Volts), Special Purpose Transformers (step up / step down, auto transformers, Ultra Isolation Transformers), Rectifier equipments from 0-1500 Volts and up to 25,000 Amps. for Industrial applications.



  LOSSES OF CAST RESIN TRANSFORMER
RATED POWER VOLTAGE  NO LOAD LOSSES LOAD LOSSES WEIGHT  DIMMENTION                                         IN    MM
KVA KV  W W KG.  L W H

100 12 320 1600 760 1230 70 890
  24 400 1500 830 1300 755 940
160 12 440 2300 920 1290 720 1050
  24 580 2200 940 1310 720 1095
250 12 600 3000 1170 1330 730 1135
  24 800 2900 1230 1400 735 1150
  36 1300 3800 1700 1900 900 1350
315 12 720 3300 1320 1380 820 1195
  24 930 3400 1400 1440 825 1205
  36 1450 4500 1900 1950 920 1400
400 12 880 4300 1430 1380 820 1290
  24 1100 3900 1570 1460 830 1280
  36 1700 5100 2100 2000 920 1440
500 12 1350 4900 1520 1410 830 1320
  24 1270 4800 1830 1540 840 1350
  36 1900 6000 2600 2050 940 1500
630 12 1150 6400 2070 1470 835 1505
  24 1500 6000 2100 1600 850 1400
  36 2200 7000 2900 2070 940 1650
800 12 1450 7800 2430 1590 855 1640
  24 1600 7500 2550 1650 855 1620
  36 2600 8200 3300 2140 950 1850
1000 12 1650 8900 2850 1620 990 1795
  24 1850 8700 3060 1680 990 1815
  36 3000 9500 3900 2200 1050 1900
1250 12 1850 10500 3370 1790 990 1705
  24 2100 10500 3490 1850 990 1675
  36 3500 11000 4500 2300 1060 2000
1600 12 2100 11400 4170 1880 1005 2065
  24 3100 11800 3640 1880 995 2035
  36 4300 12700 5600 2500 1100 2400
2000 12 2650 14500 5140 1990 1280 2205
  24 3000 14900 4920 2040 1280 2180
  36 5100 15400 6300 2500 1280 2400
2500 12 3000 18400 6230 2170 1280 2205
  24 3600 18000 6220 2220 1280 2180
  36 6400 18700 7900 2700 1280 2400

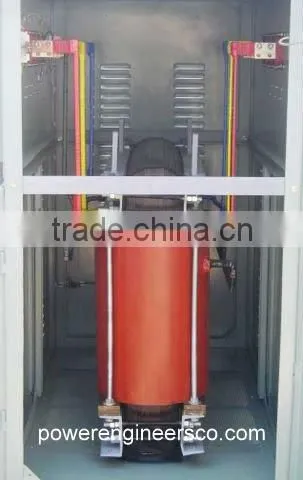

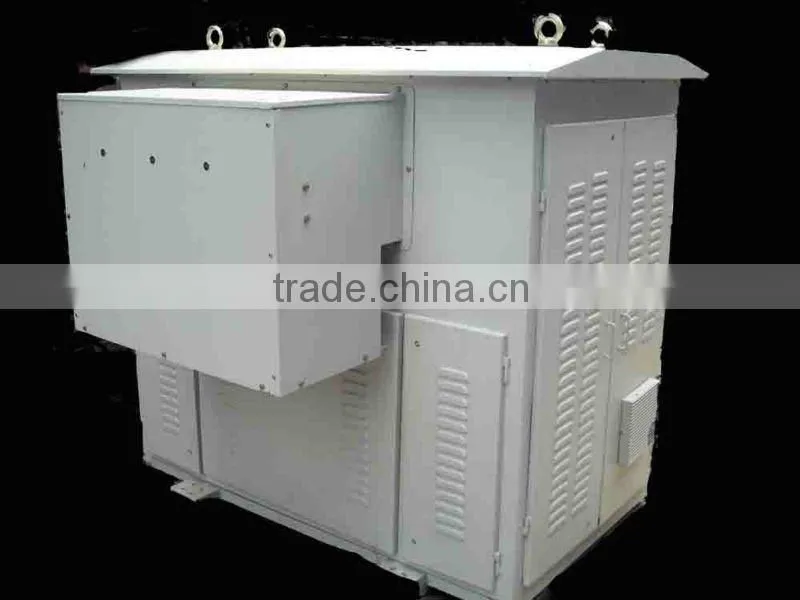

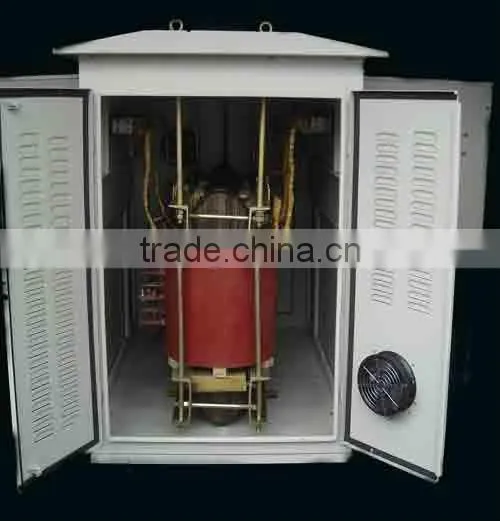

epoxy cast resin transformerepoxy cast resin transformerepoxy cast resin transformer
