Specifications
cast resin transformer 1500 kvainput 11000 volts
out put 1000 volts or as per requirement
capacity 1500 kva

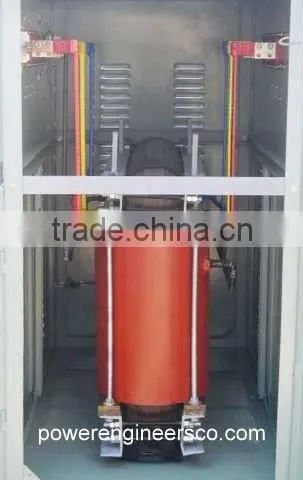

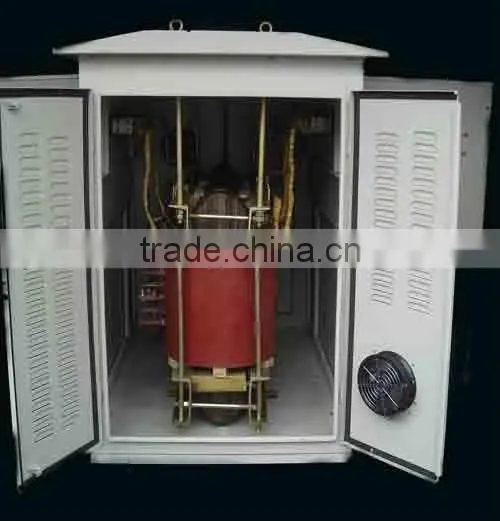

cast resin transformer 1500 kva
AUTOMATIC VOLTAGE REGULATOR
EPOXY CAST RESIN TRANSFORMER
VARIABLE VOLTAGE TRANSFORMER
DRY-TYPE CAST RESIN TRANSFORMER
POWER DISTRIBUTION TRANSFORMER
INDUSTRIAL AUTOMATIC VOLTAGE CONTROLLER
RECTIFIER TRANSFORMER
ISOLATION TRANSFORMER
POWER is an ISO 9001:2008, DUN BRADSTREET (862376458), IEC, FGI, DIC, EEPC & NSIC registered company. Having five manufacturing plants in all over India. We are engaged in the manufacturing of Industrial Transformers up to 10 MVA (Epoxy Cast Resin Construction, Dry Type, Oil Cooled) low and medium voltage, Industrial Automatic Voltage Stabilizer ranging up to 7000 KVA capacity (U.K. based Brentford type), Variable voltage supply (0 – 33000 Volts), Special Purpose Transformers (step up / step down, auto transformers, Ultra Isolation Transformers), Rectifier equipments from 0-1500 Volts and up to 25,000 Amps. for Industrial applications.
| Packaging Detail: | Wooden Cases |
| Delivery Detail: | Within 30 Days |
WOODEN PACK SUITABLE FOR SEA or AIR.
automatic voltage regulator, which primarily consists of the following features :
-
Linear, plus / minus type vertical rolling contact voltage regulator
For making these regulators, we use heavy section of electrolytic grade rectangular copper strip instead of copper wire in order to minimize the losses & increase the efficiency of equipment. We also employ self lubricating Carbon Roller Assemblies instead of ordinary Carbon Brushes that offers more reliability and trouble free performance of the equipment. -
Double wound buck / boost type series transformer
In our Buck / Boost transformer, we make use of CRGO lamination to reduce iron losses. The coils of Buck / Boost transformer are wound with heavy section of multi strips electrolytic copper to minimize copper losses to get better efficiency of the equipment. -
Electronic control circuit and meter panel
Automatic Voltage Controller usually consists of very simple electronic control voltage circuit for monitoring and controlling voltage, repair and maintenance of which is very easy. The regulator and Buck / Boost transformer are oil cooled, placed in same or separate sheet steel tanks. These devices are provided with radiators for effective cooling. The coils of voltage regulators & Buck / Boost Transformers are vacuum impregnated and oven dried as per IS.
We have a commitment to provide an UNCONDITIONAL FIVE YEAR GUARANTEE for all the EQUIPMENTS supplied by us in INDIA. After sales service is the backbone of our organisation.
For outside india we will provide one year warranty.
SPECIAL PURPOSE EPOXY CAST RESIN TRANSFORMER
Moisture Proof: Complete encapsulation of primary and secondary winding in epoxy resin prevents penetration of moisture into windings. The cast resin offers very good protection against adverse ambient conditions. These transformers can work without disruption of service at 100% humidity.
No leakage or Pilferage of Oil: As cast resin transformers are solidly cast, problem associated with oil filled transformers like oil leakage and pilferage of oil is completely avoided.
Hardly inflammable and self extinguishing: Due to high quality insulation material the transformer is practically non-inflammable by an electrical arc, special fire protection measures are not required.
Impulse Strength : Contrary to the conventional dry type transformers the cast coil transformers are better in respect of impulse voltage withstand strength.
Resistant against temperature Fluctuation: The insulation material used is glass fibre reinforced with epoxy resin of class 'F' which can withstand wide temperature variation.
Free of partial discharge's No partial discharges can occur during operation.
Special Purpose Transformers
The special purpose transformers found their application in areas where the voltage requirement of the machines available differ significantly from the standard voltage. Our special purpose transformers are at the forefront in the industry. We strictly adhere to the international quality standards while manufacturing these transformers. We also entertain custom requirements up to 5000 kva.
