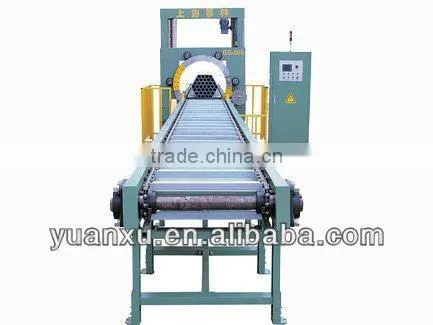

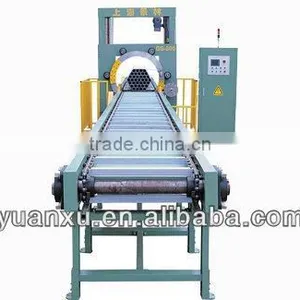

YK-S450 Horizontal wrapping packaging machinery
1.Horizontal wrapping machine
2.250-400%stretch film
3.horizontal wrapping object with pre-stretch film
4.all industrial
5.CEcertification
YK Series Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged. Additionally , wrapped loads can easily be separated and identified.
Horizontal wrapper wraps products that won`t fit on a turntable, require banding, compression or extra packing for shipment. It has a proven record of success in many industries such as profiled product, tubular product and plank stuff etc. We offers a wide variety of options to meet your specific requirements. Each applications is evaluated to provide the right solution to your needs
performance and feature:
Powered conveyor system,cylinder control to clamp the packed the product ;
Mechanical arm matched with brake motor to en-longevity the equipment;
With adjustable tight film carriage,film clamp device easily in use.
Infeed and outfeed product photocells detection during running process automatically ,
Omron PLC Control system;
Film packing layers,times adjustable(Cycle pause capability;)
Pneumatic grab,attach and cut the film tails automatically
Pneumatic infeed and outfeed top pressure unit
Manually adjustable infeed and outfeed side guides
Film carriage friction brake system
Door safety device to protect the operators
Ring sizes, ring speeds, additional conveyor and conveyor types optional
Third Component List Annexed
Main Parts Lists
3-1 Main Body Machine
1.1 gear wheel reduction motor (main drive of cirque parts) ( Taiwan ) TWT
1.2 cam gear motor drive of conveyor system ( china ) TY
1.3 GB1243.1-83 infeed & outfeed chains 08B-1 ( china )
1.4 6202 bearing ( china )
1.5 6203 bearing ( china )
1.6 6213 bearing ( china )
1.7 UCP215(202) out sphere bearing ( china )
1.8 628-2Z bearing ( china )
