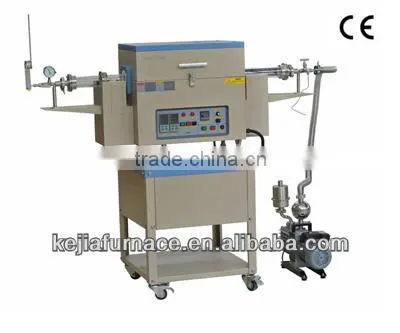

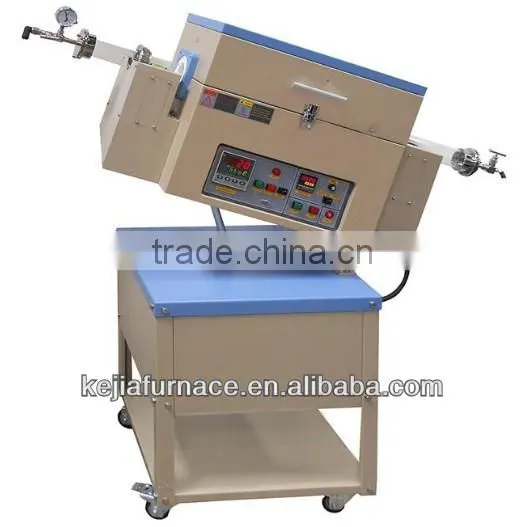

Lab Rotary Tube Furnace for Li-on Battery Cathode Materials
US$ 1,200 - 9,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Kejia
Model Number:
lab rotary tube furnace
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou Qingdao etc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lab Rotary Tube Furnace for Powder Material CalcinatingUS$ 1,200 - 9,800MOQ: 1 Set -
Intelligent Lab Rotary Tube Furnace for Powder Material CalcinatingUS$ 1,200 - 9,800MOQ: 1 Set
-
Lab Rotary Tube Furnace With Quartz Tube Muffle FurnaceUS$ 1,200 - 9,800MOQ: 1 Set
-
Copper Scrap Smelting Furnace Uniform Smelting Furnacedirect Heated Smelting FurnaceUS$ 1,200 - 8,700MOQ: 1 Set
-
Less Power Consuption Gold Smelting Furnace Uniform Smelting Furnacedirect Heated Smelting FurnaceUS$ 1,200 - 8,700MOQ: 1 Set
Brand Name
Kejia
Model Number
lab rotary tube furnace
Place of Origin
Henan, China
Specifications
Lab rotary tube furnaceHeated by resistance wire
High purity alumina fiber for insulation
Size can be customized
KJ1200RTF rotary tube furnace

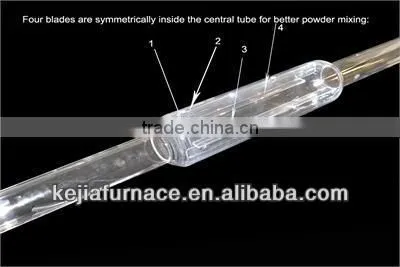

1.tube 360 degree revolving
2.high temperature:1100
grammable control
4.lower price
KJ-1200RTF rotary tube furnace is designed for calcining inorganic compound with better uniformity, especially excellent for preparing Li-ion battery cathode materials with conductive coating, such as LiFePO3, LiMnNiO3, etc in R&D Laboratory.
Specification of rotary tube furnace:
|
Tube Size
|
dia 40/50/60/80/100mm |
| Heat zone No.and length | 300mm or 450mm length |
Max. Working Temperature |
1200°C |
Standard working temperature |
1100°C |

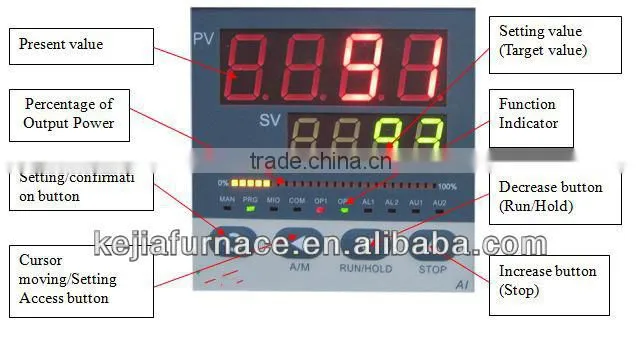

Temperature Control |
30 segments programmable and PID auto control |
Heating rate |
0~20 oC / min (suggestion at =< 5 oC) |
| Tube rotating speed | 0-7RPM variable |
| Furnace tilt angle | 0-30°variable |
Temperature accuracy |
± 1°C |
Heating Element |
Fe-Cr-Al-Mo resistance wire |
