Durable but not Expensive Big jaw Crusher/Small Jaw Crusher and Medium Jaw Crusher :

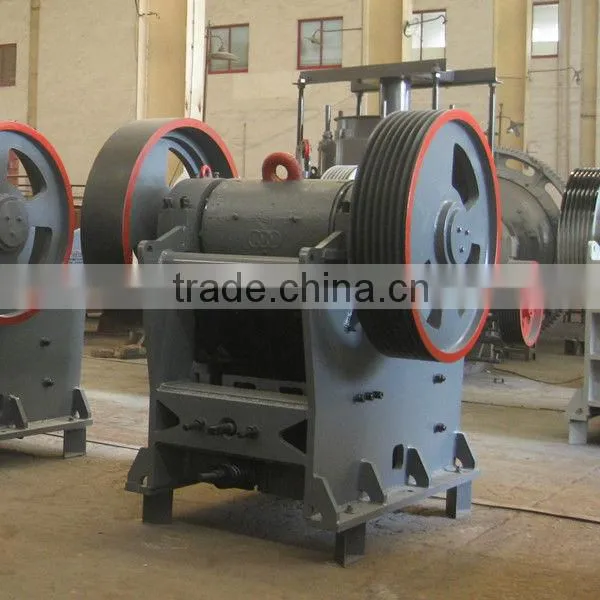

Shanghai Dingbo Stone Jaw Crusher:
Shanghai Dingbo Machinery Co., LTD specializes in manufacturing, developing and selling stone jaw crusher of various models.With the communication and cooperation among international mechanical technologies ,advanced German machine and our domestic creation and invention, Dingbo Jaw crusher has been improved greatly in its perfect quality service and high efficient energy-consumption reduction.
The Stone Crusher Machine/Rock Crusher/Jaw Crusher has features of big crushing ratio,uniform product size,simple structure,reliable work,easy maintenance and low cost. It is widely used in stone mining, metallurgy industry,building material,highway,water conservancy and chemical industries. Various material with compression resistance less than 320MPa can be crushed.
not Expensive Big jaw Crusher/Small Jaw Crusher and Medium Jaw Crusher Decription:
Stone Crusher Machine/Jaw Crusher is one of the most popular stone-crushing equipments in the world. It is ideally suitable for primary and secondary crushing processing machine selection. The highest anti-pressure strength of crushed material is 320MPA.
Based on many years' experience and technology development, Dingbo jaw crusher series are of 8 different types, which can meet most of the crushing requirements in primary and secondary crushing. Flexible discharge opening setting of jaw crusher allows perfect match with relative equipments. Dingbo jaw crushing machine is easy to install, operate and maintain. As each feedback, our experts will make continuous improvements on our products to meet customers' different needs. Primary Jaw Crusher is widely used in fields of mining, metallurgy, construction, smelting, hydropower and chemical industries etc.
Working Principle:
Jaw crusher working type is of moving and squeezing. The working principle is as follows: jaw crusher uses motor as its power. Through the motor’s wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the material in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be discharged through the discharging opening.
Jaw crusher mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring. The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come close to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw.
To Gurantee the working efficiency, the SIEMENS MOTORS are applied:
After Sale Service of Big Jaw Crusher/Small Jaw Crusher and Medium Jaw Crusher :
1. We will give the most suitable survice to customers according to their requirements.
2. Assist clients to prepare for the first construction scheme, we will supply the Machine Base drawing and Installation manual.
3. For the Installation, we will dispatch two or three engineers to guide the installation, take the trial test, train your workers, debug the equipment, adjust the capacity etc. if you need.
4. The regular inspection and maintenance will be supplied on time.
Jaw Crusher Models:
Model |
Feeding Opening Size (mm) |
Max Feeding Size (mm) |
Adjustment Range of Discharge Openin (mm) |
Capacity (t/h) |
Electric Motor(kw) |
Overall Dimension(mm) |
Weight (t) |
|||
PE250×400 |
400×250 |
210 |
20-80 |
5-20 |
15 |
1450×1315×1296 |
2.8 |
|||
PE400×600 |
600×400 |
350 |
40-100 |
15-65 |
30 |
1700×1732×1653 |
6.2 |
|||
PE500×750 |
750×500 |
425 |
50-100 |
45-110 |
55 |
2035×1921×2000 |
11 |
|||
PE600×900 |
900×600 |
500 |
65-140 |
90-180 |
55-75 |
2290×2206×2370 |
16 |
|||
PE750×1060 |
1060×750 |
630 |
80-160 |
110-320 |
110 |
2655×2302×3110 |
29 |
|||
PE900×1200 |
900×1200 |
750 |
220-500 |
200-400 |
132 |
3380×2870×3330 |
54.5 |
|||
PE1000×1200 |
1200×1000 |
850 |
195-260 |
220-450 |
160 |
3480×3876×3330 |
58 |
|||
PE1200×1500 |
1500×1200 |
1020 |
150-300 |
400-800 |
180-220 |
4200×3750×3820 |
100.9 |
|||
Welcome to contact us!
Trust your judgements and look forawrd to your selection. I wish our cooperation a pleasant one!
