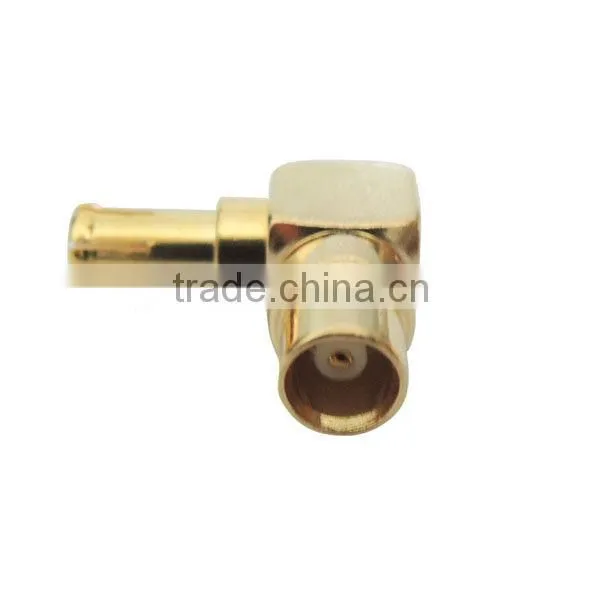

Rihgt Angle MCX Male to MCX Female RF Adapter
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DM, DM
Model Number:
rihgt angle MCX male to MCX female RF adapter
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RF Adapter N Male to SMA Female Straight ConnectorUS$ 5,000 - 1,000,000MOQ: 100 Pieces -
BNC Female to UHF Male PL-259 Coaxial Cable RF Adapter ConnectorNegotiableMOQ: 100 Pieces
-
Double Female N Type Bulkhead ConnectorNegotiableMOQ: 100 Pieces
-
Good Quality IEC Male to F Female Coaxial Connector AdapterUS$ 5,000 - 100,000MOQ: 100 Pieces
-
N Male to UHF Female Coax RF Adapter ConnectorUS$ 5,000 - 1,000,000MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
DM, DM
Model Number
rihgt angle MCX male to MCX female RF adapter
Type
Other, Adapter, rihgt angle MCX male to MCX female RF adapter
Application
Other, RF, RF
Gender
Other, female/male, male/female
rihgt angle MCX male to MCX female RF adapter
| Key Performance | ||||||
| Temperature range | -65~+155 | Insulation resistance | ≥1000MΩ | |||
| Characteristic impedance | 50Ω/70Ω | Dielectric Withstanding voltage | 750V(r ms) | |||
| Frequency range | 0~6GHz(50Ω) |
VSWR | ≤1.20(50Ω) |
|||
| 0~1.5GHz(75Ω) | ≤1.35(75Ω) |
|||||
| Voltage rating |
335V(r ms) |
Insertion loss | 0.1dB at 1GHz |
|||
| Contact resistance |
Center conductor |
≤5mΩ |
Durability | 500 Cycles |
||
| Outer conductor |
≤2.5mΩ |
|||||
| Material And Plating | ||||||
| Body | Brass , gold plated | |||||
| Male center contacts | Brass , gold plated | |||||
| Female center contacts | Beryllium copper ,gold plated | |||||
| Insulators | PTFE | |||||
| Gaskets | Cooper alloy,nickel or gold plated | |||||
| Crimp ferrules | Beryllium copper ,gold plated | |||||
