RF Adapter BNC Female to BNC Female Coaxial Connector

Name: RF Adapter BNC Female to BNC Female Coaxial Connector
Brand: DM, DM
SKU: 116725537

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

DM, DM

Model Number:

RF adapter BNC female to BNC female coaxial connector

Zhenjiang Dongming Telecom Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name DM, DM

Model Number RF adapter BNC female to BNC female coaxial connector

Type Other, Adapter, RF adapter BNC female to BNC female coaxial connector

Application Other, RF, RF

Gender Other, Female, female

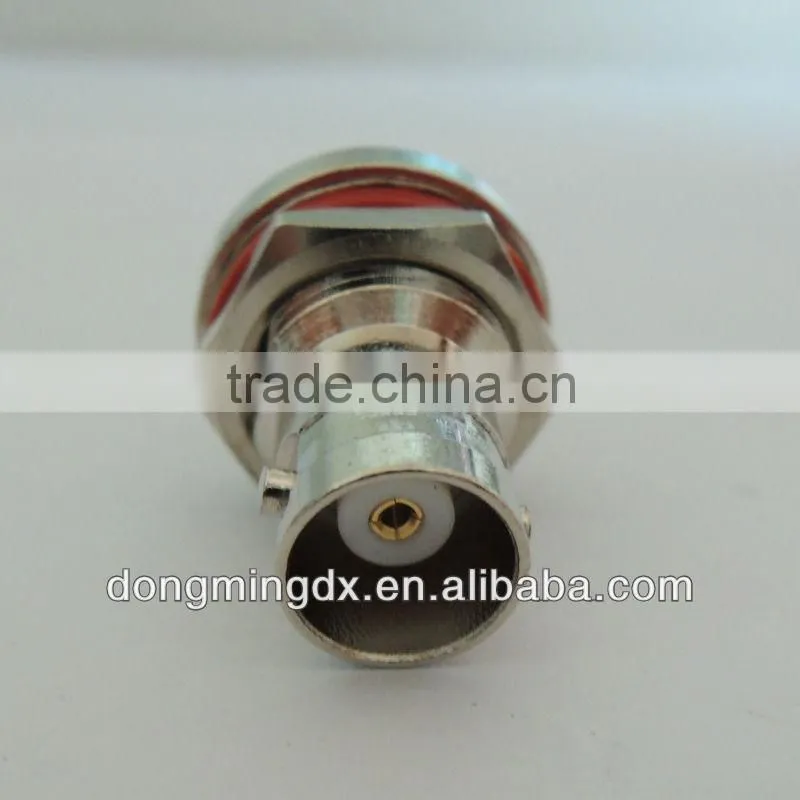

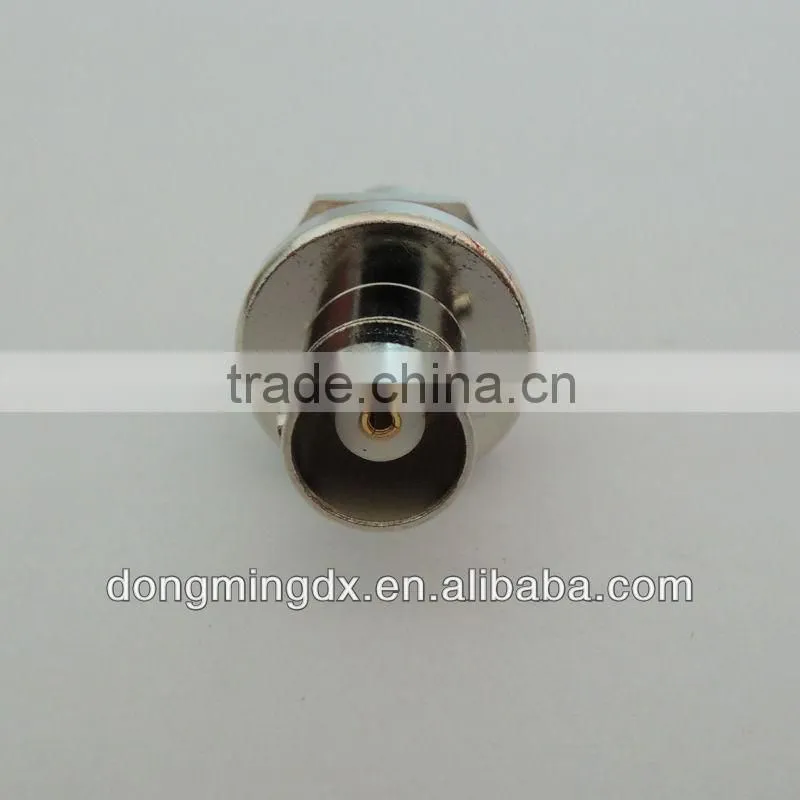

RF adapter BNC female to BNC female coaxial connector

The BNC connectors are for low power,quick connector/disconnector application using a bayonet type coupling mechanism .

Key Performance
Temperature range		-65~+165	Insulation resistance	≥5000MΩ
Characteristic impedance		50Ω/70Ω	Dielectric Withstanding voltage	750V(r ms)
Frequency range		0~4GHz(50Ω)	VSWR	≤1.30
		0~2GHz(75Ω)
Voltage rating		500V(r ms)	Disengage force	≥0.6N
Contact resistance	Center conductor	≤1.5mΩ	Durability	500 Cycles
	Outer conductor	≤1mΩ
Material And Plating
Body		Brass , nickel plated
Male center contacts		Brass , gold plated
Female center contacts		Beryllium copper or phosphor bronze , gold plated
Insulators		PTFE
Gaskets		Beryllium copper , gold plated
Crimp ferrules		Copper alloy , gold or nickel plated
