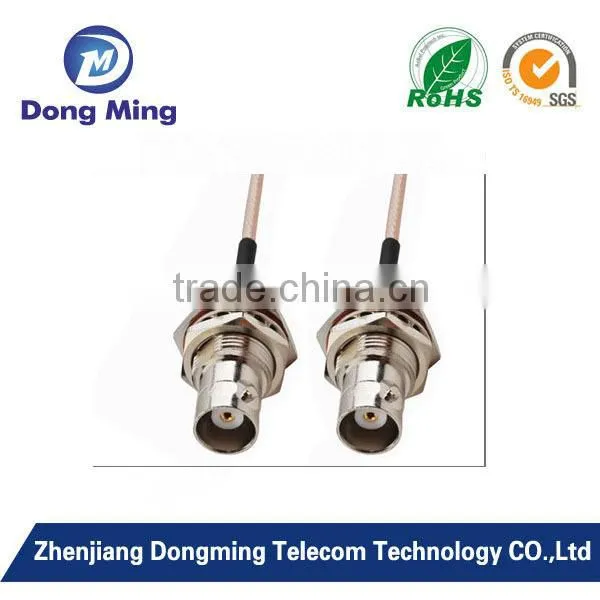

RF BNC Jack Bulkhead to BNC Jack Bulkhead Cable RG316

Name: RF BNC Jack Bulkhead to BNC Jack Bulkhead Cable RG316
Brand: DM, DM
SKU: 116726543

US$ 5,000 - 100,000 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

DM, DM

Model Number:

RF BNC jack bulkhead to BNC jack bulkhead cable RG316

Zhenjiang Dongming Telecom Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name DM, DM

Model Number RF BNC jack bulkhead to BNC jack bulkhead cable RG316

Type Other, BNC, RF BNC jack bulkhead to BNC jack bulkhead cable RG316

Application Other, RF,auotomtive,audio,video,microwave, RF,Auomotive,Audio,Video,Microwave

Gender Other, male,female, male,female

RF BNC jack bulkhead to BNC jack bulkhead cable RG316

Key Performance
Temperature range		-65~+165	Insulation resistance	≥5000MΩ
Characteristic impedance		50Ω/75Ω	Dielectric Withstanding voltage	750V(r ms)
Frequency range		0~4GHz(50Ω)	VSWR	≤1.30
		0~2GHz(75Ω)
Voltage rating		500V(r ms)	Disengage force	≥0.6N
Contact resistance	Center conductor	≤1.5mΩ	Durability	500 Cycles
	Outer conductor	≤1mΩ
Material And Plating
Body		Brass , nickel plated
Male center contacts		Brass , gold plated
Female center contacts		Beryllium copper or phosphor bronze , gold plated
Insulators		PTFE
Gaskets		Beryllium copper , gold plated
Crimp ferrules		Copper alloy , gold or nickel plated
