24V 230W Solar Powered Submersible Water Pumps

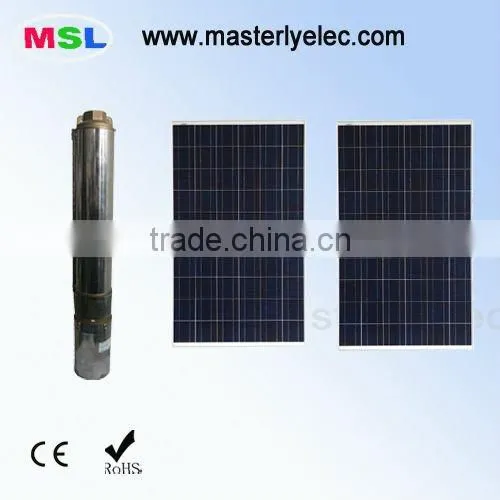

24V 230W Solar Powered Submersible Water Pumps photo-1
US$ 930 - 975 MOQ: 20 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
MSL
Model Number:
MSL-SPB-30M
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name MSL
Model Number MSL-SPB-30M
Specification Normal
Application Commercial
Output Voltage (V) DC 24V
Load Power (W) 430W
Solar Power (W) 600W
Work Time (h) about 5~7 hrs

Specifications

1. Solar panel: 600W
2. Battery: not need
3. Max head: 30m
4. Max Flow rate: 2.7CBM/hrs
5. Working time: 5~7 hrs

24V 430W Solar Powered Submersible Water Pumps:MSL-SPB-30M

1. Features:

PUMP

Flow rate

2.7 CBM per hrs

Power consumption

24V,18A, 430W

Max head   (m)

30

Motor

Brushless, 18000 rpm

Inlet:

76mm

Outlet

32mm

Pump body:

stainless, others: PPS

Inbreaking Protection

IP68

Size

Φ77*660mm

Weight   (kg)

4.5

Sand content:

<0.01%

System voltage

DC 24V

Solar panel    (w)

600W

Rechargeable battery

Not need

Controller

Inside the pump

Working hours

5~7 hrs

Battery box

Not need

Bracket

Optional (Aluminum)

Wire

5m

Packing

Carton, Standard Export Package



2. Application range :

--Pasture irrigation

--Desertification control

--Fountain

--Domestic water

--Agriculture irrigation

--Desalination of sea water

3. Advantage :

--No battery

--Easy installation

--Free maintance

--Low cost

--The power come from solar panel

4. Service provided by us:

--Quick response to customer’s enquiry within 24 hours

--OEM & ODM, customized products are available.

--Exclusive and unique solution can be provided to our customer.

--Special discount and protection of sales provided to our distributor.

--Fast sample delivery

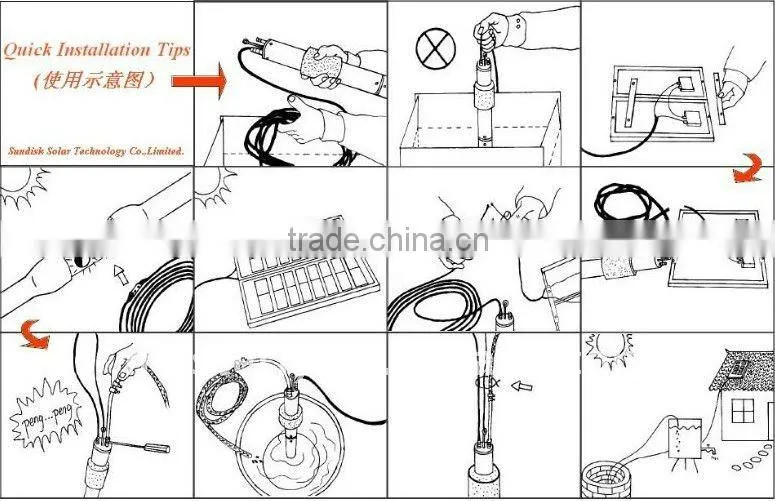

5. Quick installation tips:


24V 230W Solar Powered Submersible Water Pumps
