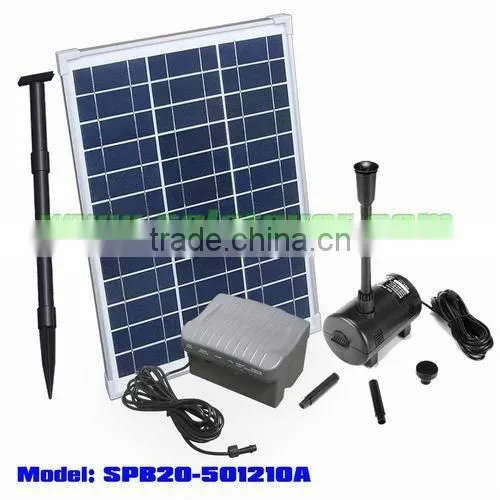

Submersible Pump for Pond (SPB20-501210A)

Name: Submersible Pump for Pond (SPB20-501210A)
Brand: Solarever
SKU: 116740129

US$ 1 - 100 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Solarever

Model Number:

SPB20-501210A

Hangzhou Gene Solar Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Solarever

Model Number SPB20-501210A

Theory Centrifugal Pump

Structure Other

Usage Water

Power Electric

Standard or Nonstandard Nonstandard

Pressure Low Pressure

Application Submersible

Specifications

1.Ideal for fountain,water feature,pond filtration
2.Solar powered with battery backup
3.Submersible pump has no carbon brush

•Typical applications include creating wonderful fountains, pumping water for water features and conducting pond filtration and aeration.

•The submersible pump for pond consists of a DC brushless water pump, a solar panel module and a battery backup.

•Solar energized, maintenace free, cost free and easy to install.

•No failure-prone carbon brush or shaft seal so that a robust and long service life could be expected.

•Battery backup, runs perfectly on overcast day and in the night.

•Ceramic shaft, runs steadily and quietly.

•Designed and manufactured to have high power efficiency.

•Cost-effectiveness, competitive price.

Item No.		SPB20-501210A
Description		Solar submersible pump kit for pond
Category		Solar pump kit

Product Summary
Solar panel		Solar panel item				GSP20-36
		Peak power				20W
		Peak power voltage				17.28V
		Peak power current				1.157A
Pump		Pump item				BP501210A
		Maximum pump head				3.2m (10.5ft)
		Maximum flow rate				1560L/H (412.1GPH)
		Cable length				5m (16.4ft)
		nozzle item				NA03
Battery back-up		Item No				SBB12-7
		Extension cord length				5m (16.4ft)
		Battery type				Lead Acid
		Battery capacity				12V, 7Ah
Flow adjustable						yes
Dry run protection						no
Master carton size						57X43X27cm
Quantity per carton						1pcs
Master carton G.W						8kg
Quantity per 20 container						512pcs
Quantity per 40 container						1056pcs
Warranty						3years

Litres per hour - At various pumping heights (Head)
Operating voltage	@ 0m	@0.5m	@0.75m	@1.0m	@1.5m	@2.0m	@2.5m	@3.0m	Max height
12V	980	550	300	0					1.0m
18V	1350	1070	840	755	420	60	0		2.1m
24V	1560	1480	1200	1190	930	690	430	50	3.2m

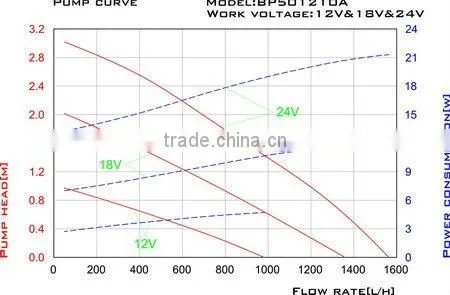

Pump Curve

Overview
