Solar Fountain Pump (SPBL10-401209D)

Name: Solar Fountain Pump (SPBL10-401209D)
Brand: Solarever
SKU: 116740535

US$ 1 - 100 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Solarever

Model Number:

SPBL10-401209D

Hangzhou Gene Solar Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Solarever

Model Number SPBL10-401209D

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Nonstandard

Fuel Other, Electric

Pressure Low Pressure

Application Submersible

•Typical applications include creating fountains with LED lighting, pumping water for water features and conduct pond filtration and aeration.

•The solar fountain pump kit consists of a DC brushless dry run protected water pump,a solar panel module,a backup battery and a LED fountain light.

•Solar energized, maintenace free, cost free and easy to install.

•Dry run protection prevents the pump from burning out when fountain or pool dries out.

•No failure-prone carbon brush or shaft seal so that a robust and long service life could be expected.

•Battery back up, runs perfectly on overcast day and in the night.

•Decorative lighting, various color options.

•Ceramic shaft, runs steadily and quietly.

•Cost-effectiveness, competitive price.

Item No.		SPBL10-401209D
Description		Solar fountain pump kit
Category		Solar pump kit
Product Summary
Solar panel		Solar panel item				GSP10-36
		Peak power				10W
		Peak power voltage				17.28V
		Peak power current				0.579A
Pump		Pump item				BP401209D-L
		Maximum pump head				2.0m (6.6ft)
		Maximum flow rate				760L/H (200.8GPH)
		Cable length				5m (16.4ft)
		Nozzle item				NA02
Battery back-up		Item No.				SBB12-4.5
		Battery type				Lead Acid
		Battery capacity				12V, 4.5Ah
		Cable length				5m (16.4ft)
LED fountain light		Quantity				6pcs
		Optional color				White/Red/Green/Blue/ Yellow/RGB color changing
		Photosensitive				Yes
Flow adjustable						yes
Dry run protection						yes
Individual box size						41.5X27X21cm
Individual box G.W						6kg
Master carton size						57X43X24cm
Quantity per carton						2pcs
Master carton G.W						13kg
Quantity per 20 container						954pcs
Quantity per 40 container						1980pcs
Warranty						3years
Litres per hour - At various pumping heights (Head)
Operating voltage	@ 0m	@0.5m	@0.75m	@1.0m	@1.5m	@2.0m	@2.5m	@3.0m	Max height
12V	470	330	75	0					0.9m
18V	610	450	380	320	50	0			1.7m
24V	760	590	540	490	430	0			2.0m

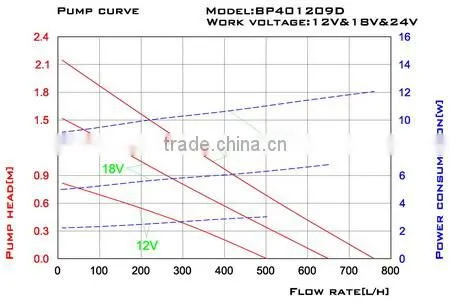

Pump Curve
