Help CenterDC Brushless Solar Pump (SP5-401209)
Related Products
-
Solar Fountain (SPBL3.5-320607D)US$ 1 - 100MOQ: 1 Set -
Solar Pump for Fountain (SPB3.5-320607D)US$ 1 - 100MOQ: 1 Set
-
DC Brushless Submersible Water Pump (SP3.5-320607D)US$ 1 - 100MOQ: 1 Set
-
Fountain Pump (SP2-320607)US$ 1 - 100MOQ: 1 Set
-
Solar Fountain (SP1.8-320605A)US$ 1 - 100MOQ: 1 Piece
Specifications
1.Ideal for pond fountain,water feature,pond filtration2.Solar powered,safe and easy to install.
3.Durable brushless motor.
•Typical applications include creating landscape fountains, pumping water for water features and conducting pond or pool filtration.

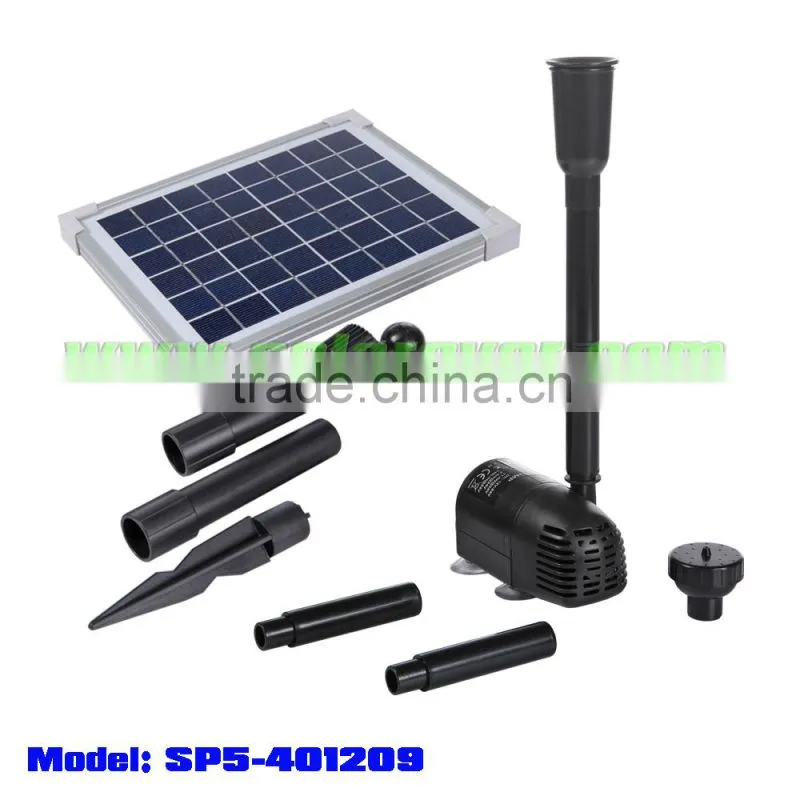

•The DC brushless solar pump kit consists of a DC brushless water pump and a solar panel module.
•Solar energized, maintenance free, operation cost free, environment friendly and easy to install without wiring work needs. More importantly, it is much safer for kids thanks to its low working voltage.
•Brushless with no failure-prone carbon brush or shaft seal so that a robust and long service life could be expected.
•Ceramic shaft, runs steadily and quietly.
•Rohs and CE certified, safe and green.
•IP68 waterproof rating thanks to the brushless motor.
•Designed and manufactured to have high power efficiency.
•Cost-effectiveness, competitive price.
Item No. |
SP5-401209 (Old item No.: SBL401) |
||||||||
Description |
Solar brushless pump kit |
||||||||
Category |
Solar pump kit |
||||||||
| |||||||||
Product Summary | |||||||||
Solar panel |
Solar panel item |
GSP5-24 |
|||||||
Peak power |
5W |
||||||||
Peak power voltage |
11.52V |
||||||||
Peak power current |
0.434A |
||||||||
Pump |
Pump item |
BP401209 |
|||||||
Maximum pump head |
0.9m (3.0ft) |
||||||||
Maximum flow rate |
470L/H (124.2GPH) |
||||||||
Cable length |
5m (16.4ft) |
||||||||
Nozzle item |
NA02 |
||||||||
Flow adjustable |
no |
||||||||
Dry run protection |
no |
||||||||
Individual box size |
27X22.5X11cm |
||||||||
Individual box G.W |
1.7kg |
||||||||
Master carton size |
59X29X25cm |
||||||||
Quantity per carton |
5pcs |
||||||||
Master carton G.W |
10kg |
||||||||
Quantity per 20 container |
2970pcs |
||||||||
Quantity per 40 container |
6300pcs |
||||||||
Warranty |
3years |
||||||||
| |||||||||
Litres per hour - At various pumping heights (Head) | |||||||||
Operating |
@ 0m |
@0.5m |
@0.75m |
@1.0m |
@1.5m |
@2.0m |
@2.5m |
@3.0m |
Max height |
12V |
470 |
330 |
75 |
0 |
|
|
|
|
0.9m |
| |||||||||

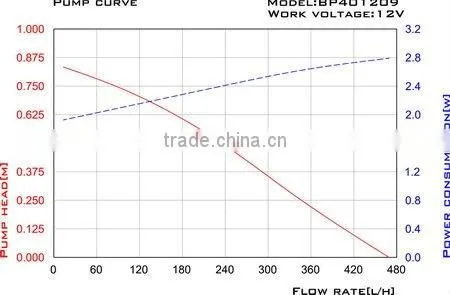

Pump Curve | |||||||||
| |||||||||
Overview | |||||||||
|
| |||||||||
