Specifications
Cadmium Copper Alloys Round Bar C162001,high tensile strength
2,high electrical conductivity

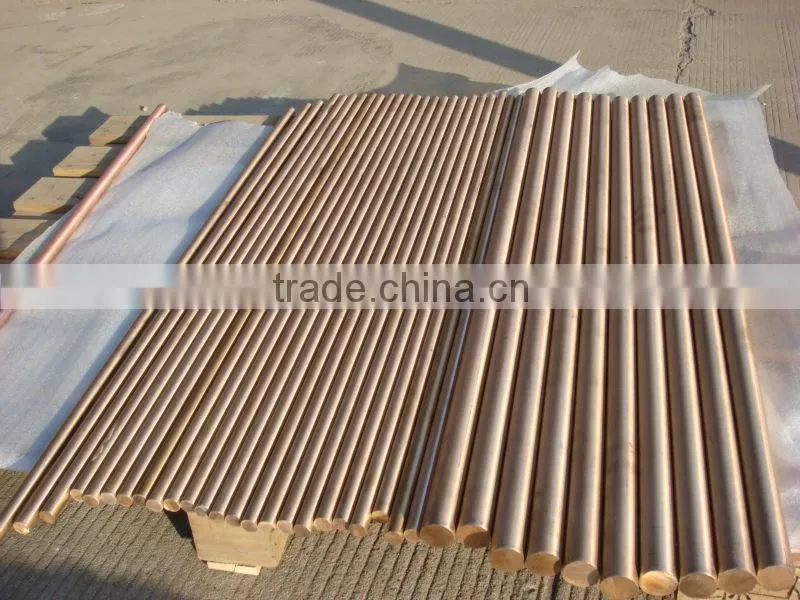

Cadmium Copper Alloys Round Bar C16200
CuCd1-UNS.C16200 Cadmium Copper alloys
A). CuCd1-UNS.C16200 Cadmium Copper alloys Details
CuCd1-UNS.C16200 Cadmium Copper alloys
CuCd1-UNS.C16200 Cadmium Copper alloy offers a unique combination of high tensile strength and high electrical conductivity for an industry where these properties are generally considered incompatible. The nominal composition of 99.0% copper and 1.0% cadmium can lead to these unique properties.
The cadmium noticeably increases the copper's strength and resistance to softening and stress relaxation with minimal decrease in its electrical conductivity. It also produces an alloy noted for its malleability and toughness and spring quality.
Typical Application for CuCd1-UNS.C16200 Cadmium Copper alloys:
Electrical Industry: Resistance Welding Electrodes, Circuit Breaker Switches, Stud Bases for Power Transmitters, Electrical Conductor Material
Consumer: Rod Extensions, Pencil-type, Light Soldering Guns, Tips
Industrial: Connectors, Solderless Wrapped, Welding Wheels, Trolley Wires
Available Sizes:
Custom Diameter & Sizes, Random Mill lengths
Available Products (forms):
Round bars, Flat bars, Square bars, Wires
Custom shapes are available upon request.
B).
CuCd1-UNS.C16200 Cadmium Copper
Chemical Composition:
Cd: 0.70-1.20%
Fe: 0.02% Max.
Cu: Reminder
C).
CuCd1-UNS.C16200 Cadmium Copper
Typical Physical Properties:
Density at 68°F: 0.321 Lbs./In.3
Specific Gravity: 8.90
Melting Point (Liquidus): 1076°C (1969°F)
(Solidus): 1030°C (1886°F)
Coefficient of Thermal Expansion per °F: 9.8 x 10-6 (77-212°F)
Electrical Conductivity at 68°F (volumetric): 90% IACS (aged and drawn)
Thermal Conductivity Btu/ft.2/ft./hr./°F at 68°F: 208
Modulus of Elasticity - Tension: 17,000 ksi
Note:
1). the units are based upon US Customary.
2). the typical physical properties apply to age hardened products.
D). CuCd1-UNS.C16200 Cadmium Copper
International Specification/Production Standards:
Rods/Bars/Wires: UNS.C16200, CDA 162, ASTM B105, SAE J 461 & 463
European Standards: CuCd1, DIN 17666
Note:
ASTM: American Society for Testing and Materials
Note: Unless otherwise specified, material will be produced to ASTM.
E).
CuCd1-UNS.C16200 Cadmium Copper
Mechanical Properties:
The detailed Mechanical Properties will be available on request from customers.
F). CuCd1-UNS.C16200 Cadmium Copper
Most Commonly Temper Used:
Rods/Bars/Wires: 1/2 H (TD02), H (TD04), HT(TH04)
