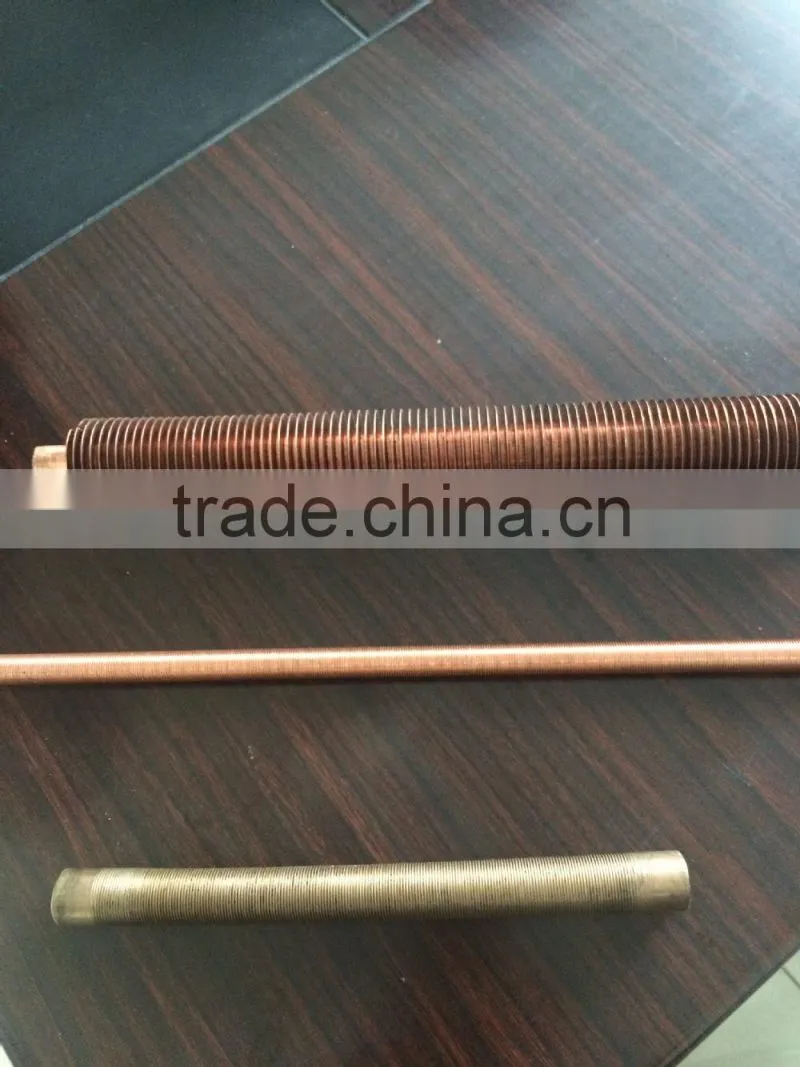

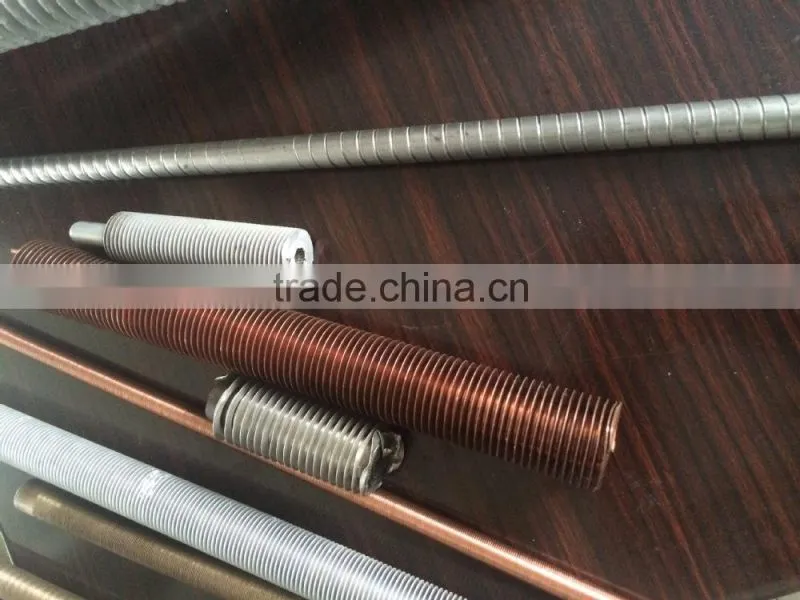

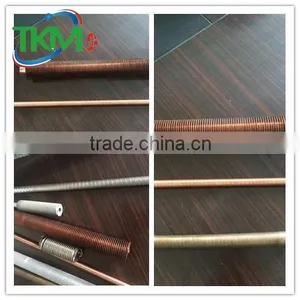

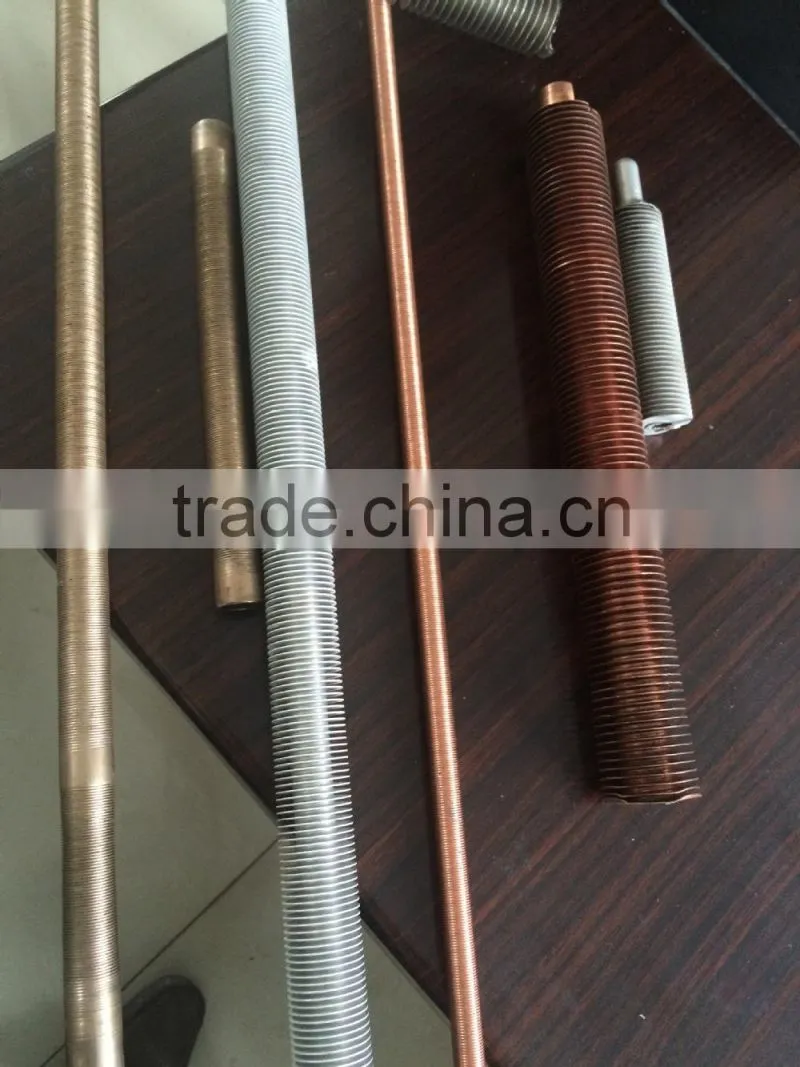

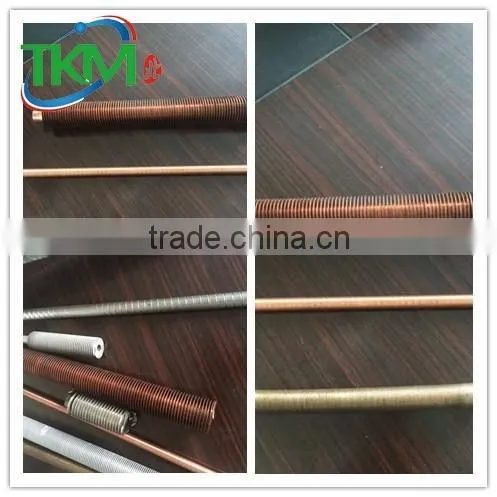

FINNED TUBE
Specifications
tube fin machine
1. Base tube dia: 8-50mm
2. Fin height: max. 16mm
3. Fin thickness: 0.3~1mm
4. Finned tube length: 0-15m
Tube fin machine is specially designed for producing single-metal or double-metal finned tubes in different diameters.
Main features of the tube fin machine:
-- Tool holder and tool holder body adopt the advanced dual-circular key structure to withstand torque, displacement of accurate and reliable.
-- Tool holder adopt split type design, it is very easy to blade debugging, washable and install of the blade.
-- Spindle bearing can be moved using conical hydrodynamic sliding bearings, bearing to maximize the utilization.
-- Universal joints and shaft key link between all lines of Hot Pepper. Cooling box separate from rolling mill machine.
-- Closely with technical data, rolling fin efficient, durable blades.

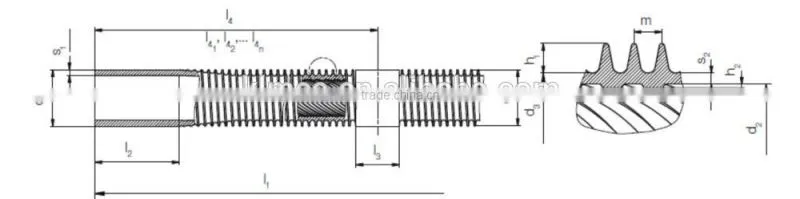

Suitable finned tube by this tube fin machine:
-- Diameter of base tube: Φ8~Φ25mm, Φ12~Φ35mm, Φ15~Φ50mm
-- Outer diameter of finned tube: Φ25mm-Φ88mm
-- Raw material:
Bare tube materials: aluminum, steel, copper
Fin materials: aluminum, copper
-- Fin material thickness: 0.3mm~1mm
-- Fin height: ≤16mm
-- Spiral pitch: 1.8mm; 2.0mm; 2.1mm; 2.3mm; 2.5mm; 2.8mm; 3.0mm; 3.2mm~8.0mm
-- Finned tube length: 0-15m
Main technical data of tube fin machine:
-- Central line height of the main spindle to worktable: 345mm
-- Height of worktable: 718mm
-- Output spindle rotating speed (adjustable): 80rpm; 100rpm; 120rpm
-- Fin rolling speed: 0.6m/min; 0.75m/min; 0.9m/min
-- Main motor: 11kw
-- Coolant water pump motor power: 0.12kw
-- Weight: about 1920kg
-- Overall dimensions (mm): 2050× 760 × 1430 (L x W x H)
