Specifications
large cassiterite processing equipment for cassiterite ore separatingHigh concentration ratio
Simple operation
large beach sand processing equipment for beach sand separating
1. Application of gold mining vibrating table:
Shaking table which is also called concentration table, is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and nonmetallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc
2. Advantage of gold mining vibrating table:
♦ High concentration ratio
♦ Steel structure support, easy to install and move to other place
♦ Simple operation
♦ Deck constructed of 6s fiber glass material
♦ Three different decks to choose
♦ Long working life
♦ Adjustable stroke length
3.Construction and Features for gold mining vibrating table:
(1). Head Motion Head motion gold shaking table are furishinged with a total enclosed self-oiling head motion of heavy castiron to containan oil reservoir for perfect splash lubrication.This feature protects the moving parts,reducing poprating and maintance cost to a minimum.
(2). Decks Features of Decks The decks are contructed of steel framework and covered 16mm fibreglass with corundum, this cover its strength reaches as high as 70% of steel, the features of this design are stronger,wear-resistant,corrosin-resistant,and no distortion,it lengthens the working-life of machine and thus allows machine perform perfectly on different mineral and different weather condition.
Technical Specification of Decks As per different particle size of raw ore, there are three distinct deck design available.
♦ Course ore deck is designed for recovering particle size from 0.5mm to 2mm;
♦ Fine sand deck is designed for recovering fine particle from 0.15mm to 0.5mm;
♦ Sime deck is designed for recovering super extremely fine particle in the range of 0.074mm to 0.15mm.
(3). Feeed and Water Box A wooden feed distributing box with hooper and a long water box are attached to the iron of the deck,giving a very even distribution of feed and water.
4. Specification of gold mining vibrating table:
Model |
6s-7.6 |
4.08 |
1.95 |
0.5 |
||||
Deck type |
Coarse ore deck |
Fine sand deck |
Slime deck |
|||||
Benefication Area(m2) |
7.6 |
7.6 |
7.6 |
4.08 |
1.95 |
0.5 |
||
Deck size |
Length(mm) |
4450 |
4450 |
4450 |
3000 |
2100 |
1100 |
|
Transmission end width (mm) |
1855 |
1855 |
1855 |
1320 |
1050 |
500 |
||
Concentrate end width (mm) |
1546 |
1546 |
1546 |
110 |
850 |
430 |
||
Maximum feeding size(mm) |
2 |
0.5 |
0.15 |
Sand -2 Slime-0.1 |
Sand -2 Slime-0.074 |
Sand -2 Slime-0.074 |
||
Feeding amount |
0.8-1.5ton/h |
0.8-1.5ton/h |
0.8-1.5ton/h |
0.4-1.5t/h |
0.3-0.8t/h |
0.05-0.2t/h |
||
Feeding density(%) |
25-30 |
20-25 |
15-25 |
10-30 |
||||
Stroke(mm) |
16-22 |
11-16 |
8-16 |
6-30 |
12-28 |
9-17 |
||
Frequency(F) |
45-220 |
53-250 |
60-280 |
210-320 |
250-450 |
280-460 |
||
Water added |
1-3t/h |
1-3t/h |
1-3t/h |
0.4-2t/h |
0.2-1t/h |
0.1-0.5t/h |
||
Transverse slope of deck |
2°30-4°30 |
1°30-3°30 |
1°-2° |
0-10° |
0-8° |
0-10° |
||
Longitudinal slope of deck |
1.4 |
0.92 |
--- |
--- |
--- |
--- |
||
Cross-section shape of deck |
rectangular |
saw-tooth |
triangle |
--- |
--- |
--- |
||
Motor power(kw) |
1.1 |
0.55 |
||||||
Transmission mechanism |
Eccentric linkage |
|||||||

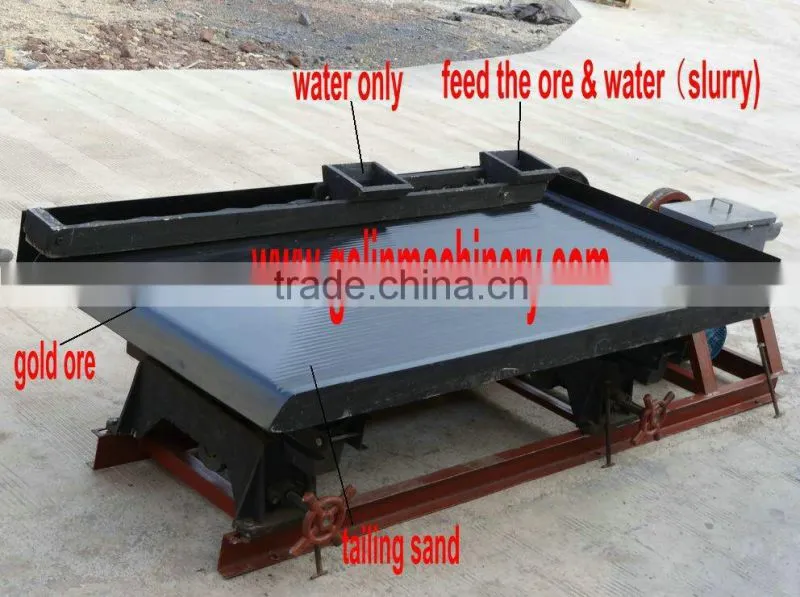

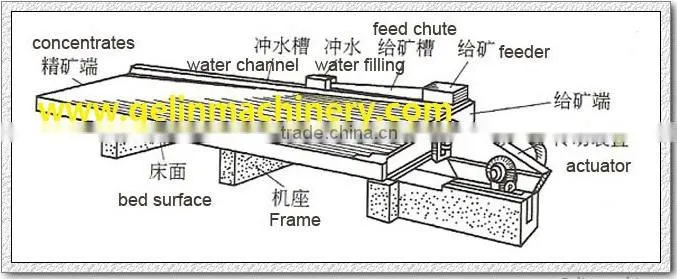

5. Structure of gold mining vibrating table:

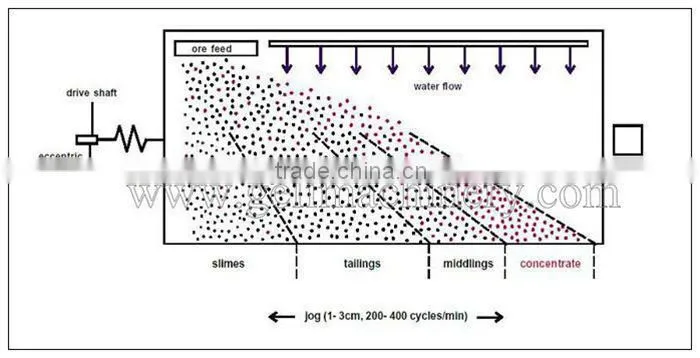

6. Worling principle of gold mining vibrating table:
The working principle of shaking table for sale is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

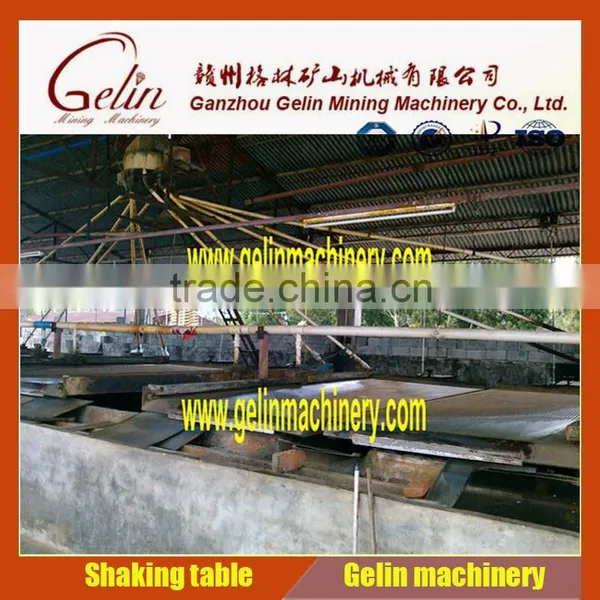

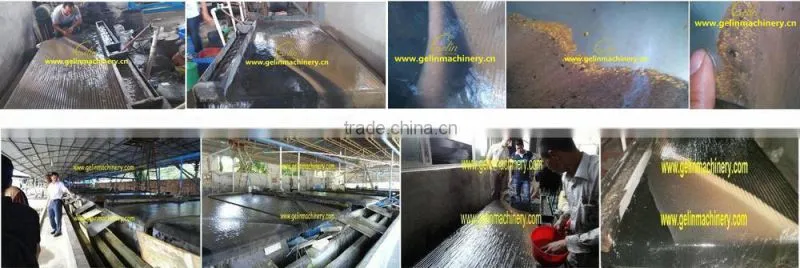

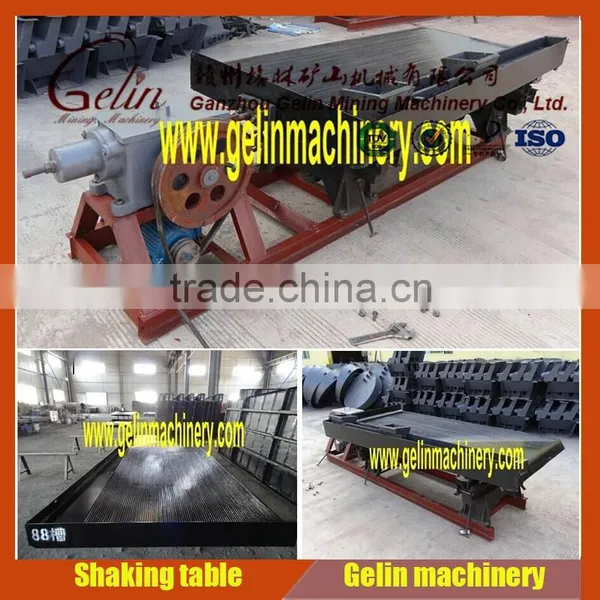

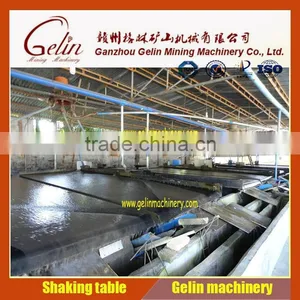

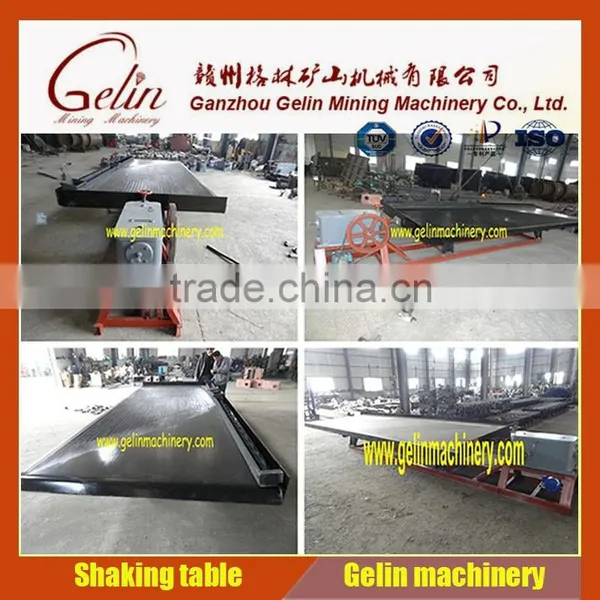

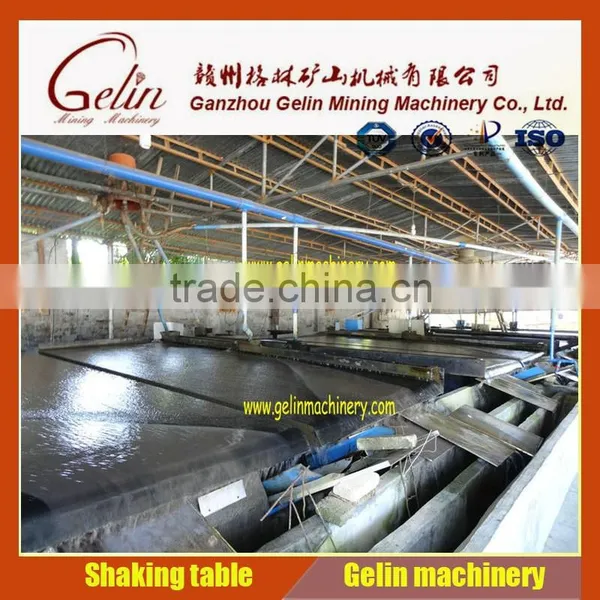

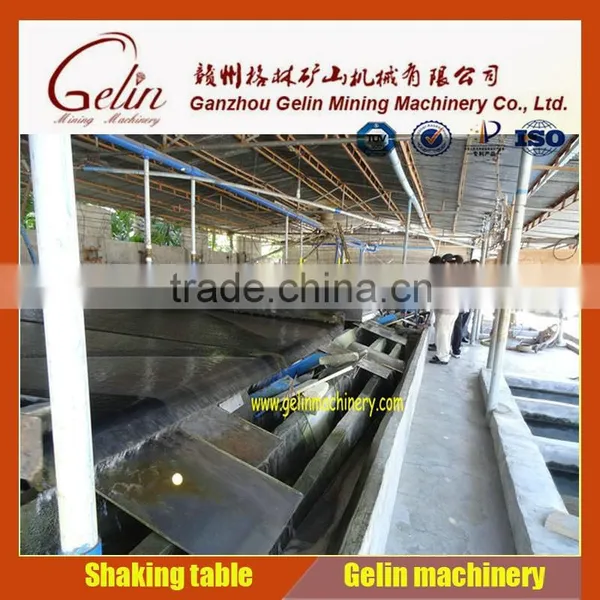

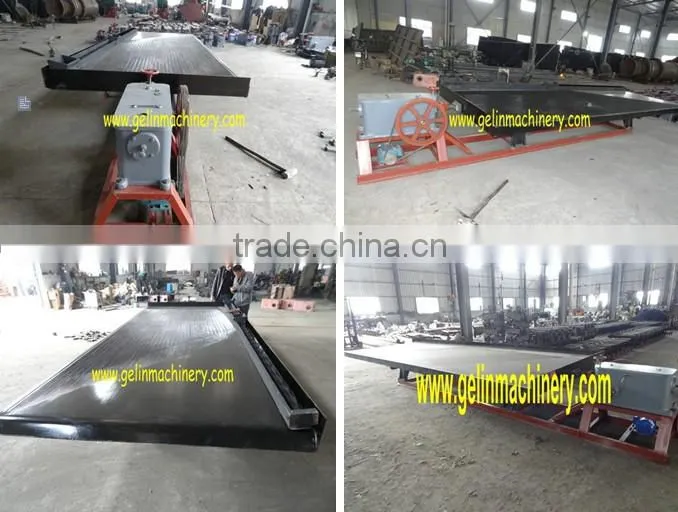

6. Photos of gold mining vibrating table:
7. Our Manufacturing Workshop for gold mining vibrating table:
China Professional Mineral Equipment Manufacturer:
Shaking table-----Hot Sale in Ghana, Philippines, Surinam, etc.
8. Trade Term for gold mining vibrating table:
One Stop Service
1. Start by running the mineral beneficiation experiment. To provide our clients with best solution accordinly.
2. Besides supply the flowchart design & equipments, we also provide the infrastructure design.
3. After the installation, debugging of the equipments, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.
PER-SALE SERVICES
1. Based on clients' request and budget, GELIN experts will strictly make efficient, reliable solutions accordingly.
2. Select equipments model, provide flowchart design for our clients.
3. Design & manufacture products according to clients' demands.
AFTER-SALE SERVICE
1. Pre-check and test the products before delivery.
2. Deliver the whole plant design for our clients which including:Infrastructure & Electrical system & Pipeline design.
3. Trace the status of the shipping until the products received.
4. Prepare required documents to let clients pass custom clearance.
5. Dispatch experts to carry out below service on site.
1). Installation & Debug of the machinery on site.
2). Train the first-line operators & technical personnel on site.
3). Carry out any other service clients may needed.
6. Provide technical exchanging & spare parts for life -long term.
Ganzhou Gelin Mining Machinery Company Limited is an expert manufacturing mining machines in China.Our company is located in Guzhang industrial zone, Shicheng county, Jiangxi province, covering an area of over 30,000 square meters, having more than 30 sets of heavy processing equipment and with an annual output of more than 2000 sets of mining machinery. There are more than 5 medium and senior engineers in our company. We have a strong R&D department and have been cooperating with domestic and overseas Scientific Research Institutes for many years. Our purpose is to track international new technology in time and promptly and make continuous innovation in technology for manufacturing high-grade equipment.
♦ Producing Machine Products of Our Factory:
Including gold mining vibrating table,Centrifugal Gold Concentrator, Mobile Type Gold Trommel, Jig Machine, Spiral Chue, Rotary Scrubber, Cone Crusher, Vibrating Feeder, Jaw Crusher, Vibrating Screen, Ball Mill, Spiral Classifier, Flotation Machine, Magnetic Separator, Mercury Amalgam Barrel, Gold Smelt Furnace, Dry Type Electric Separator, etc.
♦ Our Factory Can Do More:
Besides the above mentioned products, we can also design and manufacture many kinds of special mining machines and automatic processing lines according to the requests of customers.
If you are in need of detailed information, please inform us. We will provide you with total solutions accordingto your specific requirements in time.
♦ The Influence of Our Factory:
–We have passed ISO9001:2008 Quality System certification.
– Our products have obtained the title of "China High Quality Well-Known Products".
– Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, India,the Middle East, the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, America, Canada and Australia.
– We have won high reputations from all of our clients for our machines and services.
♦Customers from Different Countries to Visit Our Factory:
♦ Company Honer:
Q1. Are you a manufacturer or trading company?
A: We are a real manufacturer of mining equipments. Welcome to visit us at any time!
Q2. Where is your factory located? How can I visit there?
A: Our factory located at: Ganzhou city, Jiangxi province, China.
You can take airplane from your country to Guangzhou/Shanghai /Beijing airport, China, then, flight to Ganzhou Huangjin Airport. We will pick you up at Ganzhou airport.
Below are some flights details for you refer:
Q3. Why choose you and buy from you?
A: (1). We produce and supply whole processing line(Auto run) for mining separation. We not only sell the machines, but, more important we provide you the technology how to enrich minerals to the market level.
(2). We will do our best to satisfy every customer's needs Producing high quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers.
(3). We will help you with the beneficiation process design,installation,debugging, beneficiation test and any other customized service.
(4). Welcome to visiting our factory to check all kinds of benificiation machinary, the goods are well supplied, if there's anything you need, we will send you in no time.
Remarks:
In order to find the suitable machine for you, please kindly inform us the following information:
1). What type is your mining? Is it rock stone? or it is sand?
2). What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to start?
4). What is the ingredient of the raw ore? How much percent % of each minerals?
5). Is there any analysis report? if yes, please send to me.
Q4. Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
A:Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
Q5. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of GELIN equipments is one year. And of course we will supply te spare parts for you for life-long time at lowest cost.
Q5.If i need the complete mineral processing line. is GELIN able to help us build it?
Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need. we had already build many mining projects in China & Overseas. GELIN can set a complete processing line just as you require.
Flow sheet for 20tph gold veins process line, just for reference:
