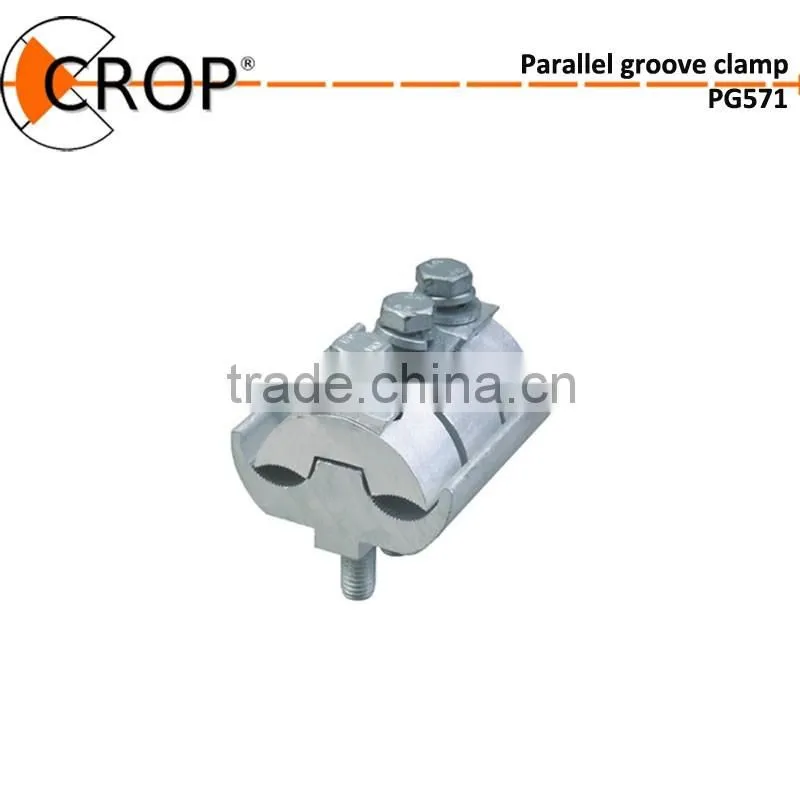

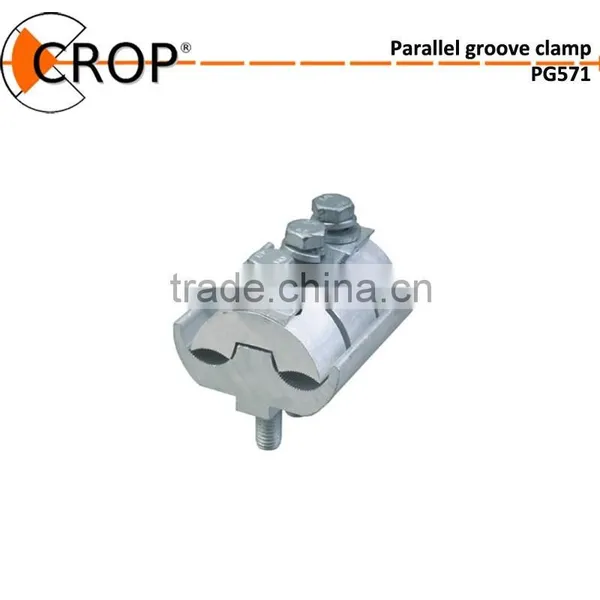

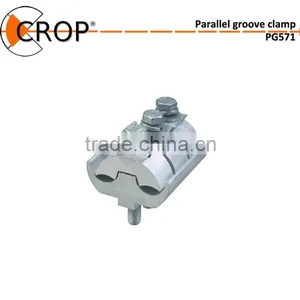

Aluminium parallel groove clamp / pg clamp
*Use for aluminum conductor to aluminum conductor.
| Item No |
Product range (sqmm) |

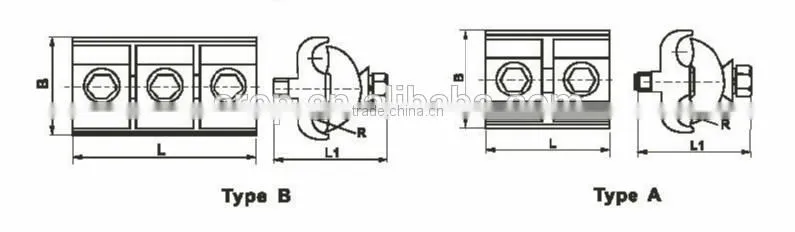

Dimension(mm) | ||
| L | R | B | ||
| PG571-0A | 16~70 | 42 | 36 | 5.5 |
| PG571-1A | 16~120 | 45 | 44 | 7 |
| PG571-1B | 16~120 | 70 | 44 | 7 |
| PG571-2A | 50~240 | 50 | 62.5 | 10.5 |
| PG571-2B | 50~240 | 70 | 62.5 | 10.5 |
A=2bolts,B=3bolts
Tinned body can be required.Default body is aluminum alloy.
CROP started factory in 2001 from producing distribution box and ABC accessories , and then expands the whole line of ABC accessories and protection device for distribution box.
Lead the manufacturing of hospital furniture after 10 years' of development.
Export volume doubles every year. The dramatic growing speed enables us to set factory oversea.
Export to over 60 countries/region. Registered in EU, Russia, Panama, Costa Rica, Egypt, Kazakhstan, UAE, Algeria, Philippines etc.
Over 400 employees work in shift ensure the punctual delivery time.
R&D team is qualified to do customized project, OEM services.
Inspection is carried out all through the production process, warranty card provided.
Export sales team is professional to serve customers, quick respond and excellent after-sales.
Convenient and economy transportation, ship from Shanghai the biggest sea port of China, only 150KM away.
CE,ISO9001Certificate
