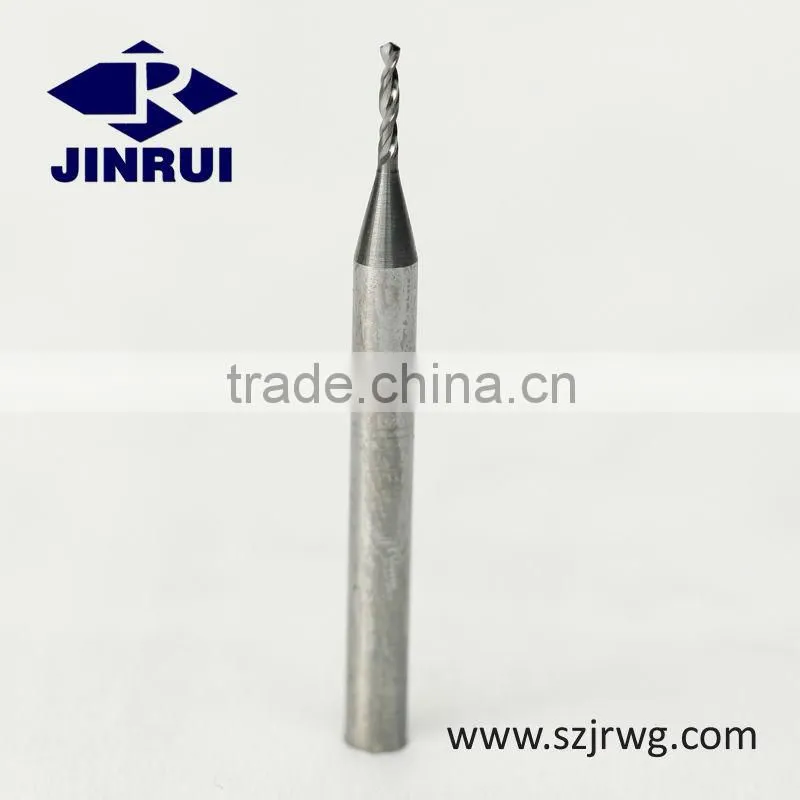

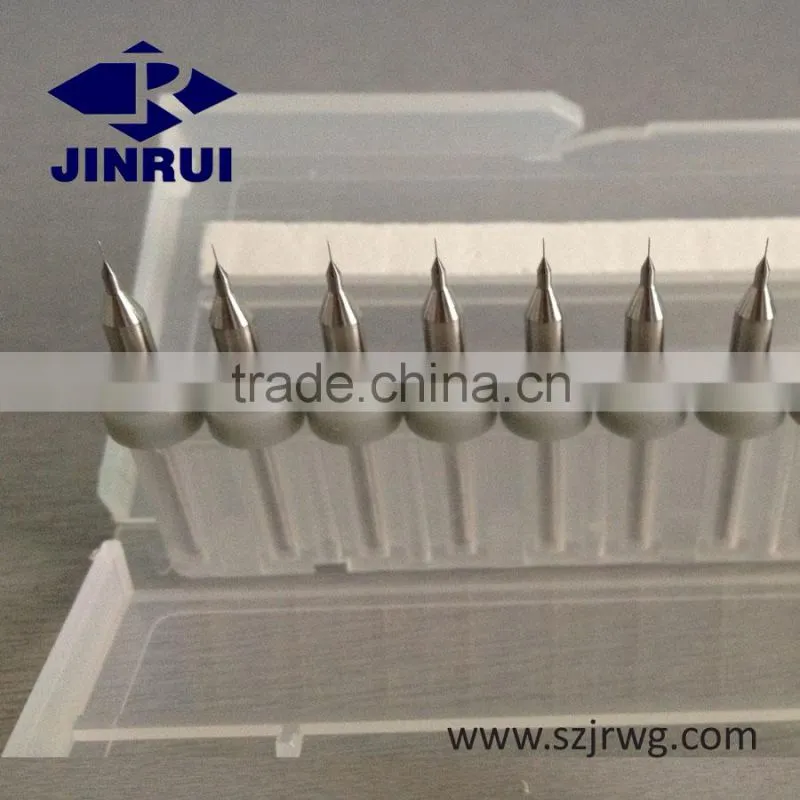

JR129 0.05mm/3.2mm Micro Carbide Pcb Drill Bits

JR129 0.05mm/3.2mm Micro Carbide Pcb Drill Bits thumbnail-1
JR129 0.05mm/3.2mm Micro Carbide Pcb Drill Bits photo-1
US$ 0.5 - 2 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
JINRUI
Model Number:
JR129
Contact Supplier Request Quote Chat Now
Shenzhen Jinrui Precision Carbide Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name JINRUI
Model Number JR129
Type Twist Drill Bit
Material Tungsten Carbide
Use Other, PCB, Metel drilling

Specifications

Carbide pcb drill bits:
1.Raw material: Kennametal, Sumitomo, guhring.
2.Coated or nano coated is ok.
3.OEM.
4.PCB drilling.


Product Description

1. Standard Size/Specification :

Description Flute diameter
(mm)		 Shank diameter
(mm)		 Flute
length
(mm)		 Overall length
(mm)
micro carbide pcb drill bits
0.05 3.175 0.6 38.1
0.08 3.175 0.8 38.1
0.1 3.175 1.2 38.1
0.15 3.175 2 38.1
0.2 3.175 3.5 38.1
material: tungsten carbide 0.25 3.175 4 38.1
0.3 3.175 5.5 38.1
0.35 3.175 6.5 38.1
0.4 3.175 7 38.1
0.45 3.175 7 38.1
0.5 3.175 8.5 38.1
0.55 3.175 8.5 38.1
0.6 3.175 9.5 38.1
  0.65 3.175 9.5 38.1
0.7 3.175 9.6 38.1
0.75 3.175 9.5 38.1
0.8 3.175 9.5 38.1
0.85 3.175 9.5 38.1
0.9 3.175 9.5 38.1
0.95 3.175 9.5 38.1
1 3.175 10.5 38.1
1.05 3.175 10.5 38.1
1.1 3.175 10.5 38.1
1.15 3.175 10.5 38.1
1.2 3.175 10.5 38.1
1.25 3.175 10.5 38.1
  1.3 3.175 12 38.1
  1.35 3.175 12 38.1
  1.4 3.175 12 38.1
  1.45 3.175 12 38.1
  1.5 3.175 12 38.1
  1.55 3.175 12 38.1
  1.6 3.175 12 38.1
  1.65 3.175 12 38.1
  1.7 3.175 12 38.1
  1.75 3.175 12 38.1
  1.8 3.175 12 38.1
  1.85 3.175 12 38.1
  1.9 3.175 12 38.1
  1.95 3.175 12 38.1
  2 3.175 12 38.1
  2.05 3.175 12 38.1
  2.1 3.175 12 38.1
  2.15 3.175 12 38.1
  2.2 3.175 12 38.1
  2.25 3.175 12 38.1
  2.3 3.175 12 38.1
  2.35 3.175 12 38.1
  2.4 3.175 12 38.1
  2.45 3.175 12 38.1
  2.5 3.175 12 38.1
  2.55 3.175 12 38.1
  2.6 3.175 12 38.1
  2.65 3.175 12 38.1
  2.7 3.175 12 38.1
  2.75 3.175 12 38.1
  2.8 3.175 12 38.1
  2.85 3.175 12 38.1
  2.9 3.175 12 38.1
  2.95 3.175 12 38.1
  3 3.175 12 38.1
  3.05 3.175 12 38.1
  3.1 3.175 12 38.1
  3.15 3.175 12 38.1
  3.175 3.175 12 38.1



JR129 0.05mm to 3.2mm micro carbide pcb drill bits

   drill bits | pcb drill bits | micro carbide pcb drill bits | carbide pcb drill bits

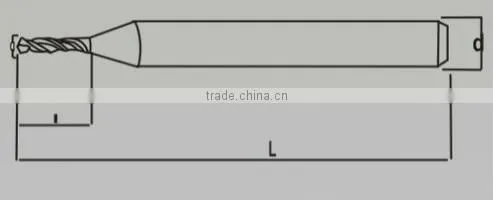

2.structural drawings

JR129 0.05mm/3.2mm micro carbide pcb drill bitsJR129 0.05mm/3.2mm micro carbide pcb drill bitsJR129 0.05mm/3.2mm micro carbide pcb drill bits

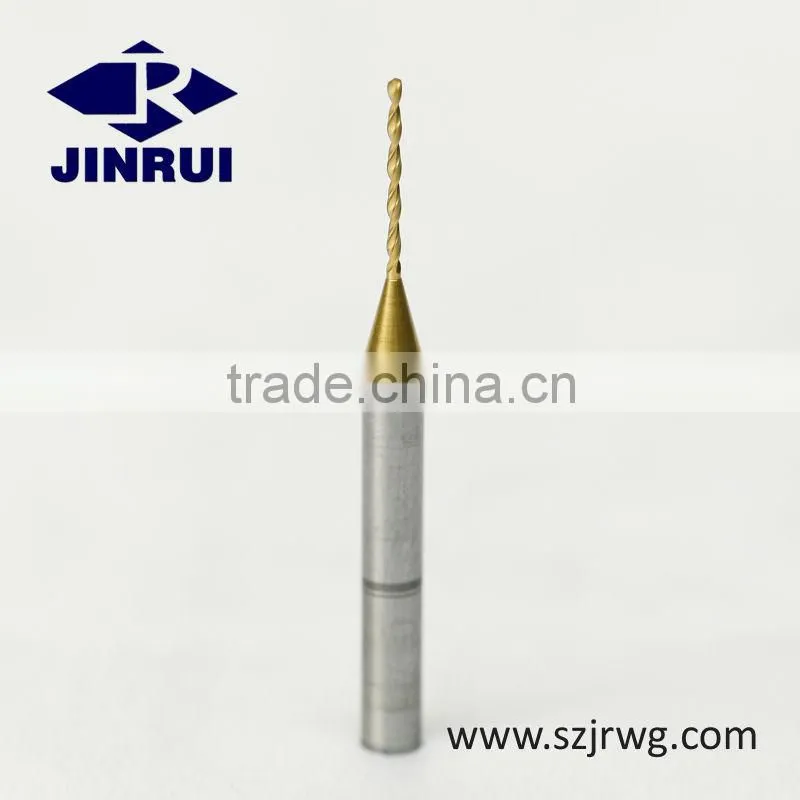

The coating PCB drill bits

JR129 0.05mm/3.2mm micro carbide pcb drill bits



















Packaging & Shipping



1. Our package (Four steps only and two packaging schemes )

JR129 0.05mm/3.2mm micro carbide pcb drill bits







2. Our type of shipping



1) We offer as many shipping options as possible which including TNT, UPS, DHL, Fedex and EMS etc.



2) If you want shipped by sea, please inform us in advance.



3) Currently, we can do FOB HK/SHENZHEN and Ex-W SHENZHEN.



4) For any other delivery terms,pls feel free to contact salesman leven.




Jinrui Services



1. We can manufacture tools according to your needs(sample or drawing welcomed)

2. Primary competitive advantages are well and high quality control/prompt delivery/competitive prices/OEM  accepted

3.  Application:Applied in aerospace, cars, horologe, stainless,glass,cellphone, electron and medical apparatus and instruments.
