Free sample!! Nema14 DIY CNC Router Stepping Stepper Motor 34mm 0.8A 26oz.in
Welcome to visit our website to find more products!
Nema14/35HS Hybrid Stepper motor Features:
Stepper motor is an electromechanical device which converts electrical pulses into discrete mechanical movements.Stepper motor is widely used in Engraving machines, Stage Lighting , Medical equipment, Sewing Machine, Packing Machine, Printer, Textile machinery, Robot, business automation equipment etc.
Nema23/57HS Hybrid Stepper motor Specification:
| Item | Specifications | |||
| Step Angle | 1.8 degree | |||
| Temperature Rise | 80 ℃Max | |||
| Ambient Temperature | -20 ℃ Max+50 ℃ | |||
| Insulation Resistance | 100M Ω Min., 500VDC | |||
| Dielectric Strength | 500VAC for one minute | |||
| Shaft Radial Play | 0.02Max (450g-load) | |||
| Shaft Axial Play | 0.08Max (450g-load) | |||
| Max Radial Force | 28N(20mm from th flange) | |||
| Max Axial Force | 10N | |||
| Model No | No of Phase | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (g.cm) | Rotor Inertia (g.cm²) | Motor Length (mm) | Lead Wire Number | Motor Weight (g) |
| 35HS30-0804 | 2 | 5.44 | 0.8 | 6.8 | 8 | 1200 | 17 | 30 | 4 | 150 |
| 35HS34-0504 | 2 | 3 | 1.2 | 2.5 | 3.5 | 1500 | 20 | 34 | 4 | 170 |
| 35HS38-1684 | 2 | 5.6 | 2 | 2.8 | 3.8 | 2000 | 24 | 38 | 4 | 200 |
| 35HS45-0804 | 2 | 6 | 0.8 | 7.5 | 12 | 3000 | 28 | 45 | 4 | 250 |

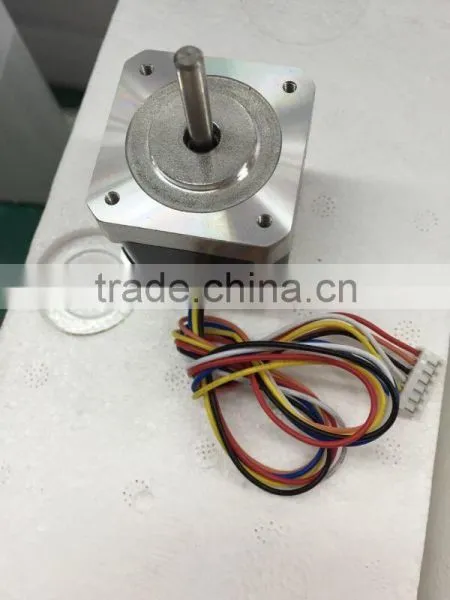

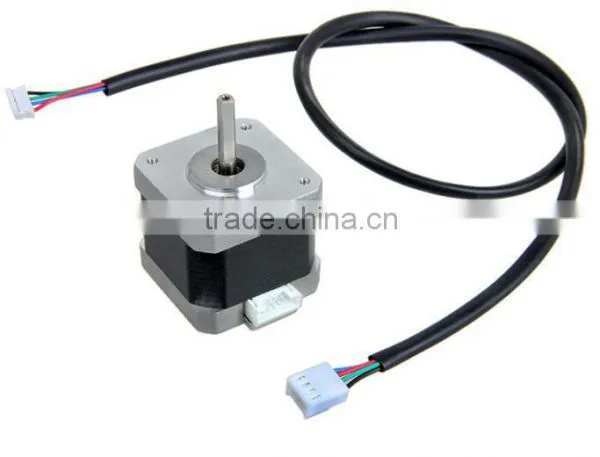

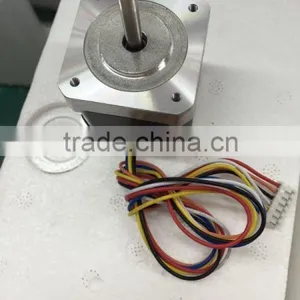

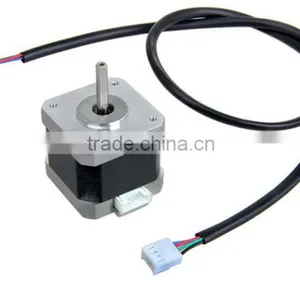

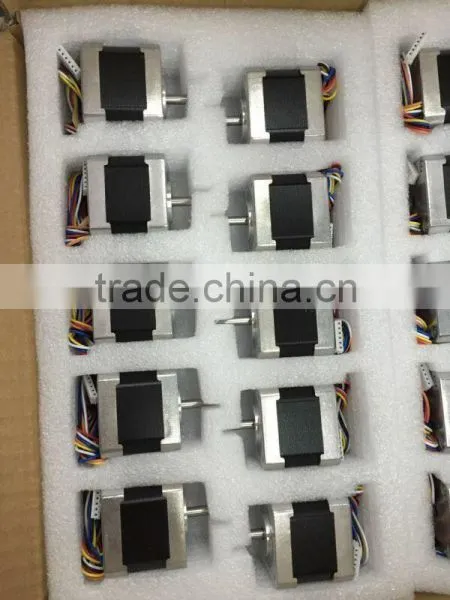

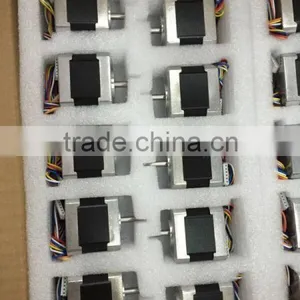

Nema14/35HS Hybrid Stepper motor Pictures:
Nema14/35HS Hybrid Stepper motor Usage:
Lunyee Industries has a wide range of stepper motor and related accessories applying to different kinds fields.
Lunyee Company Information:
Chengdu Lunyee Industries Development Co., Ltd. is a leading manufacturer for factory automation (FA) products! We are dedicated in power transmission and motion control solutions! We are a leading manufacturer for power transmission products like AC and DC(brush/brushless)gear motor, stepper motor,high precision planetary gearbox (spur/helical gear)for stepping motor etc.
Our quality:
One professional QC department is built up to inspect all the manufacture process according to international quality standard and our customers’ special requirement! Our factory and our sub-contractors are all qualified ISO9001, 3C, CE, UL, ROHS and other related certification! All products from Lunyee can enjoy a warranty from us!
Our price:
We promise to our customers for the same price, they can enjoy better quality from Lunyee, for the same quality, they can enjoy better service from Lunyee!
