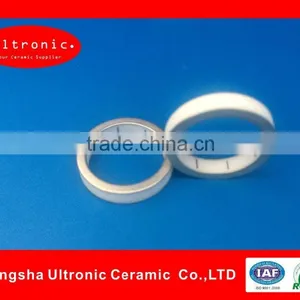

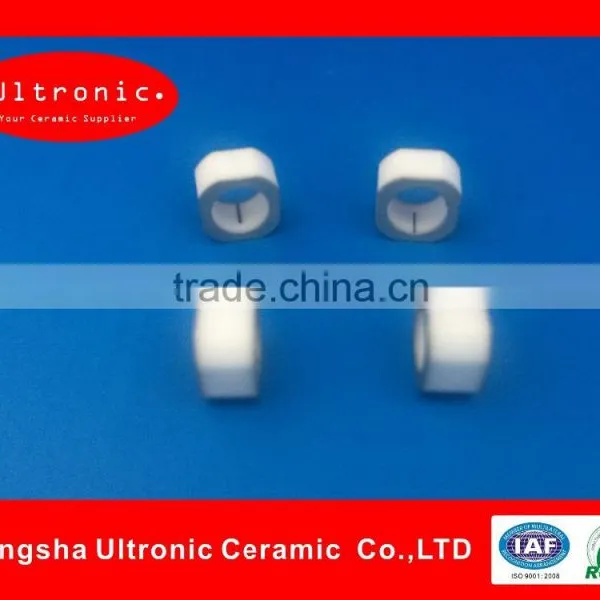

metalized ceramic tube Mo-Mn
1)metallized alumina ceramic,
2)Mo-Mn or W metallized,
3)Ni or Sn plating,
4)high dielectric strength & high voltage resistivity.
Our products produce excellent sealing and connecting performance with high mechanical strength.They can be welded to various king of hard soleder,such as gold,silver and copper.They are extensively used in gas electrical discharge devices,electronics ,power generators,telecom,metallurgy,machinery,aviation and military.
Materials Performance
|
Item |
Unit |
Performance |
|||||
Alumina ceramic |
steatite ceramic |
|||||||
90% |
92% |
95% |
96% |
|||||
|
Ceramic Body
|
Appearance |
colour |
- |
White,Ivory white,Brown,Black |
White,Off-white |
|||
|
Mechanical Characters |
Bulk Density |
g/cm3 |
≥3.6 |
≥3.65 |
≥3.7 |
≥3..75 |
2.7 |
|
|
Water Absorption |
% |
0 |
0 |
|||||
|
Flexural strength |
MPa |
280 |
300 |
310 |
320 |
150 |
||
|
(HV) Hardness |
GPa |
12 |
5.8 |
|||||
|
Thermal Characters |
Coefficient of linear thermal expansion |
20℃~800℃ ×10-6mm/℃ |
6.3~7.3 |
6.4~7.4 |
6.5~7.5 |
6.8~7.8 |
8.0 |
|
|
Thermal Conductivity |
W/(m.K) |
12 |
16 |
20 |
23 |
2 |
||
|
Electrical Characters |
(1MHz) Dielectric constant(1MHz) |
— |
9~10 |
9~10 |
9~10 |
10 |
7.5 |
|
|
Dielectric loss angle |
×10-4 |
≤6 |
≤5 |
≤4 |
≤3 |
8 |
||
|
Dielectric Strength |
KV/mm |
15 |
20 |
24 |
28 |
18 |
||
|
Metalized Ceramics |
Gas leakage coefficient |
Pa.m3/s |
≤10-8 |
- |
||||
|
Volume resistivity |
Ω.cm |
≥1015 |
- |
|||||
|
Combined strength |
MPa |
≥120 |
- |
|||||
|
Thickness of Metal |
μm |
≥20 |
- |
|||||
