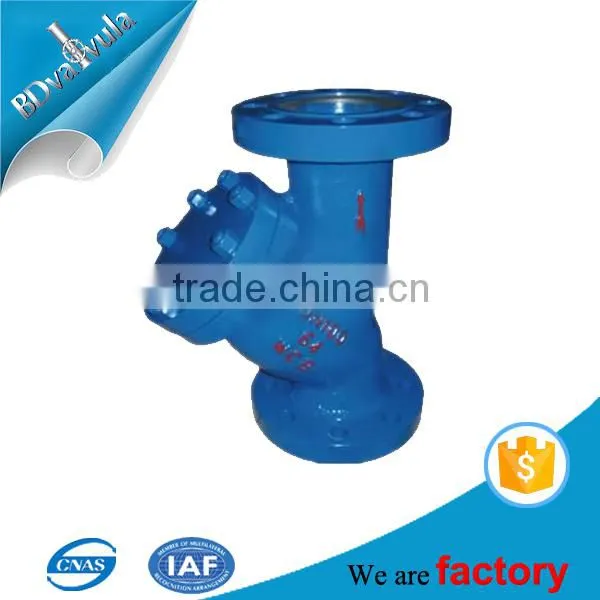

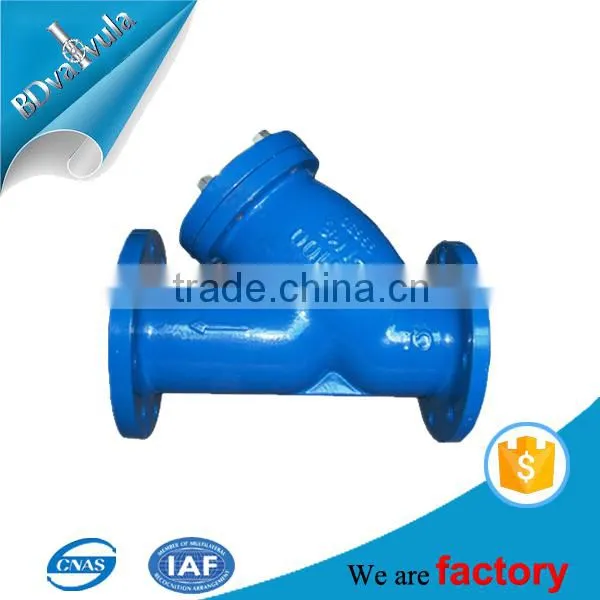

DN50 - DN300 PN16 DIN 3202 flange cast iron Y type strainer
The technique specification of DN50 - DN300 PN16 DIN 3202 flange cast iron Y type strainer
Strainer (Filter) | ||
Item |
Description |
Data |
1 |
2 |
3 |
|
Threaded water filter with connection equipment’s / Flange filter (strainer) with nuts, bolts and gaskets. Compliance with requirements
|
DIN 3202 |
A |
General data |
|
A 01 |
Working environment |
Drinking water |
A 02 |
Min. / max. temperature of transferred liquid |
+5 /+40 |
B |
Describing parameters |
|
B 01 |
diameter |
DN |
B 02 |
Nominal pressure |
PN |
C |
External appearance |
Color – blue |
D |
Possible options intended in design |
|
D 1-1 |
DN 20 PN 10 |
|
D 2-1 |
DN 50 PN 10 |
|
D 2-2 |
DN 50 PN 16 |
|
D 3-1 |
DN 80 PN 10 |
|
D 3-2 |
DN 80 PN 16 |
|
D 4-1 |
DN 100 PN 10 |
|
D 4-2 |
DN 100 PN 16 |
|
D 5-1 |
DN 150 PN 10 |
|
D 5-2 |
DN 150 PN 16 |
|
D 6-1 |
DN 200 PN 10 |
|
D 6-2 |
DN 200 PN 16 |
|
D 7-1 |
DN 250 PN 10 |
|
D 7-2 |
DN 250 PN 16 |
|
D 8-1 |
DN 300 PN 10 |
|
E |
Data about the material or implementation |
|
E 01 |
body and cover |
ductile iron/ Stainless Steel Bronze |
E 02 |
screen |
stainless steel |
E 03 |
flange |
Threaded connection / EN1092-2 |
E 04 |
connection type |
Threaded connection / DIN 3202 F1 |
E 05 |
type |
Y type |
E 06 |
drain sheet |
bronze / ductile iron |
E 07 |
installation |
horizontal |
F |
Spare parts for crash recovery during 2 years |
2 |
The Production process of DN50 - DN300 PN16 DIN 3202 flange cast iron Y type strainer
Except the DN50 - DN300 PN16 DIN 3202 flange cast iron Y type strainer, we can also supply the ANSI standard flanges, JIS standard flanges, GOST standard flange, and kinds of valves.
If you need the Non- standard products ,according to your drawings, we can produce the product, that you most satisfied.
Xushui Zhuningqian Valve Manufacturing Co.,Ltd located in the Dawangdian Industrial Park of Xushui, China. We have two branches, Baoding Valvula Imp&Exp Trading Co.,Ltd and Baoding Pingyilu Trading Co., Ltd, the space of core enterprise is 10,000 square meters, and we have more than 200 employees. We specially in the study, development, manufacturing and market.
Our main markets are South American , Spain, Italy, Russia , Middle East, Southeast Asia and other countries or areas.
OUR WORLD MARKETS
1, Can I get free samples?
A: Yes,we can provide you the free sample, but you need to bear their own delivery costs.
2, Can I request to change the form of packaging and transportation?
A:Yes,We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3, Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4,Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear
their own the cost.
5,Can you produce the products according to my own drawings?
A:Yes,we can produce the products according to your drawings that will be most satisfy you.
If you have any questions or you are interested in our products,please don't hesitate to cantact us!!!
