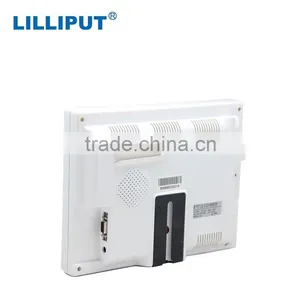

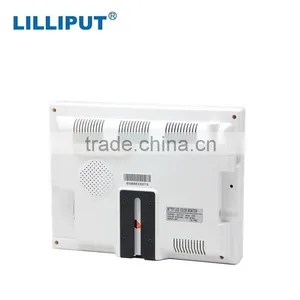

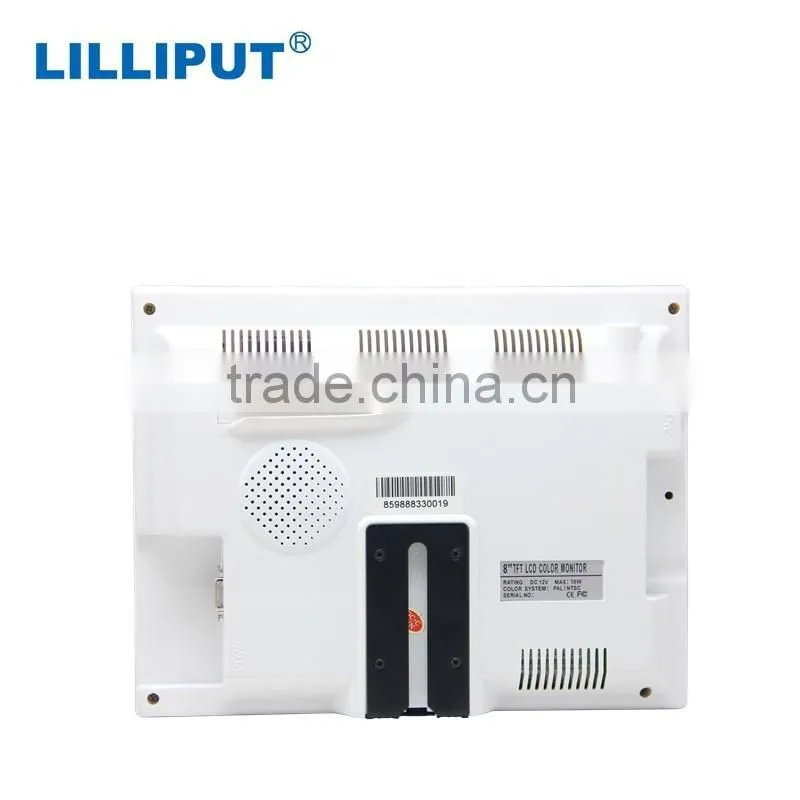

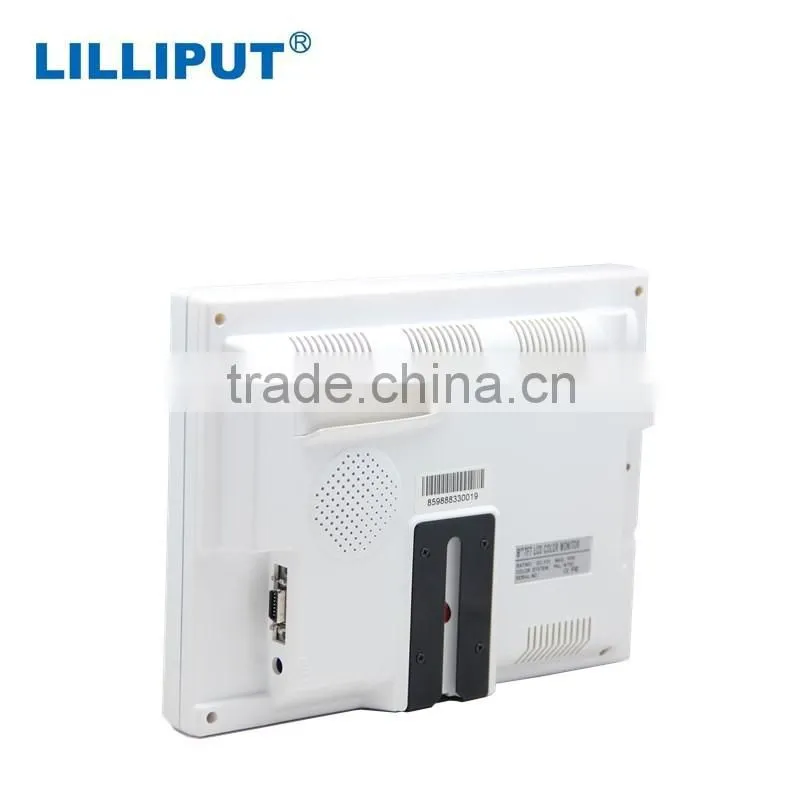

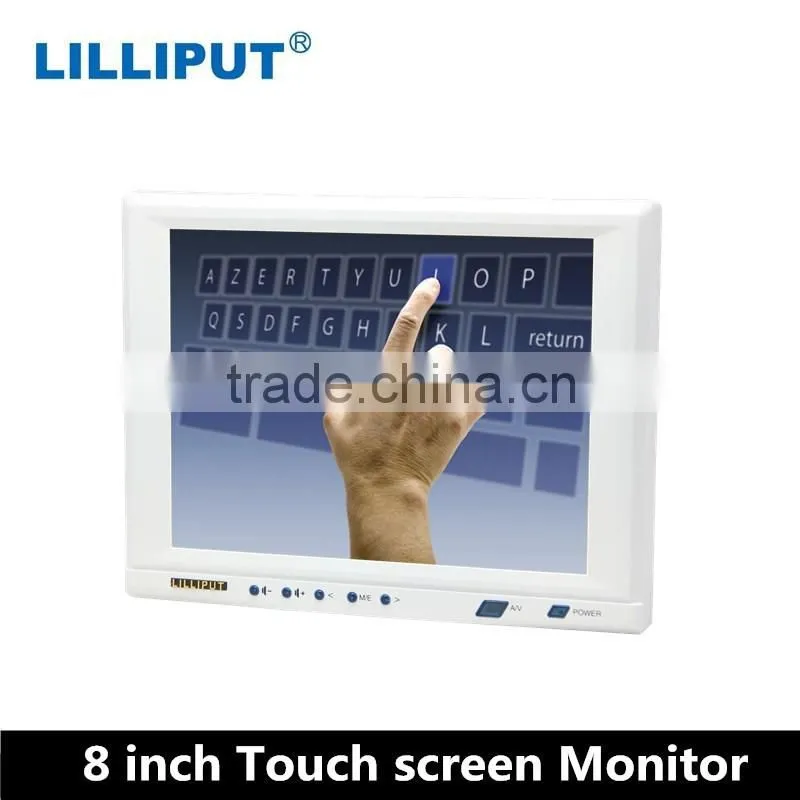

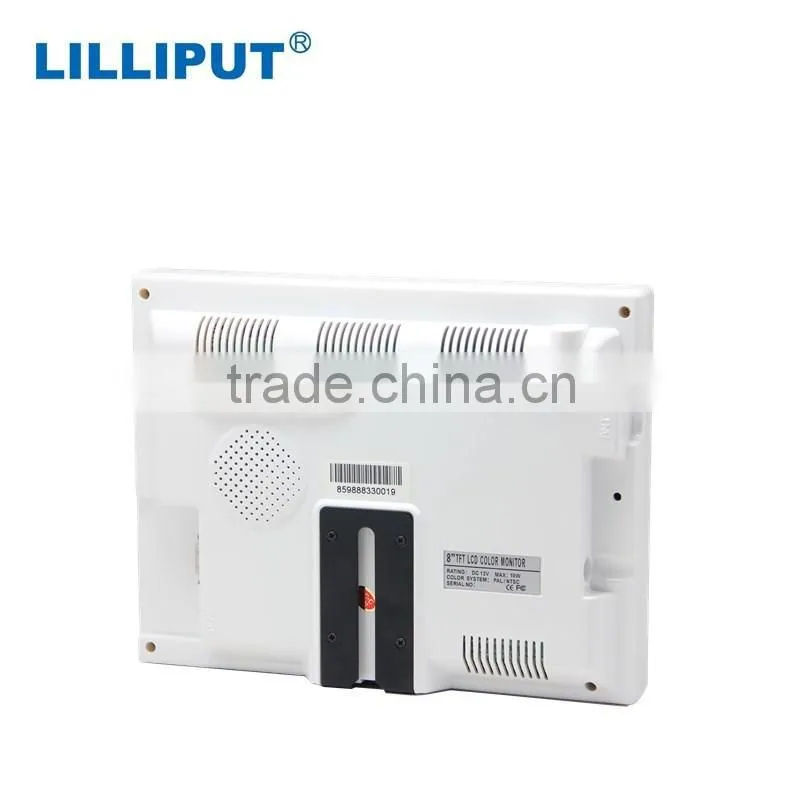

Lilliput Car VGA Monitor 8 inch LCD Touch Video Monitor
859-80NP/C/T with touch function.
859GL is a 8 inch TFT LCD monitor with touch screen.
859GL use a high quality new LCD Panel,with 800x600 resolution,
250cd/m2 high brightness and 140°/120°(H/V) wide angle,which
can display clear images.
It uses LED backlight,which has advantage like Energy-Saving,Long life and
environmental protection.
Abundant Interface
859GL-80NP/C/T also has VGA,Audio(1 RCA)&Video (2 RCA) input,which can support many devices like PC, DVR, Camera, DVD and so on.
Speaker Built-in
As the built-in speaker,if there is audio output it does not need to connect external speaker equipment
Specification:
| Display Screen | 8" LED (4:3) |
| Resolution | 800×600, suport up to 1920 x 1080 |
| Color System | PAL-4.43, NTSC-3.58 |
| Touch Panel | 4-wire resistive touch panel (5-wire for optional) |
| Contrast Ratio | 500:1 |
| Brightness | 250cd |
| Viewing Angle | 140°/120°(H/V) |
| Input Signal | AV1, AV2, VGA |
| Audio Output | ≥100mW |
| Input Voltage | DC 11-13V |
| Power Consumption | ≤9W |
| Dimension(LWD) | 203 × 156.5 × 35 mm |
| Weight | 505g |
Accessories:
VGA Cable: 1 Piece
SKS Cable: 1 Piece
DC 12V Home Power: 1 Piece
12V Car Power Adapter: 1 Piece
Standalone Bracket: 1 Piece
Remote Control: 1 Piece
Touch Pen: 1 Piece
Driver Disk: 1 Piece
Operation Manual: 1 Piece
