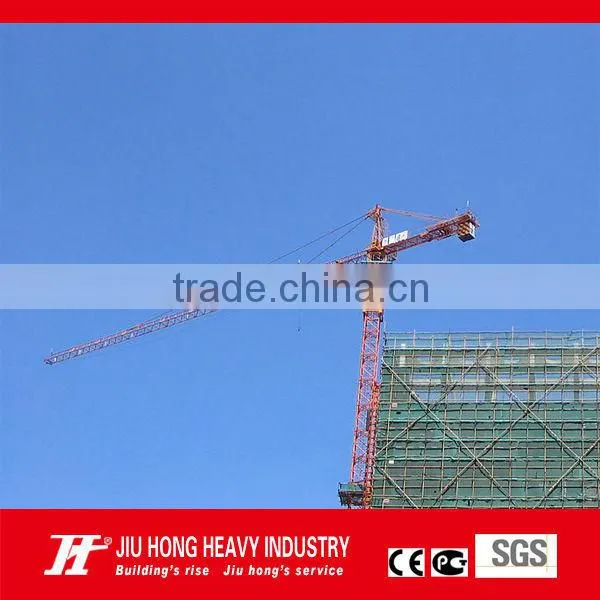

Help CenterChina Factory High Quality Construction Building Small Tower Crane QTZ5610 Manufacturers
Related Products
-
Max Radius 56m 40m Free Height 6 Tons Load 4708US$ 55,000 - 75,000MOQ: 1 Set -
Tower Cranes QTZ63 Tower Crane 6ton Telescopic Tower CraneUS$ 39,000 - 75,000MOQ: 1 Set
-
Manufacturer QTZ 63 Type Tower CraneUS$ 55,000 - 75,000MOQ: 1 Set
-
Jiuhong Tower Crane 5610US$ 55,000 - 75,000MOQ: 1 Set
-
Manufacturer of Construction Crane QTZ40---4808 Tower CraneUS$ 35,000 - 75,000MOQ: 1 Set
Specifications
6t Tower Crane1.With Hydraulic Self-raising Mechanism,
2.Variable-frequency Slewing Mechanism,
3.Safet
Construction Building Tower Crane Technical Parameters
Model |
QTZ63B(5610) |
QTZ63B(5013) |
Jib Length (M) |
56 |
50 |
Free Height (M) |
41 |
41 |
Max. Possible Height (M) |
161 |
161 |
Max. Load (T) |
6 |
6 |
Tip Load (T) |
1.0 |
1.3 |
Wall-attached Device for Max Height (sets) |
6 |
6 |
Main Material (mm) |
Standard Mast Section 135×135×10 (Square Steel Tube) |
Standard Mast Section 135×135×10 (Square Steel Tube) |
Mast Section Dimension (m) |
1.835×1.835 ×2.5 |
1.835×1.835 ×2.5 |
Hoisting Speed (a=2) (m/min) |
80/40/10 |
80/40/10 |
Min. Stable Falling Speed (m/min) |
5 |
5 |
Slewing Speed (r/min) |
0-0.62 |
0-0.62 |
Radius-changing Speed (m/min) |
40/20 |
40/20 |
Jacking-up Speed (m/min) |
0.6 |
0.6 |
Total Motor Power (kw) |
55.2 |
55.2 |
Power Supply |
380V/50HZ |
380V/50HZ |
Weight of Independent Structure (T) |
36.80 |
36.80 |
Counterweight (T) |
14.85 |
14.85 |
Base Form |
Embedded Type (Outrigger Stationary) |
Embedded Type (Outrigger Stationary) |
Number of Containers Needed for Shipment (Free Height) |
6 * 40HC containers |
6 * 40HC containers |
Outstanding Features:
The tower crane is a combination of advanced technologies of the present day. It is equipped with a hydraulic self-raising mechanism and a frequency-converting slewing mechanism.
The electric control system of the tower crane adopts the advanced “PLC + frequency converter” control mode of the present day,
which has realized the stepless speed regulation and greatly improves the reliability, maneuverability and stability of the control s
ystem and the work efficiency of the tower crane.
The tower crane is equipped with all kinds of reliable safety devices, such as hoisting height limiter, slewing range limiter and
multifunctional limiter to control the load moment, hoisting capacity and trolley traveling range. Its PLC (Programmable Logic
Controller) unit can diagnose the cause of breakdowns. Its Safety Monitoring System (also known as Black Box) displays
thedata of working radiuses, heights, moments and weights.
