China-made FTH Building Elevator (2000kg Capacity)

China-made FTH Building Elevator (2000kg Capacity) thumbnail-1
China-made FTH Building Elevator (2000kg Capacity) thumbnail-2
China-made FTH Building Elevator (2000kg Capacity) thumbnail-3
China-made FTH Building Elevator (2000kg Capacity) thumbnail-4
China-made FTH Building Elevator (2000kg Capacity) thumbnail-5
China-made FTH Building Elevator (2000kg Capacity) thumbnail-6
China-made FTH Building Elevator (2000kg Capacity) photo-1
China-made FTH Building Elevator (2000kg Capacity) photo-2
China-made FTH Building Elevator (2000kg Capacity) photo-3
China-made FTH Building Elevator (2000kg Capacity) photo-4
China-made FTH Building Elevator (2000kg Capacity) photo-5
China-made FTH Building Elevator (2000kg Capacity) photo-6
US$ 20,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Jinfei Tianhong
Model Number:
SC200/200
Contact Supplier Request Quote Chat Now
Beijing Jiuhong Heavy Industry Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name Jinfei Tianhong
Model Number SC200/200
Usage Residential Elevators
Drive Type AC, Other, AC, Rack & Pinion
Elevator Type Passenger Elevators

China-made FTH building elevator (2000kg capacity)

Product Description

  Name:   construction passenger elevator



 Model:                       Cage                         Capacity (ton) :



SC100  elevator (Single cage)                                 1 T

SC100/100  elevator (Double cage)                    1T+1T

SC150  elevator (Single cage)                               1.5T

SC150/150 elevator (Double cage)                   1.5T+1.5T

SC200  elevator (Single cage)                                2T

SC200/200  elevator (Double cage)                   2T+ 2T

  • Capacity – 1T, 1.5T, 2T, 3T & 4T
  • Cage
    • Single
    • Double
  • Cage Dimension
    • Standard - 3 X 1.4 X 2.4 Mtrs.
    • Customized upto 4.5 x 2.5 x 3.5 Mtrs.

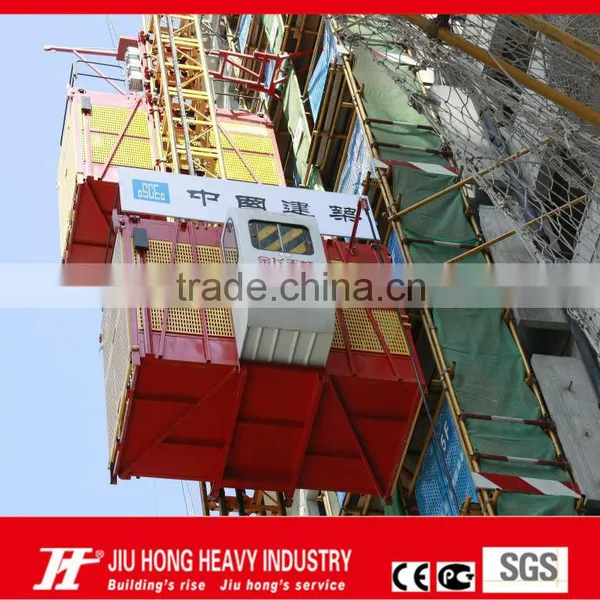

SC200/200 Building passenger elevator adopted computer aided design.

Comparing with traditional building hoists, it is attractive, light, easy to handle, secure, applicable, and popular.

Depending on special needs of regular or irregular sections, the lifting capacity can reach up to 1~2 tons, and the running speed can reach 28~38m/min.

Moreover, VVVF speed regulation and PLC enable 0~68 limitless speed, automatic layer selecting and leveling as required.

SC200/200 Building Hoist is excellent in technical performance, more secure in operating mechanism, and more compact in structure.

SC200/200 construction passenger elevator
China-made FTH building elevator (2000kg capacity)
Parameters of construction passenger elevator

Name

Unit

SC100

SC100/100

SC200

SC200/200

Rating loading capacity

Kg

1000

2×1000

2000

2×2000

Passenger number

Person

12

2×12

16

2×16

Rating rising rate

M/min

36

36

36

36

Max. promoting height

M

200

200

200

200

Motor power

KW

2×11

2×2×11

3×11

2×3×11

Voltage

V/ HZ

380/50

380/50

380/50

380/50

Cage size

M

3*1.3*2.5

3*1.3*2.5

3*1.5*2.5

3*1.5*2.5

650 mast section weight

Kg

128

150

128

150

650 mast section length

(painted)

M

0.65×0.65

×1.508

0.65×0.65

×1.508

0.65×0.65

×1.508

0.65×0.65

×1.508

Steeve rating rising weight

Kg

200

200

200

200

Containers for Shipment

pcs

1*40’HQ

1*40’HQ

1*40’HQ

1*40’HQ

We can make 30m,50m,60m,70m,72m to 90m.

Main parts as below:

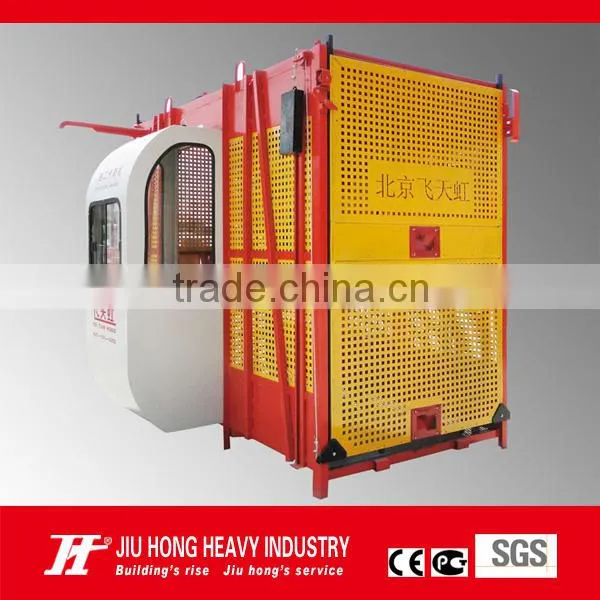

A:  Cage with wheelhouse

China-made FTH building elevator (2000kg capacity)

B:The information display system :

If the elevator don't work,you can see the rouble of elevator through the  system.

China-made FTH building elevator (2000kg capacity)

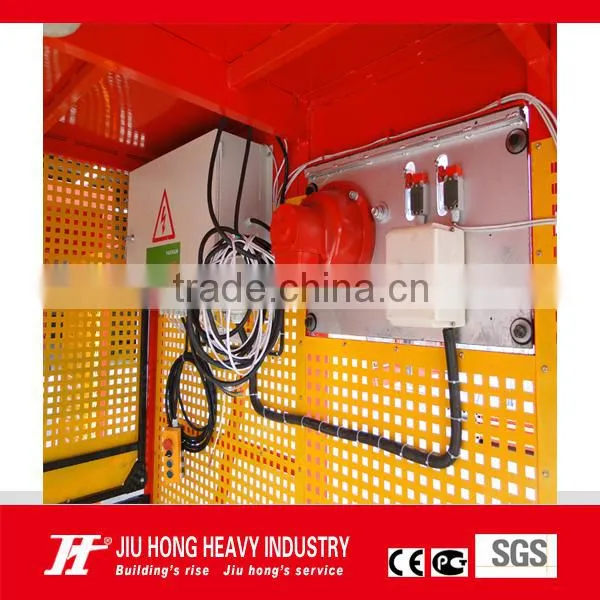

C:safety device in cage: against the elevator fall.

China-made FTH building elevator (2000kg capacity)

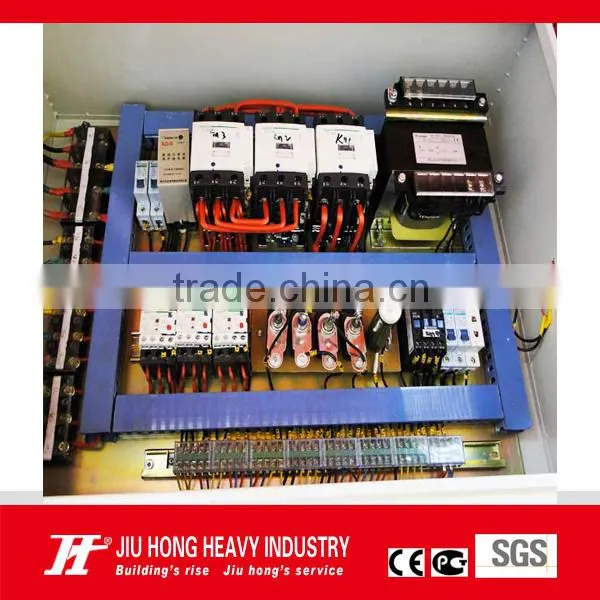

Breaker of high quality

China-made FTH building elevator (2000kg capacity)

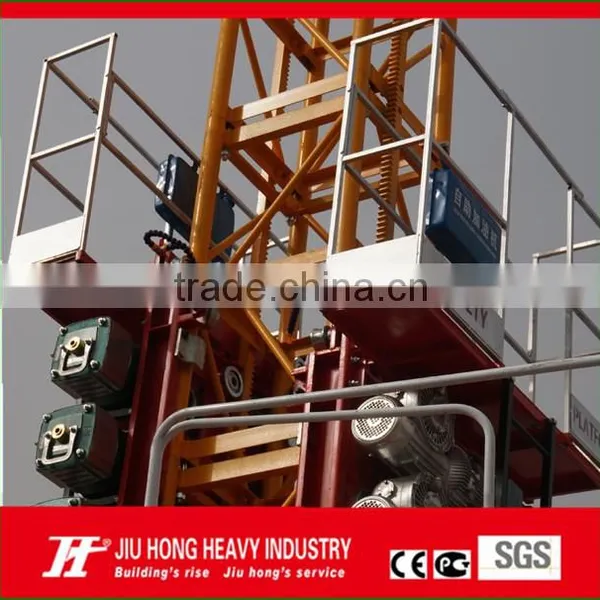

Wonderful power motor with  tanker:

China-made FTH building elevator (2000kg capacity)

China-made FTH building elevator (2000kg capacity)

Mast section with good material

China-made FTH building elevator (2000kg capacity)

China-made FTH building elevator (2000kg capacity)

Certification of CE,GOST,CCC and so on

China-made FTH building elevator (2000kg capacity)
