Specifications
1.CE,ISO,GOST ,qualifications2.loading weight:800Kg
3.Height :100m ,It could adjust
Why us?
1. special shape can be designed according to customers’ requirement
2. easy to install & operate
3. safe and efficient
4. reasonable price
5. good after-sale service
6. material variety: steel construction with powder coating or Aluminum Alloy
7. good quality: CE, Gost , ISO certificate approved
8. more models for choose as per different require of platform dimension, lifting height, capacity, building shape

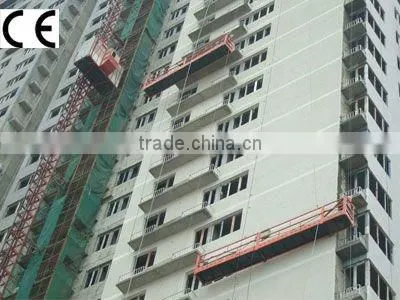

ZLP series suspension power Working Platform
belongs to electrical-driven climbing and decorating machinery, mainly used to decorate, maintain and clean the external walls of high-level multi-storey buildings and exterior construction such as cement coating, veneer, paints, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to the operating of big vessels and bridges dams etc.
Applying this product can release scaffold free, reduce the costruction cost and the efficiency will be greatly in creases. Mean while, the production is simple flexible, easy transfer, easy to operate, safe and relible.
Main Parameter for ZLP suspension power Working Platform :
| Model | ZLP500(5m) | ZLP630(6m) | ZLP800(7.5m) | ZLP1000(7.5m) | |
| Rated load | 500Kg | 630Kg | 800Kg | 1000Kg | |
| Lifting speed | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | |
| Platform Dimension L×W×H(mm) | 5000(2+3m)×720×1300 | 6000(1+2+3m)×720×1300 | 7500(2.5m*3)×720×1300 | 7500(3*2.5)×720×1300 | |
| Lifting Height | 100 m | 100 m | 100 m | 100 m | |
| Cable | 100 m | 100 m | 100 m | 100 m | |
| Steel rope (specially-made) | 8.3mm | 8.3mm | 9.1mm | 8.6mm | |
| Hoist | Power | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 2.2 KW*2 |
| Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Safety lock | Permission force of impact | 30KN | 30KN | 30KN | 30KN |
| Locking Cable Angle | 3°~8° | 3°~8° | 3°~8° | 3°~8° | |
| Suspension mechanism(Galvanized) | Front beam overhang | 1.3~.1.5m | 1.3~.1.5m | 1.3~1.5m | 1.3~.1.5m |
| Support adjustable height | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | |
| Counterweight | 800KG | 800KG | 1000kg | 1200KG | |
| 20’ft container | 10 sets | 9 sets | 8sets | 8 sets | |
| 40’ft container | 15 sets | 14 sets | 13sets | 13 sets | |
