Specifications
glass cleaning hanging basket1.A-alloy or steel
2.Adjustable platform
3.Warranty:1year,free part
glass cleaning hanging basket
Applications:
ZLP630 suspended working platform
ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorate, maintain and clean the external walls of high-level mutil-storey buildings and exterior construction such as cement coating, veneer, paints, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to the operating of big vessels and bridges, dams etc.
Specifications:
ZLP630 suspended working platform
Name |
Technical parameter |
|
Model |
ZLP630 |
|
Rated load |
630Kg |
|
Lifting speed |
8-10m/min |
|
Platform Dimension L×W×H(mm) |
6000(1+2+3m)×720×1300 |
|
Lifting Height |
100 m |
|
Cable |
100 m |
|
Steel rope (specially-made) |
8.3mm |
|
Hoist |
Power |
1.5KW*2 |
Voltage |
380V/50HZ |
|
Safety lock |
Permission force of impact |
30KN |
Locking Cable Angle |
3°~8° |
|
|
Suspension mechanism Galvanized |
Front beam overhang |
1.3~.1.5m |
Support adjustable height |
1.44~2.14m |
|
Counterweight |
800KG |
|
20’ft container |
9 sets |
|

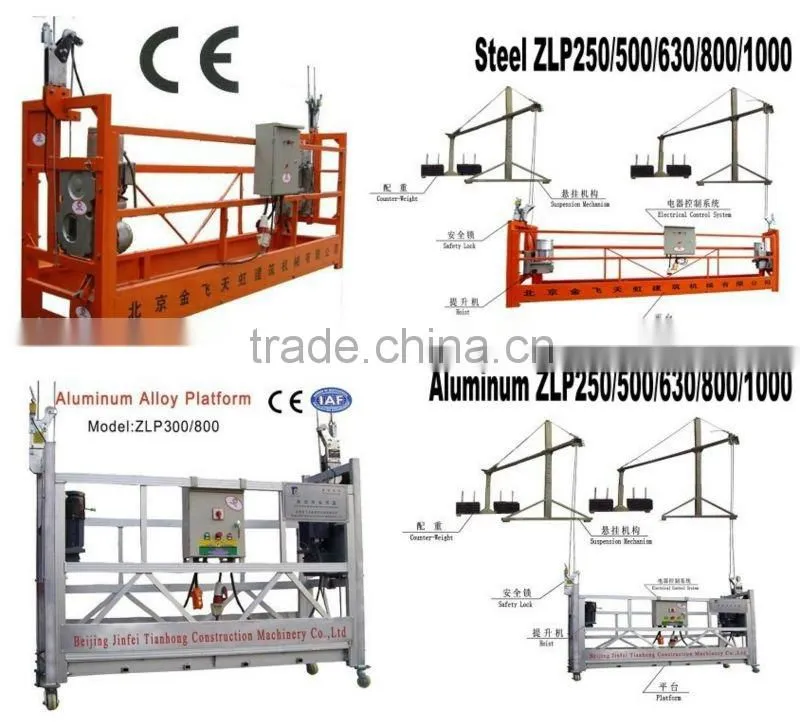

Structure for Suspended Cradle Platform:
It assembled by mudular plates, hoist and frame, safety lock, electrical control
box, wire rope, cable, safety rope and lock assembly, suspension mechanism, counter
weight, heavy hammer and caster wheel etc. Wall roller is optional.

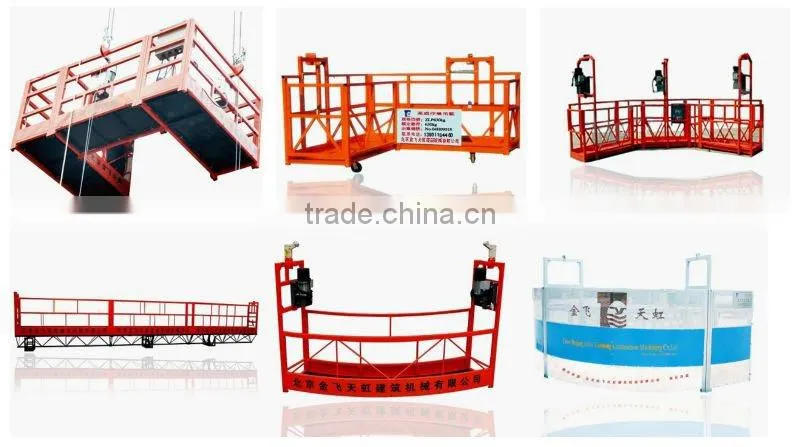

Different Cradle platform shape for special building:
Fan shape suspended platform;
Round shape suspended platform;
90 degree angle shape suspended platform;
Aluminum Alloy material suspended platform;
Hoist
Safety lock
Control Box

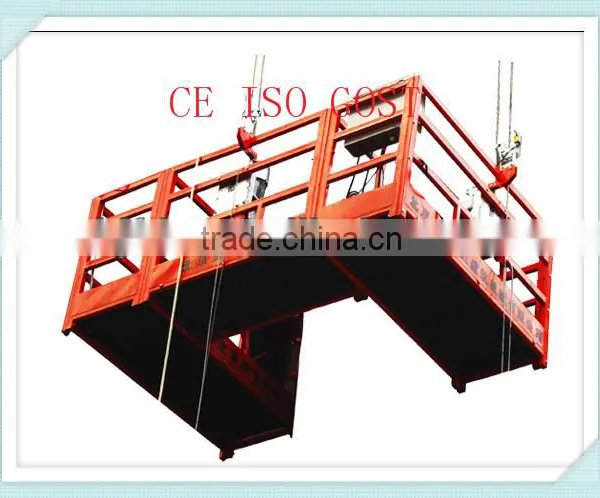

Picture of suspended platform:
Certificate :

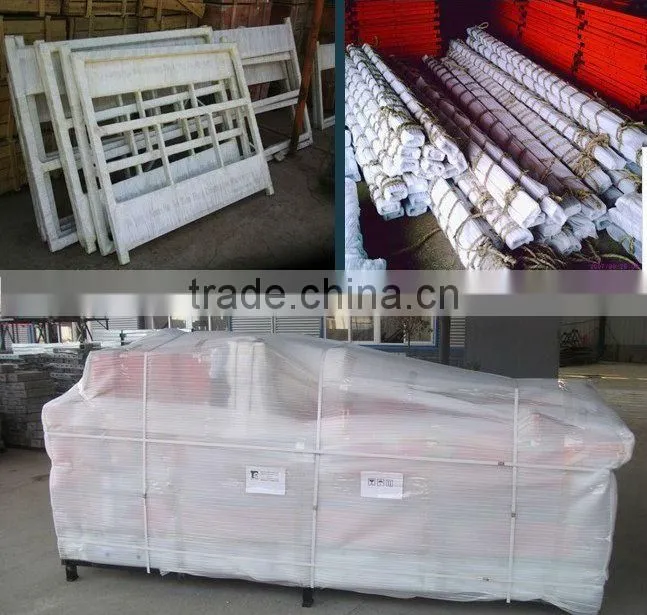

Packing:
