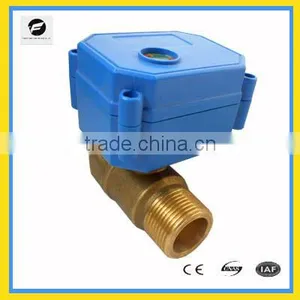

Help CenterCWX-15Q/N High Quality 2 Way Mini Control Motorized Ball Valve for Water Treatment,small Automatic Control Equipment,HAVC
Related Products
-
3-way L or T Type,CE and ISO Approval CWX Motorized Ball ValveNegotiableMOQ: 5 Pieces -
CTB-005 3 Way Electric Ball Valve Flange Type for Water TreatmentNegotiableMOQ: 2 Pieces
-
Water Filter,water Treatment System of CTF-010 Electric Ball Solenoid ValveNegotiableMOQ: 1 Piece
-
Electric Water Ball Valve CWX-15Q/N for Water Treatment,drinking Water,IC Card Water Meter,air-conditioningNegotiableMOQ: 2 Pieces
-
Electric Valve With Manual Function for Water Treatment,drinking Water,air-conditional,water MeterNegotiableMOQ: 2 Pieces
Detailed Product Description
Open/close:3 seconds.
Fail safe(auto-return) function,
The best alternative to the solenoid valves.Manual override option
Low voltage12Volt DC operation at very low current.
Return default positon when power off.
Zero current drain in default state
DC 12V low voltage motorized ball valve for solar heating system
Application:Solar thermal,under-floor,rain water,irrigation,plumbing service
3-way motorized ball valve in L or T type,CE and ISO approval.
2-way motorized ball valve(electric actuated ball valve) is also available now,
Size:1/2",3/4",1",11/4" 15mm,20mm,25mm,32mm
Material:Brass or Stainless
Working pressure:150psi,10bar,1Mpa
Medium Temperature:0~100 centigrade
Open/Close:3-5 seconds
IP65 enclosure
2~5 wires ,signal feedback
Seal:EPDM,PTFE,VITON,
Small&compact design and very light weight,very suitable for small equipment
Low current drain,much lower power consumption than standard three 3 zone motorized ball valve,
Best economic alternative to solenoid valves
Long servicing life:100000 times.
Application:Solar heating system,hot water heating and solar glycol loop),ideal for off-grid system.
Domestic water,
Irrigation system
Under-floor heating system
Low voltage plumbing service
Motorized 3 way ball valve,DC12V three port motorized ball valve,DC 12 voltage 3 port electric ball valve,
motorised ball valve CWX-15Q
1 size:1/4"-1" brass valve.
2 volt:3-6V,12V,24V,220V
3 presssure:1.0mpa
2-way/3-way electric operated Valve 1/4" to 1",IP65, with differnt wiring,3-6Vdc,ac/dc9-24V,220V, 1.0Mpa CE,ISO approved.
Technical parameters:
Size: 1/4 to 1 inches
Voltage: 3-6vDC,AC/DC9-24v,220V
Material: stainless steel (304, 316), brass
Open/close time:3sec
Working pressure: 1.0 mPa
Torque output: Q-1.5NM, N-2NM
Control mode:2,3,5 wires
End:BSP&NPT
Medium temperature: 0-90°C
Actuator rotation: 90 degree
Rotation direction: double acting
Low working current: <80mA
Working medium:water,air,gas.
Product life: 100,000 times
Special function:position indicator;quick open
Enclosure:IP65
Main export areas:Europe,Asia,North America, South America,Mid East,Oceania,Africa
Features:
1. Smart shape,perform reliably,brass gear,PPO parts,large output torque,long product life for 100,000 times.
2. Electrical limit and machinery limit design,accurate position,avoid gear with switch.
3. Multi-angle assembling,easy to install.
4. Float ball structure,no leakage,especially suitable for heavy pollution conditions.
5.Good substitution for solenoid or pneumatic valve.
6. High protection class,can be worked in moist conditions. IP65.
Situable for :
IC card meters,heat energy meters,air-warm valve.
HVAC and fire works.
3. Water equipment,auto-control watersystem,industrial mini-auto equipment, Small equipment for automatic control
4 Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.
5. Replacing solenoid valve, particularly when solenoid cannot work reliably,the circumstance pneumatic valve can not work.
6. Multiple voltage and control mode, applicable to a variety of occasions.
Other illustration:
Material of main parts:
Actuator: heat-resistant ABS
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings .
Body: brass or stainless steel
Ball: brass or stainless steel
Stem: brass or stainless steel
mini motorized valve, actuated valve, motor operated valve, motor actuated valve, automatic valve, control valve, shut off valve, actuator valve, electric operated valve
