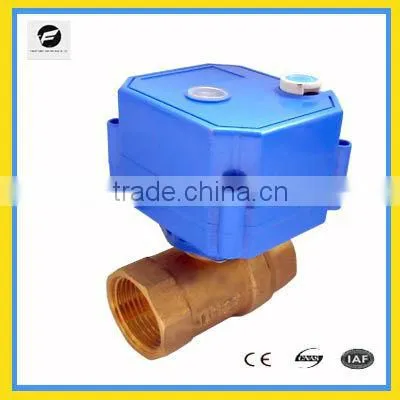

Help CenterMini 2 Way 20mm 3/4" Bsp Electric Actuator Valve CWX With Manual Operation
Related Products
-
CTB Series Motorized Valve Electric Actuator for Valve Control for Industrial Water TreatmentNegotiableMOQ: 1 Piece -
TF 3 Way Mini Electric Ball Valve CWX-1.0B for Water Meter,home Water,heating SystemNegotiableMOQ: 2 Pieces
-
2 Way Mini Motorized Ball Valve 12v for iC Card Water Meter,home Water,heating SystemNegotiableMOQ: 2 Pieces
-
Mini Electric Water Solenoid Valve CWX-60PUS$ 10 - 34MOQ: 2 Pieces
-
CWX-15Q/N 3 Way 3/4"(DN20) Electric Ball ValveNegotiableMOQ: 1 Piece
Specifications
2-way Electric Actuated Ball Valve , 1/2'to1", IP65, different wiring,5Vdc,12Vdc, ac/dc12V, ac/dc 24V, ac/dc 110-220V, 1.0Mpa
· Features:
o Mini dimension suits for small equipment
o Patented technology-floating seal structure
o Long service life 100,000 circles
o Low working current, only 60 to 80mA
o IP65 and F type are available
o Manual override function is safe and easy
· Applications:
o HVAC
o Water treatment
o Small equipment for automatic control
o Replacing solenoid valve, particularly when solenoid cannot work reliably
· Technical parameters:
o Size: 1/4 to 5/4 inches
o Material: stainless steel (304, 316), brass, PPO
o Voltage: 5, 12, 24,9-24, 110 to 220V AC/DC
o Working pressure: 1.0 mPa
o Max pressure:1.6mPa
o Actuator rotation: 90 degree
o Rotation direction: double acting
o Power: maximum 5W
o Manual override: available
· Material of main parts:
· Actuator: heat-resistant ABS
· Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
· Body: brass or stainless steel
· Ball: brass or stainless steel
· Stem: brass or stainless steel
mini motorised valve, actuated valve, motor operated valve, motor actuated valve, automatic valve, control valve, shut off valve, hydraulic valve, electric valve, electronic valve.
