PRO-120 arch panel roll forming machine or roof bending machine

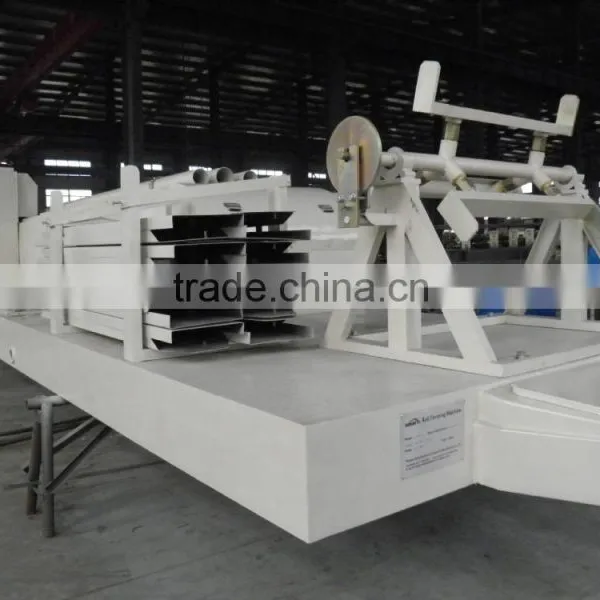

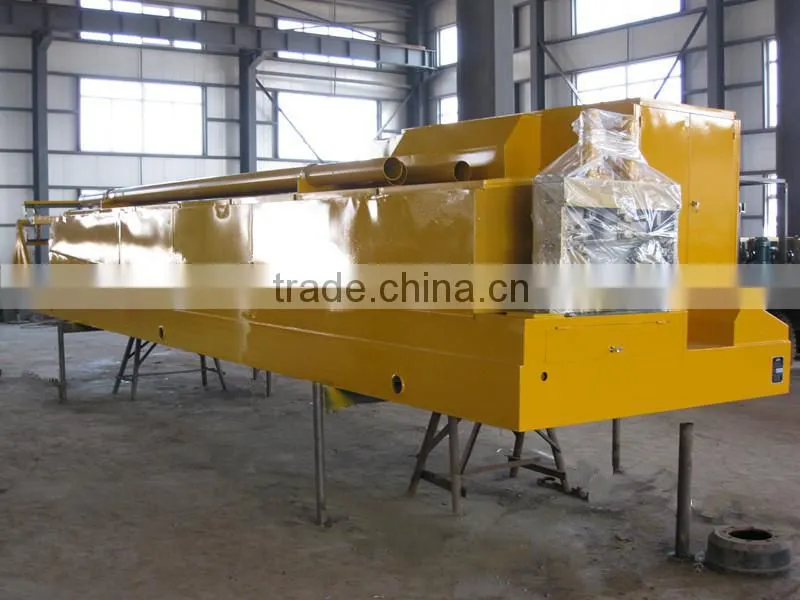

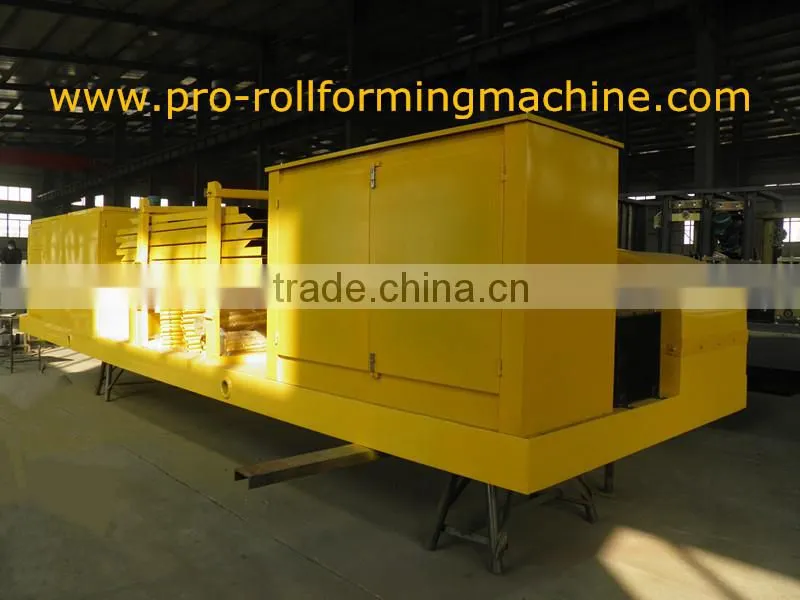

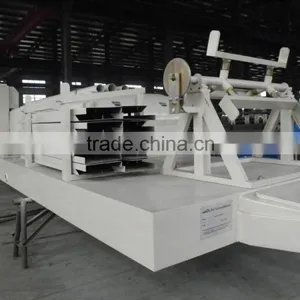

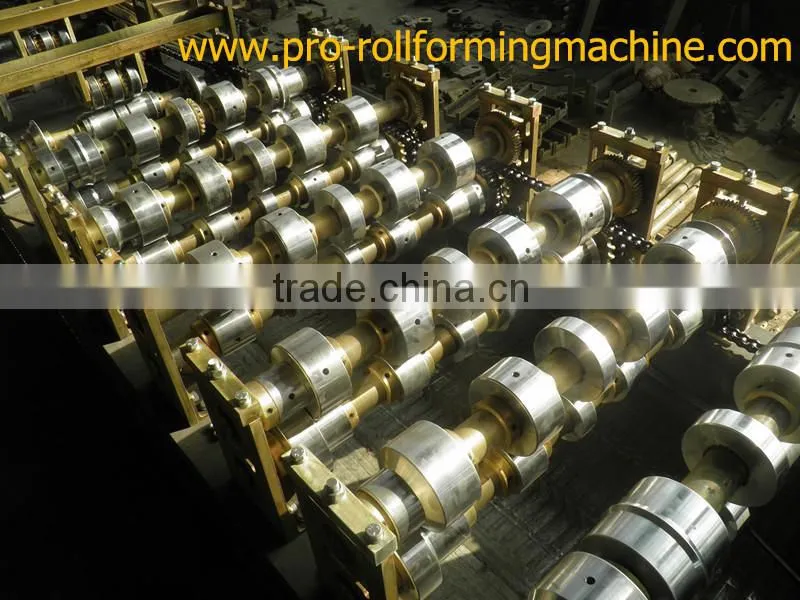

l Machine picture:
l Technical Parameter of PR-600-300
Dimension : 8900mm X 2100mm X 2300mm (Single axle & 4 tires)
Total Weight : About 8Ton
Bending Leaf : 10mm thickness, processed by CNC
Cutting blade : 12CrMoV material, Heat treatment
Cutting type : Mechanical Cutting
Forming type: Roll-formed and length-set cutting.
Total motor power : 15.2KW
Main Motor Power : 5.5KW
Bending Power : 3.0KW+1.5KW
Cutting Power : 3.0KW
Seaming Power: 1.1KW+1.1KW

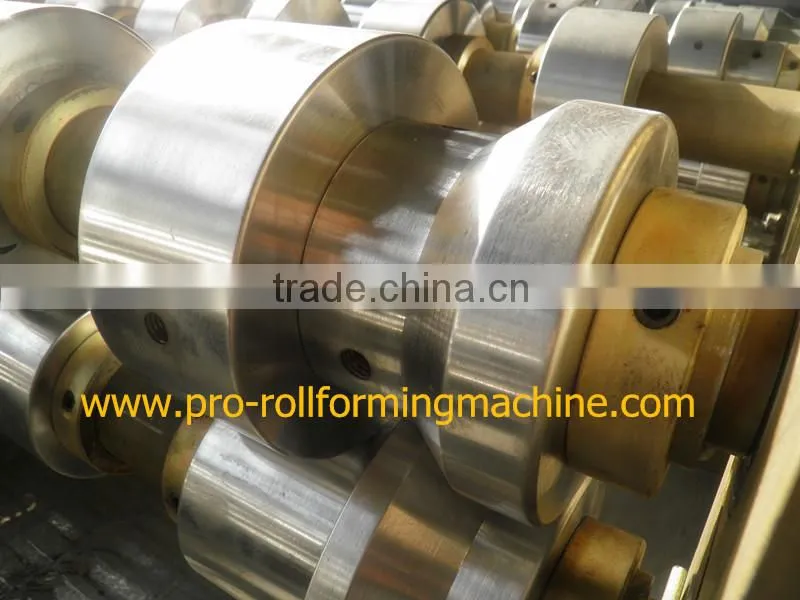

Roller Material : 45# high-quality steel, quenched HRC 55~65, hard chrome plating.
Shaft Material : 45# high-quality steel, galvanized
Bearing : Made in Harbin
Stand of molding : 13+1
Rolling material: Width : Feeding width :600mm
Effective width : 300mm
Using rate : 50%
Thickness : 0.6-1.5mm
Working Speed : Forming Part : 15m/min
Bending Part: 13m/min
Seaming : 16m/min
Suitable width : 6~24m
De-coiler : Inner-diameter of coil : 450mm ~ 650mm,
Max width of coil : 600mm ~ 620mm Load : 10Ton

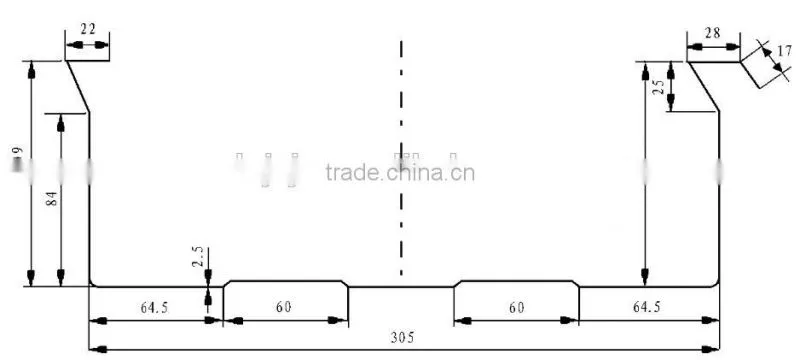

l Design drawing

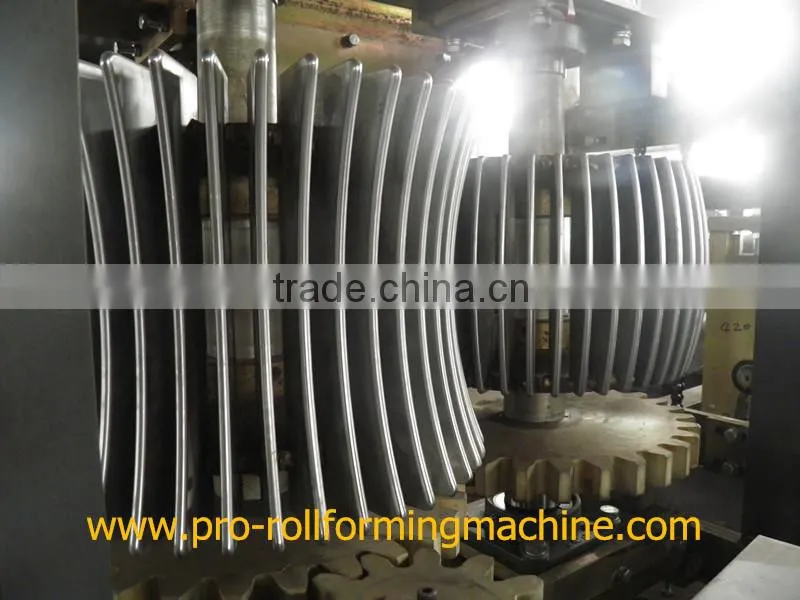

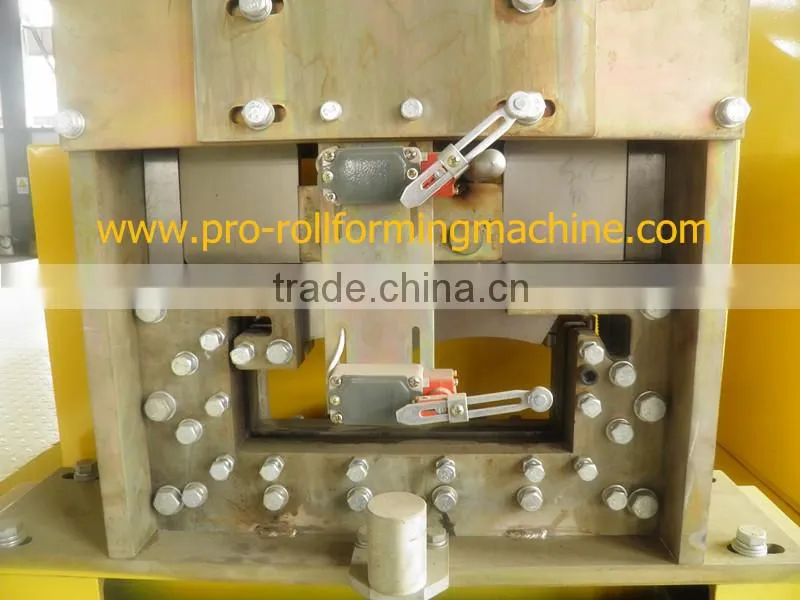

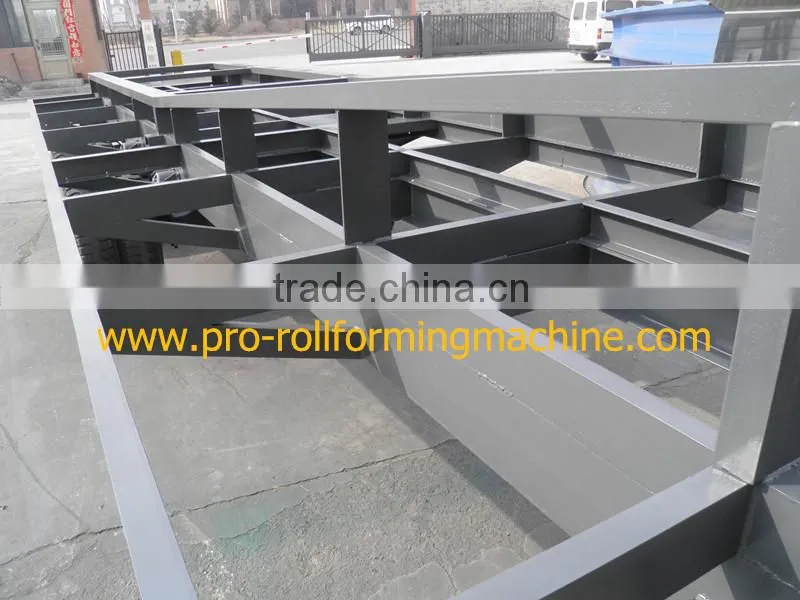

- Picture of detail

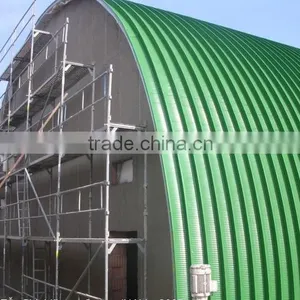

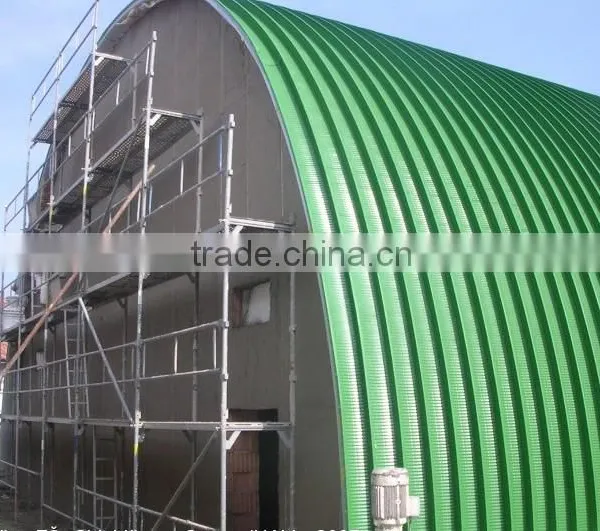

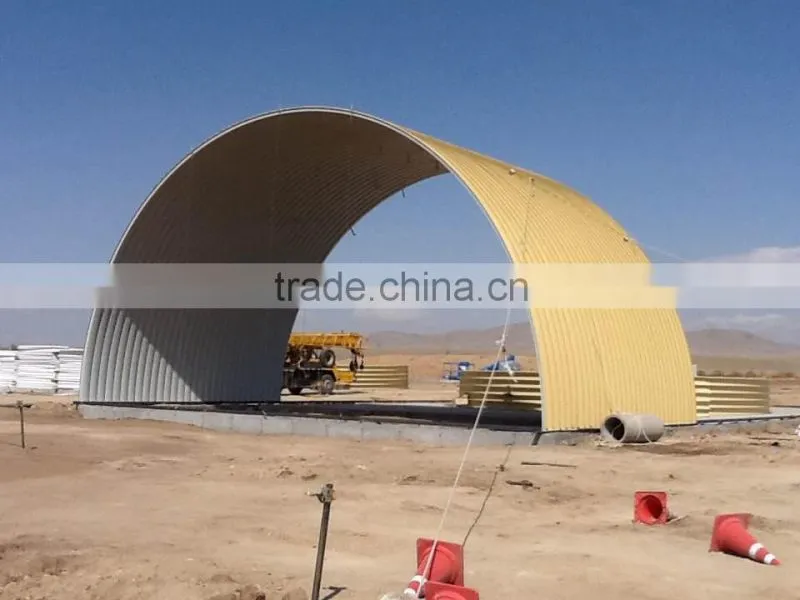

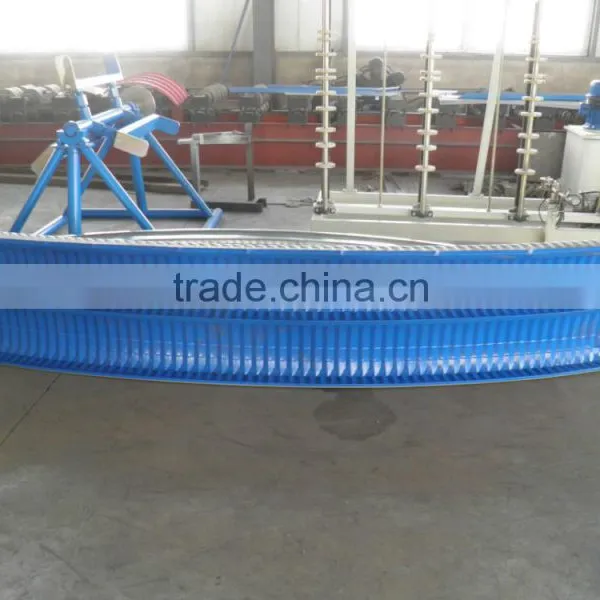

- Picture of project
- Model list
|
Model
|
Feeding width (mm) |
Effective width (mm) |
Use ratio |
Rolling thickness (mm) |
Capable width (m) |
Suitable width (m) |
PR-600-305 |
600 |
305 |
50.8% |
0.6-1.5 |
4-28 |
4.8-22 |
PR-600-300 |
600 |
300 |
50% |
0.6-1.5 |
4-30 |
4.8-24 |
PR-914-400 |
914 |
400 |
43.7% |
0.8-1.5 |
4-40 |
12-25 |
PR-914-610 |
914 |
610 |
66.7% |
0.8-1.5 |
4-38 |
6-32 |
PR-914-650 |
914 |
650 |
71.1% |
0.8-1.5 |
4-26 |
6-30 |
PR-914-700 |
914 |
700 |
76.5% |
0.8-1.5 |
4-22 |
6-22 |
PR-914-750 |
914 |
750 |
82% |
0.8-1.5 |
4-14 |
6-20 |
PR-1000-610 |
1000 |
610 |
61% |
0.9-1.5 |
5-42 |
10-32 |
PR-1000-680 |
1000 |
680 |
68% |
0.9-1.5 |
5-38 |
10-30 |
PR-1000-700 |
1000 |
700 |
70% |
0.9-1.5 |
5-30 |
10-20 |
PR-1000-750 |
1000 |
750 |
75% |
0.9-1.5 |
5-24 |
10-18 |
PR-1000-800 |
1000 |
800 |
80% |
0.9-1.5 |
5-18 |
10-16 |
PR-1200-800 |
1200 |
800 |
66.7% |
1.2-1.5 |
6-42 |
7.5-35 |
PR-1220-800 |
1220 |
800 |
65.5% |
1.2-1.5 |
6-45 |
7.5-35 |
PR-1250-800 |
1250 |
800 |
64% |
1.2-1.5 |
6-50 |
7.5-35 |

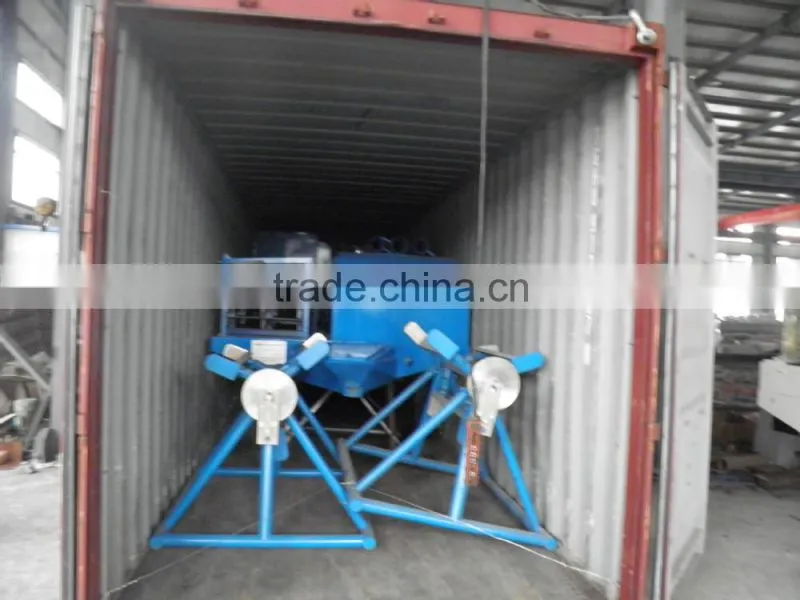

- Picture of loading
- Picture of after-sell service

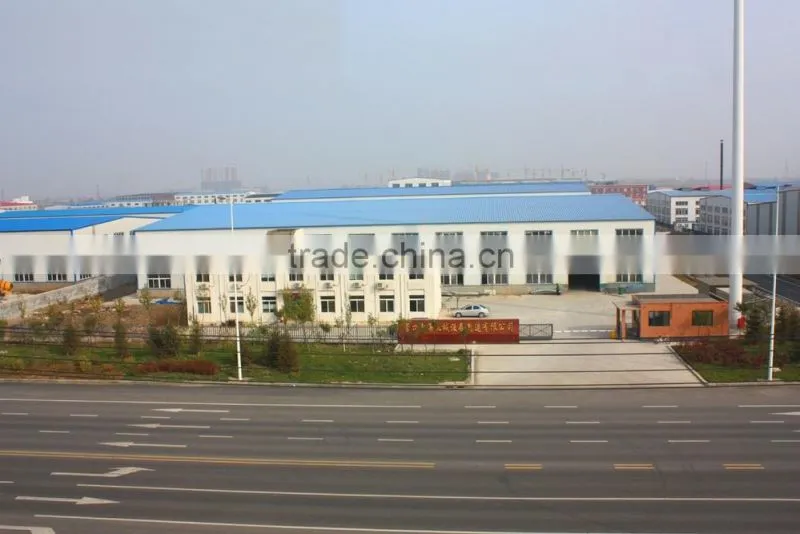

Yingkou Professional Roll Forming Machine Co., Ltd.is a professional manufacture of roll forming machine. We can produce many kinds of different models equipments: single axle, double axles, three axles, floor type, whole hydraulic type etc. PLC, servo motor and generator provide software support. We can instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied. Clients who purchase our equipments can create largest profit space.
Our arch sheet forming machine can directly by produced on worksite, effectively lowering the cost. The project is widely used in large-scale and mid-scale industrial construction, such as factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre and so on.
