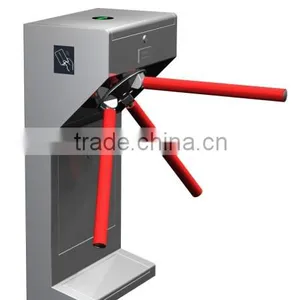

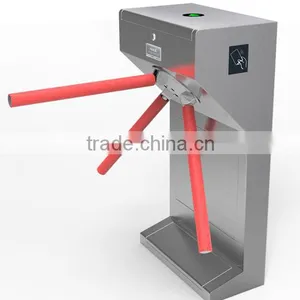

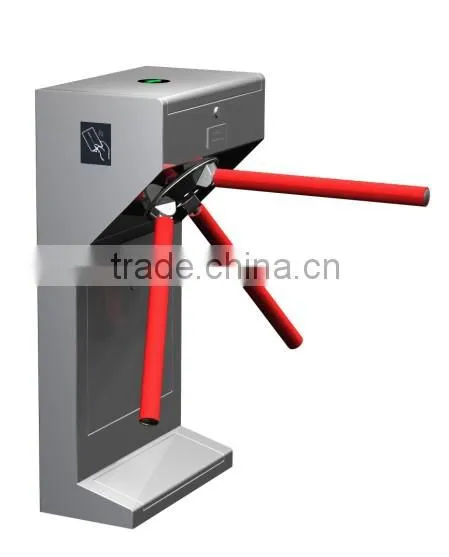

Help CenterPEDESTRIAN TURNSTILE WITH TRIPOD BARRIER FOR METRO STATION BUILDING ACCESS
Related Products
Product Attribute
Model |
FJC-Z3246 |
Item |
Mechanical Tripod turnstile |
Power consumption |
50W |
Housing Size |
500x280x950mm |
Housing material |
1.5--2mm, #304 Stainless Steel, Matt finish |
Channel width |
550--600mm |
Arm length |
500mm |
Arm turning angle |
120° |
Pass speed |
25 persons/min. |
Power supply |
220Vac 50Hz or 110Vac 60Hz |
Input signal optional |
DC12V level signal or DC12V pulse signal |
Communication interface |
RS485 |
Arm drop while power off |
Yes |
Working temperature |
-30°C~+70°C |
Working environments |
Indoor, outdoor |
Relative humidity |
≤95% coagulation free |
MCBF |
2,000,000 cycles |
Warranty |
1 year |
Outside packing |
Plywood box 620x400x1120 mm mm |
Pieces per box |
1 pcs / box |
Gross weight |
75KG |

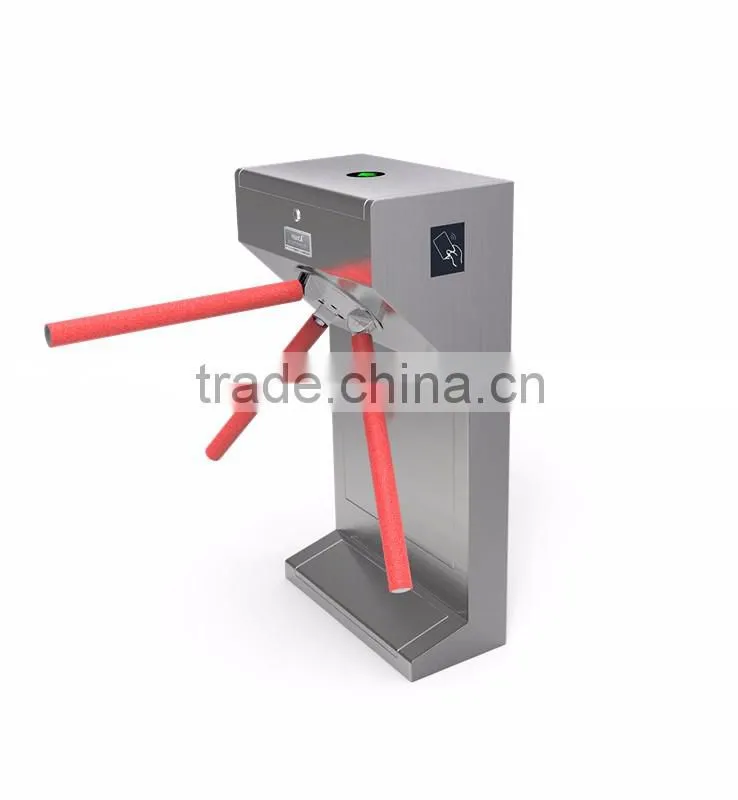

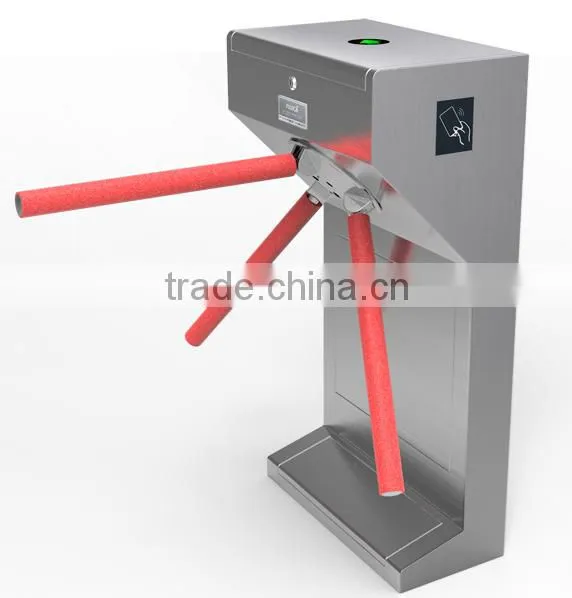

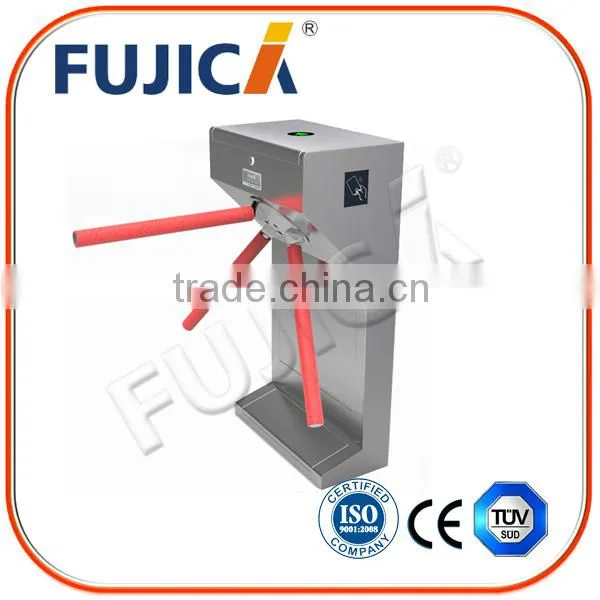

Product Display
Product Details
Fujica pedestrian control tripod turnstile, can be easily to integrate with other read/write devices and systems, can fulfill functions like entrance control, time attendance, pedestrian volume control etc. It is widely used for applications like stadium, apartment, gym, museum, station, library and factory etc.
- 1. Provide normally open / normally close to satisfy management request.
- 2. Compatible with RF card readers, bar code readers, biometric readers, push button...
- 3. Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.
- 4. Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc.
- 5. Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the turnstile opened. The passing time is adjustable.
- 6. Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer
- 7. (Optional) Support arm drop while power failure.
- 8. (Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly (N<=16)
- 9. One direction or bi-direction is optional.
Advantages
l Matt finished housing surface, dustproof and rainproof design for outdoor use.
l Highly integrated mechanical module, 100% heavy duty operation.
l Drop arm when power off, for emergency use.
l Compatible with other access control system.
l Convenient installation and maintenance.
Application Areas
l Government
l Banking
l Education
l Office building
l Gym/Stadium
l Factory
FAQ
1. Can we use our access control system?
Yes, equipped with international interface, can be easily integrated with other recognition devices.
2. If we buy your products, can you train us?
Yes, we can provide training free of charge. You can send your engineers to us, we will train them in our factory.
3. Can you make it bi-directional? Any extra cost?
One direction or bi-direction is available, no extra cost.
4. Can it use for outdoor?
Yes, can be used for outdoor and indoor.
5. What's you warranty?
We provide one year warranty. After that, we can supply chargeable spare parts.
Packaging & Shipping
Size: 620x400x1120 mm mm
Gross Weight: 75KG
Package: Export packing, plywood box.

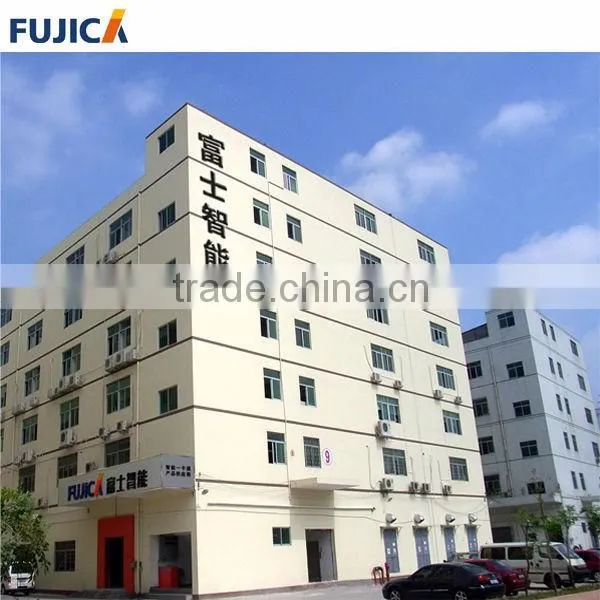

Company Profile
Established in 2004, Fujica is dedicated in developing and producing car parking system, pedestrian gate system and door access control system, products including barrier gates, turnstiles, flap barriers, swing gates, etc.
Our products are competitive in design, craftsmanship, quality and cost performance. After a decade of efforts in intelligent system applications, we have broken the traditional rules to achieve revolution in hi-tech intelligentized system applications by using new concept which turns technology into fashion life. Our company is ISO 9001 approved and products are CE certified. We are exporting to more than 60 countries, and exhibiting in some famous security shows all over the world, such as Intersec, Secutech, IFSEC.
FUJICA is awarded as:
l Top 10 Chinese Security Brands (2008)
l National Hi-tech Enterprise (2012)
l Shenzhen Top Brand (2011)
We have totally 500 staff members, including a very strong R&D team with 50 engineers and technicians. They are always ready to meet your particular requests of productivity and OEM/ODM, to supply standardized products with success specific and humanized design.
Certificate
