Home > Security & Protection > Access Control System > Access Controller > ce Approved Security Gate for Office Building ,Bus Station, Parks With LED Display

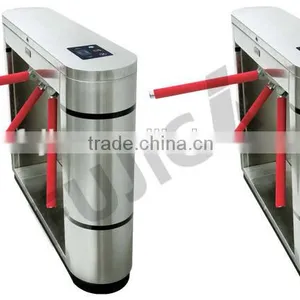

ce Approved Security Gate for Office Building ,Bus Station, Parks With LED Display

Name: ce Approved Security Gate for Office Building ,Bus Station, Parks With LED Display
Brand: FUJICA
SKU: 117123199

ce Approved Security Gate for Office Building ,Bus Station, Parks With LED Display thumbnail-1

ce Approved Security Gate for Office Building ,Bus Station, Parks With LED Display thumbnail-2

ce Approved Security Gate for Office Building ,Bus Station, Parks With LED Display thumbnail-3

ce Approved Security Gate for Office Building ,Bus Station, Parks With LED Display thumbnail-4

ce Approved Security Gate for Office Building ,Bus Station, Parks With LED Display thumbnail-5

ce Approved Security Gate for Office Building ,Bus Station, Parks With LED Display photo-1

ce Approved Security Gate for Office Building ,Bus Station, Parks With LED Display photo-2

ce Approved Security Gate for Office Building ,Bus Station, Parks With LED Display photo-3

ce Approved Security Gate for Office Building ,Bus Station, Parks With LED Display photo-4

ce Approved Security Gate for Office Building ,Bus Station, Parks With LED Display photo-5

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

FUJICA

Model Number:

FJC-Z3328

Contact Supplier Request Quote Chat Now

Shenzhen Fujica Intelligentized System Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name FUJICA

Model Number FJC-Z3328

CE approved security gate for office Building ,Bus Station, Parks with LED Display

Product Description

Parameters:

Power consumption	50W

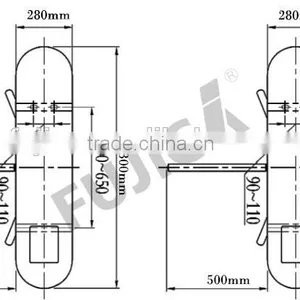

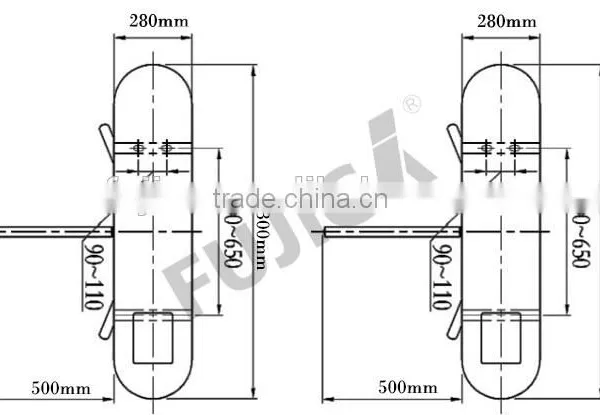

Housing Size	1200280950 mm
Housing material	1.5--2mm, 304# stainless steel, corrosion resistant
Channel width	550--600mm
Pass speed	25 persons/min.
Communication Interface	RS485
Input signal optional	DC12V level signal or DC12V pulse signal
railing-off against power off	Yes
Working temperature	minus 30°C to 70 °C
Working environments	indoor,outdoor
Relative humidity	≤95% coagulation free
MCBF	2,000,000 cycles

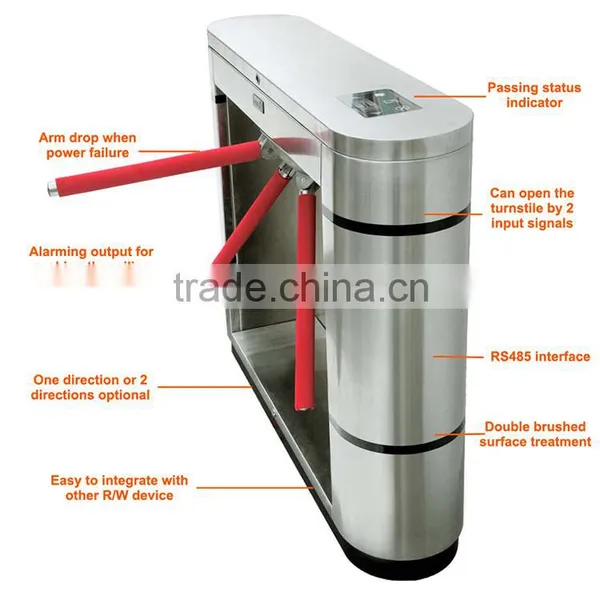

1. Can open the turnstile by two input signals (signals can be input by access controller, button
    or other equipments)
2. Direction guide function, when the turnstile is ready to read card, the yellow light in the
    middle will turn one; after reading card and ready for passing, the upper blue light will turn
    on; if try to push the railing without permission, the red light will turn on
3. Single direction or double direction optional
4. Railing will be off when power off
5. Counting function, if read the card for N times, N persons can pass before the railing close,
    N<=8(optional function)
6. Voice prompt and display screen available (optional)
7. External counter can be connected to count number of passed people (optional)
8. RS485communication, PC command through serial port is allowed (optional)
9. Alarming output for pushing the railing without permission(optional)

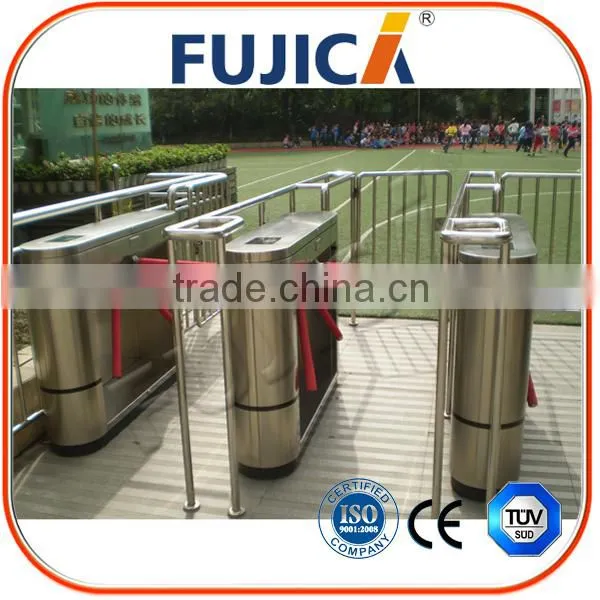

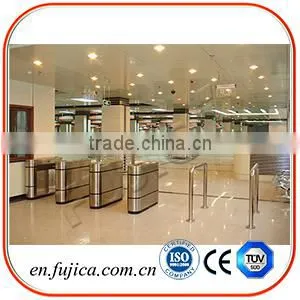

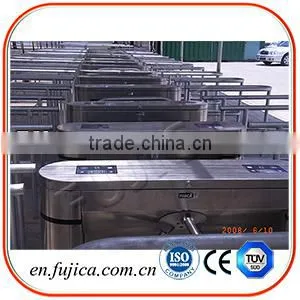

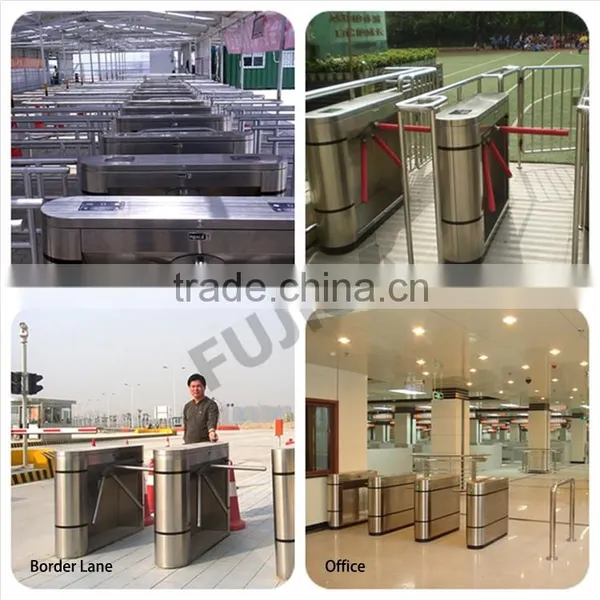

Application:

Packaging & Shipping

Model No.	EQ Size (cm)	Wooden case size(cm)	CBM(m³)	NW(kg)	GW(kg)
FJC-Z3328	*1202895*	*13243110*	0.54	66	101

Wooden Case

Company Information

FUJICA System Co., Ltd.

Established in 2004, Fujica is dedicated in developing and producing car parking system, pedestrian gate system and door access control system, products including barrier gates, turnstiles, flap barriers, swing gates, etc.

Our products are competitive in design, craftsmanship, quality and cost performance. After a decade of efforts in intelligent system applications, we have broken the traditional rules to achieve revolution in hi-tech intelligentized system applications by using new concept which turns technology into fashion life. Our company is ISO 9001 approved and products are CE certified. We are exporting to more than 60 countries, and exhibiting in some famous security shows all over the world, such as Intersec, Secutech, IFSEC.

Production Capacity
Product Name	Monthly Capacity	Anual Capacity
Flap barrier	600sets / month	7,000 sets
Swing barrier	600 sets / month	7,000 sets
Turnstile	600 sets / month	7,000 sets
Parking barrier gate	800 sets / month	10,000 sets

FUJICA is awarded as:

l Top 10 Chinese Security Brands (2008)

l National Hi-tech Enterprise (2012)

l Shenzhen Top Brand (2011)

We have totally 500 staff members, including a very strong R&D team with 50 engineers and technicians. They are always ready to meet your particular requests of productivity and OEM/ODM, to supply standardized products with success specific and humanized design.
